Help CenterPorcheson Computer Controller PS660AM for Plastic Injection Moulding Machinery With 7 TFT Display
Related Products
-
Techmation AK668 Control System (controller) Computer for Haitian Injection Molding MachineUS$ 1 - 999MOQ: 1 Piece -
Techmation TECH2h Control System /controller for Injection Molding MachineUS$ 1 - 2,000MOQ: 1 Set
-
Techmation TECH1m3 / TECHHYBm3 / AK628m3 CPU Board /controller IO BOARD for Injection Molding MachineUS$ 1 - 2,000MOQ: 1 Set
-
PS660AM +KC118 PORCHESON Control System for Plastic Molding MachineUS$ 443 - 500MOQ: 1 Set
-
PS660AM +TB118 PORCHESON Control System for Injection Molding MachineUS$ 443 - 500MOQ: 1 Set

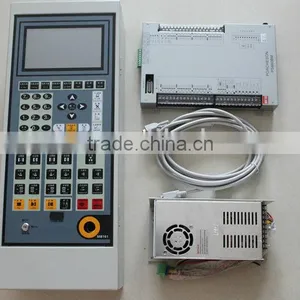

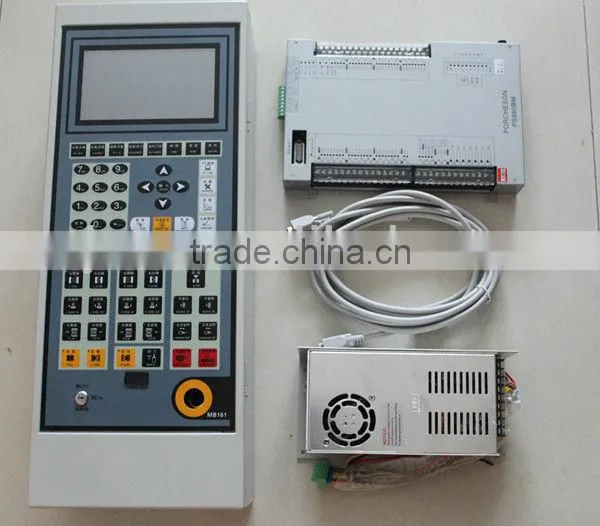

Host computer( I/O board), Keyboard( operation panel) , Power supply, Motor Electic-heating board,Message cable, user manual

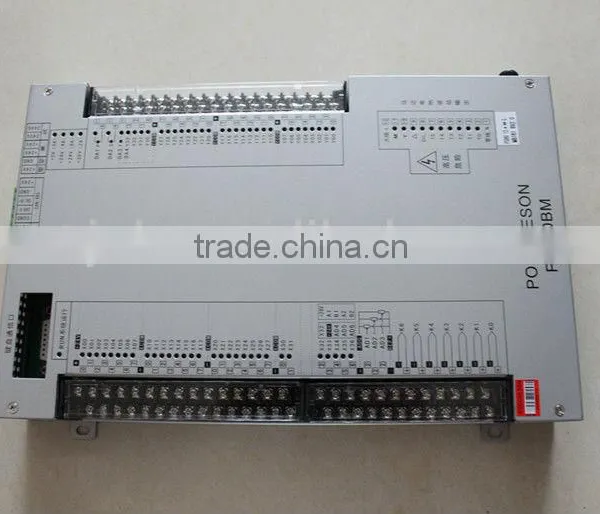

PS660AM I/O board 24/24+9+3line electronic ruler

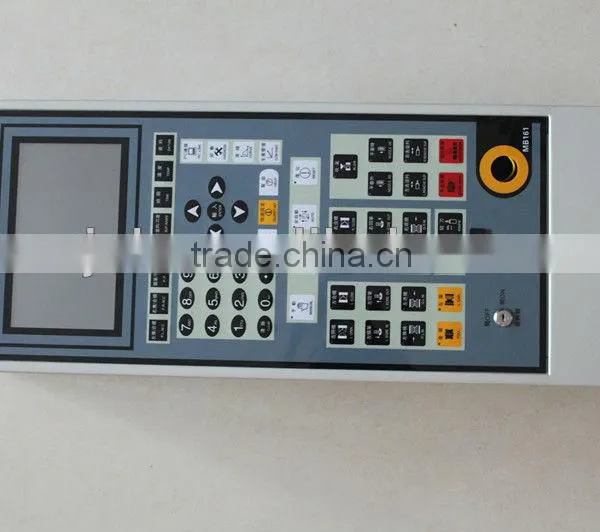

Keyboard : KC118 800*480TFT 7''inch LED screen
TB118 800*480TFT 7"inch LED screen

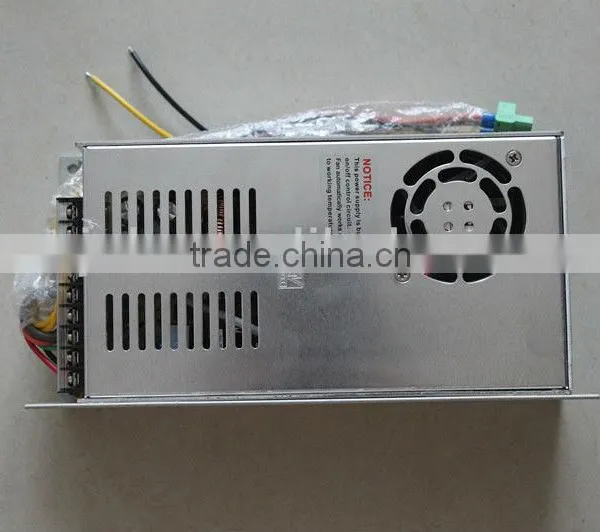

Power supply: PW450 450W
Cable: DB-15F 1-8meter optional
User manual: one set with system
Guarantee Period: 1year
PS660AM specification :
1. PID (Proportion Integration Differentiation) self-learning temperature control, (4+1) sections of temperature
2. Multi-stroke control , position switch/3-path 12bit A/D electronic ruler input
3. 999 groups mould data storage, mold description input can adopt Chinese/English with real-time operational help
4. Multi-language selected, display dynamically in real time with 999 group SPC track record
5. Input& output point with overload and short-circuit protecting function
6. Real time dynamically observation on output values of pressure, speed and current, no need extra ammeters
7. Multi security programs protected and internal security circuit controlled
8. Failure of self-detection, alarm display and voice prompt function
9. 2 path standard 16bit D/A ratio output with max current 3000 mA
10. 2 path standard ratio output 0 ~ 10V D/A

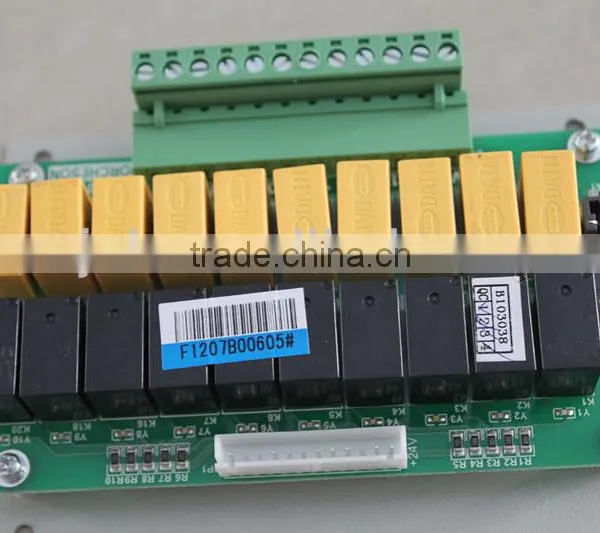

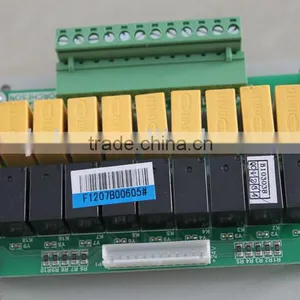

11. DC24V input 24 point /output 24 point, relay output 9 point
12. Could configure various universal keyboards:7.0, 8.0, 10.2 inch TFT(optional)
Operate environmen
Operate temperature: -10°C ~50°C
Storage temperature: -20°C~60°C
Relative humidity: 10%~95% (non condensation state)
100% tested before shipping
Shipping Details
1 We will ship the items within 3working days after the payment is reached
2 We often ship to customers by UPS/DHL/Fedex and ect,We would like to ship to you which is convenient to you. Please contact us directly and we will use your preferred ways.
3 we only ship according to the shipping address unless you contact us to change it.
4 As to the shipping time,it usually will be 3-7 days,which will be different for different countries.
2 We are not responsible for any accidents, delays or other issues that we couldn’t control,
3 Any import fees or charges are the buy’s responsibility.
I will quoto you ASAP and sent you the best price.
Any questions, please contact us.
Look forward your inquiry.
