Specifications
Porcheson PS860BM control systemFast delivery
Good price
high quality
1year guaranty

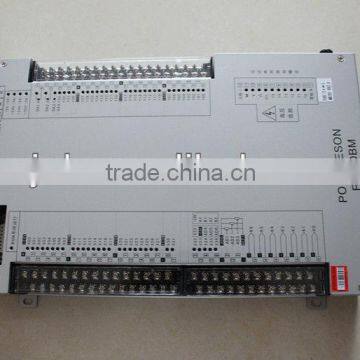

PS860BM I/O board 27/28+10+3 line electronic ruler+4 line pressure sensor

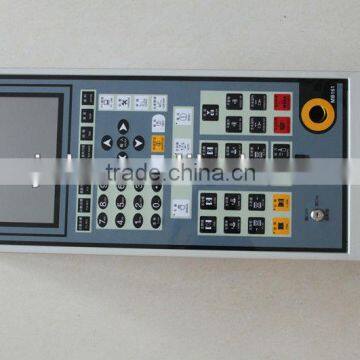

Keyboard : MB161 800*480TFT 7''inch LED screen

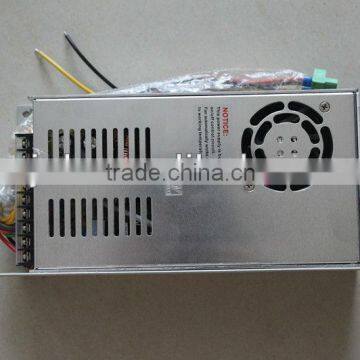

Power supply: PW450 450W
Cable: DB-15F 1-8meter optional
User manual: one set with system
Guarantee Period: 1year
Main function & technical index
1. Up to 6 layer of password setting to enhance data storage safety
2. Multi-stroke control , position switch/3-path 12bit A/D electronic ruler input / 3 path AD pressure sensor detection
3.PID (Proportion Integration Differentiation) self-learning temperature control, 7sections of temperature
4. 999 groups mould data storage, mold description input can adopt Chinese/English with real-time operational help
5. Multi-language selected, display dynamically in real time with 999 group SPC track record
6. Input& output point with overload and short-circuit protecting function
7. Real time dynamically observation on output values of pressure, speed and current, no need extra ammeters
8. Multi security programs protected and internal security circuit controlled
9. Failure of self-detection, alarm display and voice &light alarm output (need voice & light alarm device)
10. 3 path standard 0 ~ 1000mA D/A ratio output,max current output 3000mA with output feedback detection
11. 2 path standard ratio output 0 ~ 10V D/A
12. With long-distance communication functions which enable to programmed and replace different software versions
13.512 working machines can be managed by one host computer which can count each computer's production status accurately and convenient to manage
14. DC24V input 27 point /output 28 point , relay output 10point
15. Could configure various universal keyboards :7.0, 10.2 inch TFT(optional)
Operate environment: Operate temperature: -10°C ~50°C
Storage temperature: -20°C~60°C
Relative humidity: 10%~95% (non condensation state)
Thanks for your time on our products, if you interested in ,please don’t hesitate to contact us for more details. also we offer other control system
