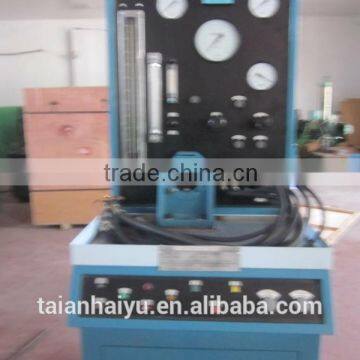

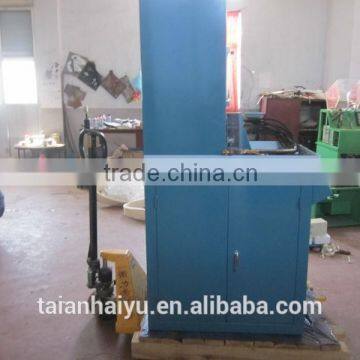

PT Pump Test Bench to Test Cummis Pump With Revolving Speed: 0~4000r/min.
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Engine Analyzer
Voltage:
220V
Power:
200W
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PT-1 High Pressure Common Rail Nozzle Tester(High Quality)NegotiableMOQ: 1 Set -
HAIYU MACHINE-- Fuel Injector Trip Test Machine--PTXW, Lumen Test BenchNegotiableMOQ: 1 Set
-
HY-PT Fuel Pump Test Bench, Functional Auto Diagnostic ToolNegotiableMOQ: 1 Set
-
Prime Quality PT-1 Diesel Injection Pump Testbed, Easy OperationNegotiableMOQ: 1 Set
-
Fuel Injector Trip Testbed--PTXW, Special Lumen Testing MachineNegotiableMOQ: 1 Set
Type
Engine Analyzer
Voltage
220V
Power
200W
Certification
CE
Place of Origin
Shandong, China
Brand Name
haiyu
Model Number
PT
Professional Cummins PT Pump Test Bench
usage: test, repair and measure Cummins PT pump
Certification:ISO9001:2008 CE certificate
Introduction:
It is designed for testing PT Fuel Pump which is the patented product of CUMMINS in America. Its host uses the advanced and reliable stepless frequency conversion which guarantees its wide speed range and high accuracy of testing and also uses dedicated dual rotameter to meet the requirement of testing the CUMMINS PT Pump. It can meet the requirement of all kinds of PT Fuel pump such as PT(G),PT(G)VS,PT(G)MVS,PT(G)AFC,PT(G)AFC-VS,PT(G)EFC,PT(G)R,PT(H).
Main function:
- Testing gear pump pressure and vacuum experiment of PT Pump
- Testing idle speed of PT Pump
- Testing weight assisted pressure
- Testing pressure and discharge in every checking point of PT Pump
- Testing AFC of PT Pump
- Testing stoping oil of PT Pump
- Testing the throttle of PT Pump
- Testing throttle return of PT Pump
Configuration:
- Power:3KW
- speed range: stepless frequency conversion:0-4000 circle/min or at will
- test pressure of fuel:≤2.5MPa
- test pressure of air:≤0.25MPa
- test pressure of gear pump:≤5MPa
- fuel can be cooled by air and heated by heater. The temperature can be displayed in the screen and controlled automatically.
- overall dimension:680(length),935(width),1730(height)
- net weigh:300kg
