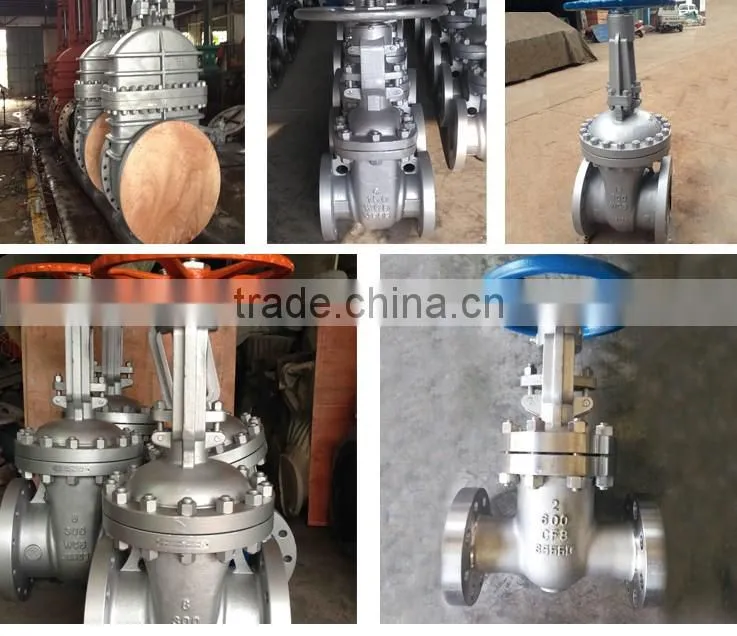

Z40H Standard API Manual 150LB 10 Inch API Gate Valve
Specification:
Size: 1/2"-30"
Pressure:150LB~1500LB
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear Devices, Electricty, Etc
End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)
Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system
Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection: ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc
Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force.

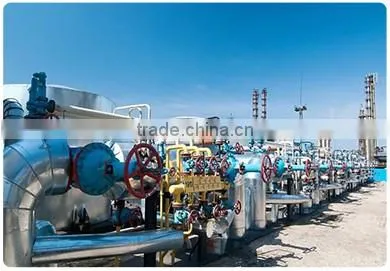

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
1. Yes, sample order is available for quality check and market test. But it is not free.
2. It usually takes about 25-30 working days to produce. For big order, it depends on the order quantity.
3. We usually accept T/T, L/C, Western Union, Cash.
4. We offer 12months warranty time.
5. Depends on your request, we have standard models in stock. Some special products and big order will be newly produced according to your order.
6. Yes, different models can be mixed up in one container.
7. Quality is priority, we always attach the importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before painting, packing and shipping.
8. Yes, we have the right to export and can sell product all over the world.
9. Our company has been audited and approved API 6D, CE 0036, ISO9001.
Test report will be provided when all goods finished. Also we are the alibaba’s gold supplier since 2010. Now we clients all around the world.
