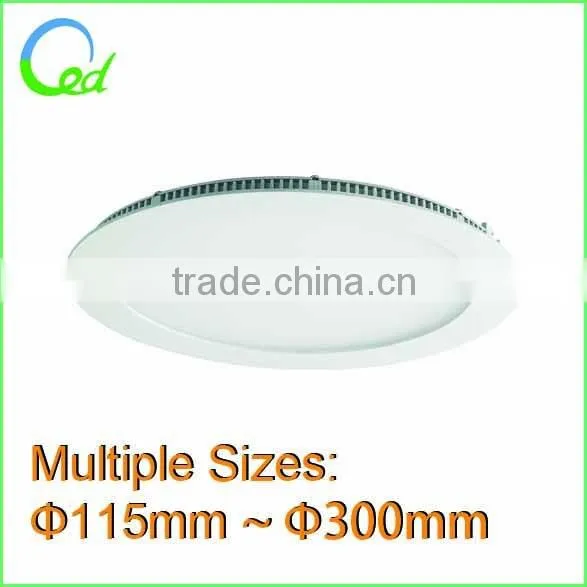

good quality LED Light Source and CE,EMC,LVD,RoHS Certification panel ceiling light
Specifications of LED Light Source and CE,EMC,LVD,RoHS Certification panel ceiling light
1.pure aluminum body,good heat dissipation
2.High quality acrylic plate( PMMA)
3.recessed/surface mount
4.more than 50000hrs lifetime
5.CE&RoHS approval
6.more than 3 years warranty
Photometric Characteristics of LED Light Source and CE,EMC,LVD,RoHS Certification panel ceiling light
1.Light source: 208pcs ultra bright low power SMD LED
2.Color temperature: Warm white, 2800-3300K,Commercial white,4000-4500 Cool white, 6000-6500K
3. Edge-lit methods, with advanced light guide technology.
4. Lumen output: 950-1050lm
5. Lux at 1.5 meters: 180-210 lux
6. Beam angle: 120 degree
7. Uniformity of light color: ≥ 90%
8. Color Rendering Index (Ra): > 85
Mechanical Characteristics of LED Light Source and CE,EMC,LVD,RoHS Certification panel ceiling light
Material: aluminum PCB,aluminum frame,high quality acrylic plate (PMMA)
Surface finish available: silver, golden painting, white painting, black painting,
Working temperature: 45 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -40-50 degrees Celsius
Dimension: φ240mm
Cutout size: φ224mm

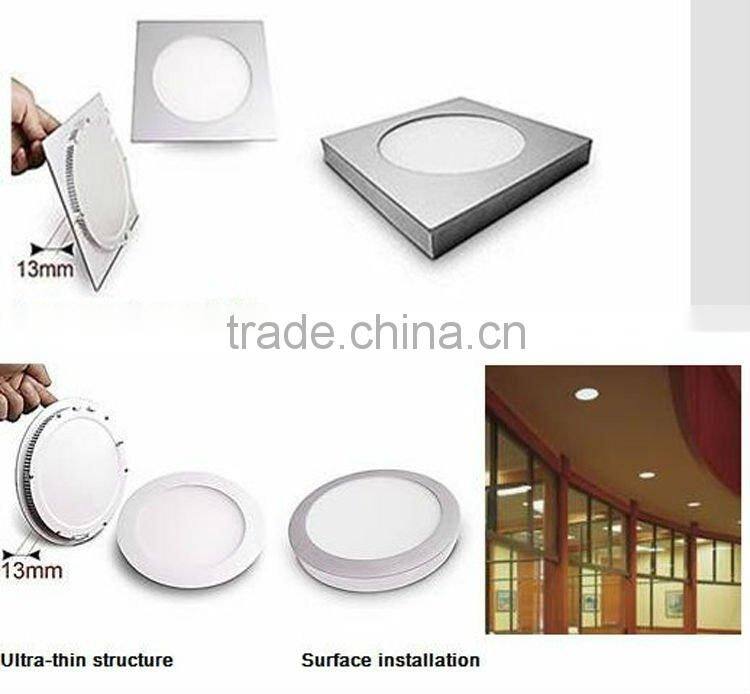

Method of Installation of LED Light Source and CE,EMC,LVD,RoHS Certification panel ceiling light
1. Recessed mounted
Cut a hole φ224 in the ceiling, straighten the springs of the lights, put the light in the hole, and
release the springs. The light will be fixed by the springs.
2. Surface mounted
Fix the outer ring on the ceiling with screws, and put the light into the ring.

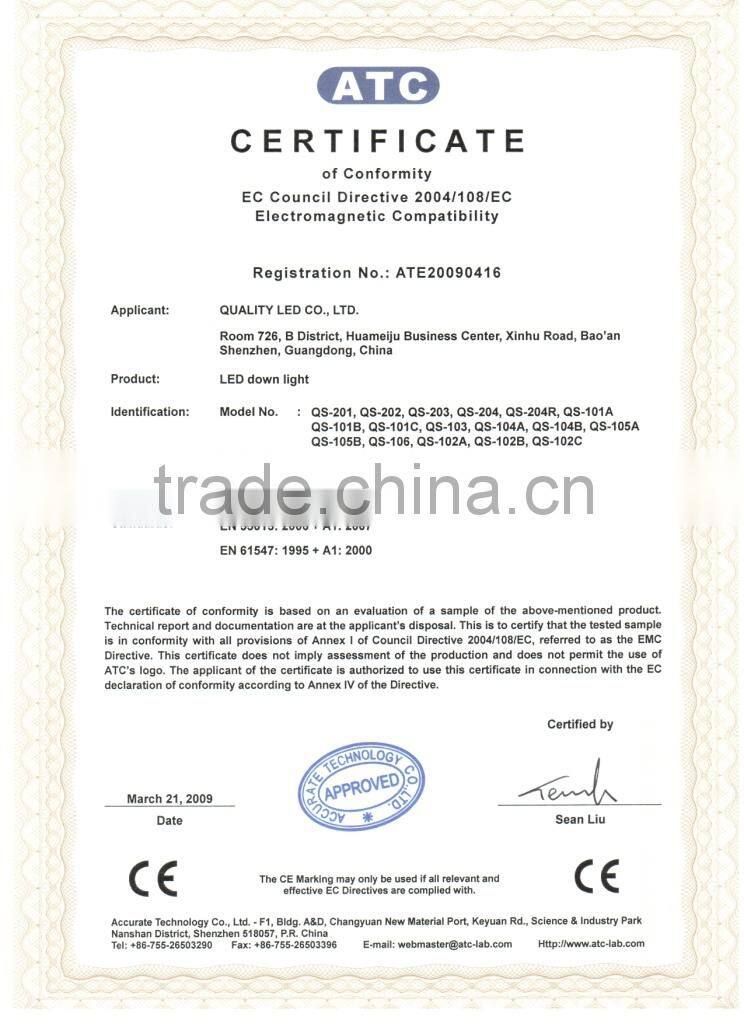

Certificate of LED Light Source and CE,EMC,LVD,RoHS Certification panel ceiling light

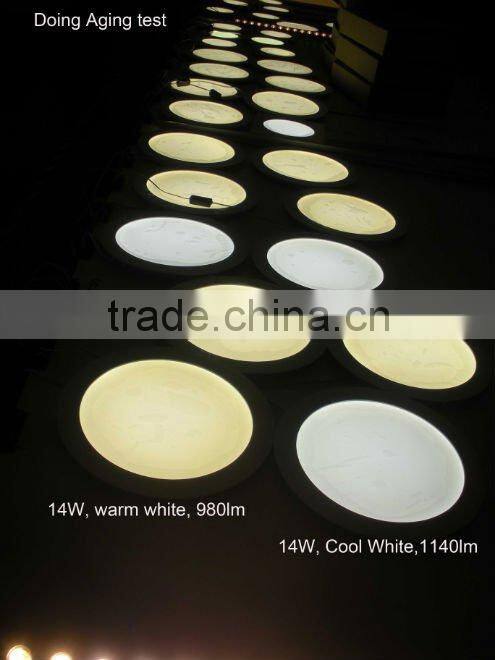

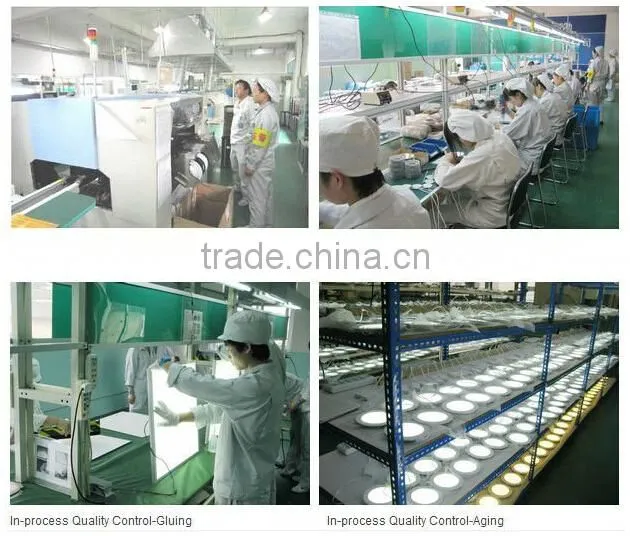

Process Test

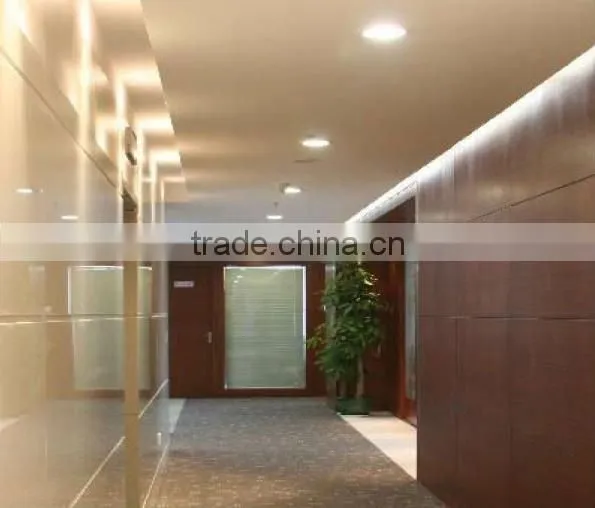

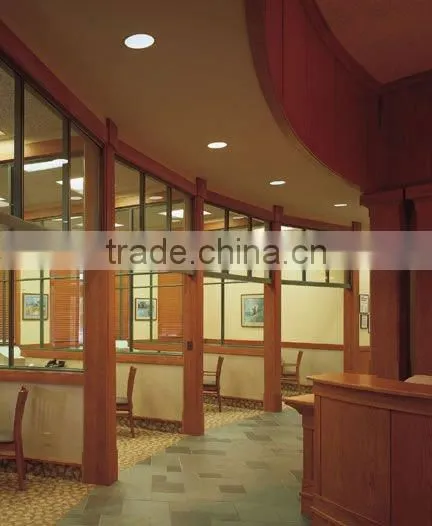

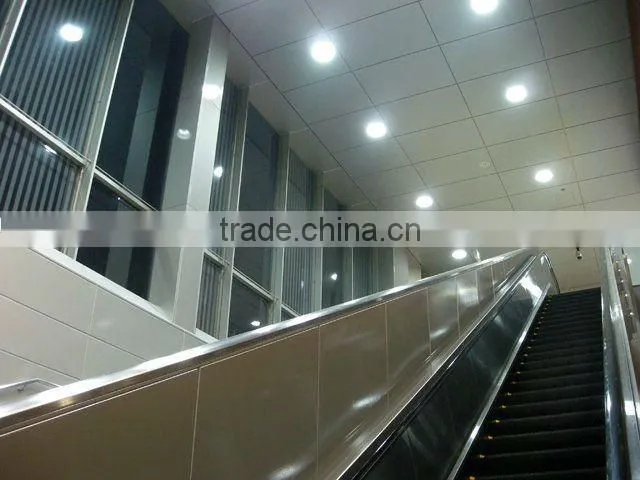

Application Scene of LED Light Source and CE,EMC,LVD,RoHS Certification panel ceiling light
