SUS631 ( 17-7PH ), Stainless steel strips/coils, 0.015 - 2.00mm thick, Made In Japan

Specifications

Precipitation hardening stainless steel strips/coils,
Thickness 0.015~3.00mm,
SUS631(17-7PH), SUS632J1(15-7PH), TOKKIN350





Precipitation hardening stainless steel strips/coils,

SUS631(17-7PH), SUS632J1(15-7PH), TOKKIN350(SUS633),

Thickness: 0.015 - 3.00mm, Width: 3.0 - 300mm

Made In Japan



  Features(Overview)



We produce three kinds of precipitation hardening stainless steel of SUS631(17-7PH),SUS632J1(15-7PH) and TOKKIN350(SUS633).

The minimum thickness of products(strips) are 0.015mm(15μm), with a guaranteed precision thickness tolerance.
We also can customize the thickness, width, surface finishing, hardness and other specifications according to your requirements.



  Main uses



Band saw, Lead valve, Diaphragm, Bellows, Mask flame, Chain, Spring, Watch parts, and so on...





  Products and standard table

  < Precipitation hardening stainless steel (600series) >

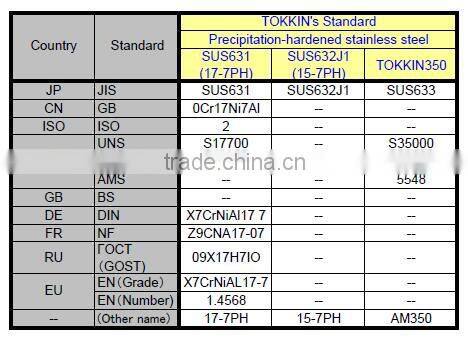

(1) Standard table

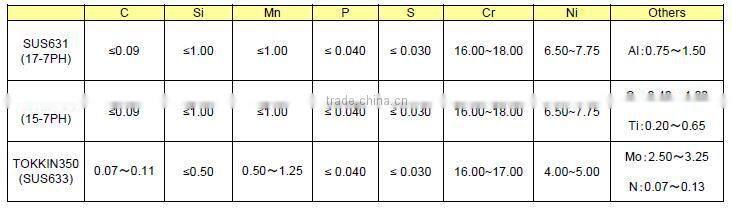

(2) Chemical composite

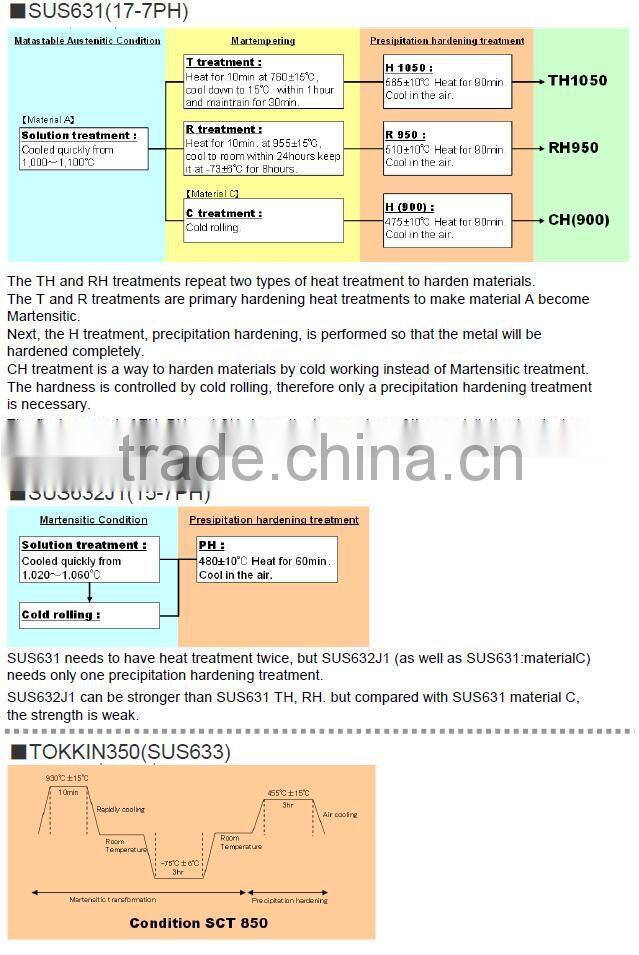

(3) Heat treatment

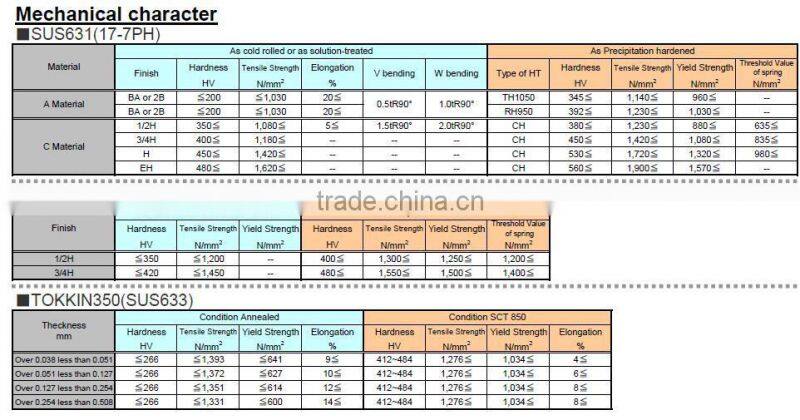

(4)Mechanical character





  Specification details



Type	Cold Rolled Stainless Steel strips(coils)
Grade	600series:SUS631(17-7PH), SUS632J1(15-7PH), TOKKIN350(SUS633)
Finish	Roll-Up(Hard),Skin pass(2B), BA(Bright Annealing), others.
Thickness	0.030~3.00mm
Width	3.0~300mm
Length	Coil (strip)  or  sheet (Length100~2,000mm)
ID	φ300,400,500mm (Inner Core)
MOQ	1.0kg



Specifications which can adjusted to suit your needs.

Hardness(HV) , Tensile Strength(N/mm²,MPa) , Elongation(%) ,
Proof Stress , Surface Finish ,
Edge Condition(Slited Edge, Rolled Edge, De-burred Edge, etc.) ,
Camber(mm/1M) , Cross bow(mm/Width) , Coil set(mm/1M) ,Surface Roughness(Rmax, Rz, Ra)
Maximum OD , Coil Weight , Packing







  The reason why you choose us



1. Small quantity, short time delivery

If we have stocks, we can ship from a minimum of 1 kg sample in a few days.
We also manufacture custom-order materials in amounts of 300 kg and up

(Some materials are allowed 50 kg) in as few as 3 weeks.



2. High-precision thickness

We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:

            t <0.30mm     Tolerance ±1 - 3 μm guaranteed

            0.30 mm≤t     Tolerance ± 1% guaranteed



3. Ability to add multiple features

We are capable of adding a variety of features to metallic materials

(resin coating, plating, bonding different kinds of metal, multigage skiving, etc.).



4. Unique technology and custom-made solutions

We provide customed solutions to your problems with our unique

technologies and well versed knowledge of materials acquired through

our experience of manufacturing 50,000 items.



5. Choose the appropriate base metals for your needs

We carefully balance quality, delivery time and price,

procure various base metals from all over the world.

We manufacture appropriate products to your needs.



6. To control metal structure(chemical formation)

We can manufacture ultrafine metal structures with a grain size of 1 μm.
Using finer grain sizes provides benefits such as hardenability,

balancing strength and ductility, and precision press processing.



7. Lower total cost

We taking your processing into account,

offer you reduce a total cost by using our product.



8. Global network

Our plant located in Japan, Shanghai and Taiwan,

we also support flexibly local procurement and production transfer.

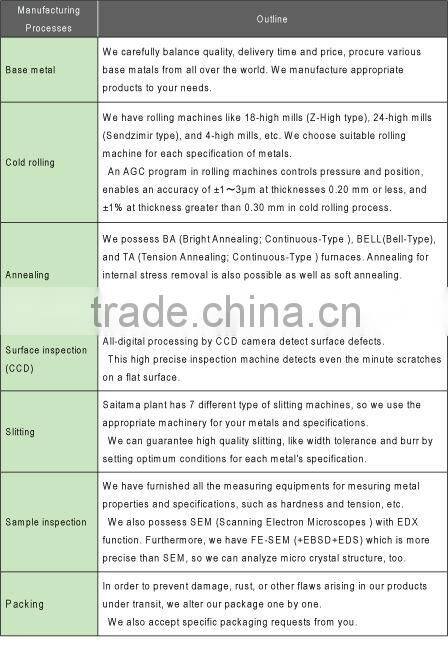

  Manufacture process







  Order flow







  ISO certifications



ISO9001:2008

Registration Date :   13 March, 2000

Registration No.    :   JMQA-1646



ISO14001:2004

Registration Date :   14 December, 2006

Registration No.    :   JMQA-E670





  Global network
