surface mount white painting led mini light

Features:

1W CREE LED/Edison LED/LED nominated by customer
Colors available: white, warm white, red, green and blue
Dimension: ∅33x(H)14.5mm
Surface finishing available: silver or white painting
Beam angle: 120 degree
Outstanding structure design, nice looking
Surface mounted or recessed mounted
Long working lifetime

Advantage

CE,RoHS approval

More than 50000 hrs lifetime

3 years warranty

New design

High-quality LumiSheet acrylic plate (PMMA)
Surface finish available: white painting, aluminum silver
Light is bright but friendly to eyes
Recessed mounted or surface mounted.
Low working temperature long working lifetime
No stroboflash, eco-friendly

 Electrical Characteristics

1. Input voltage: 12V/350mA DC
2. Power consumption: 1W

Photometric Characteristics
1. Light source: ultra-bright low power Sharp/Cree/Edison LED
2. Colors available: white(6000-6500K), commercial white(4000-4500K), warm
white(2800-3300K),Red,Gree,Blue
3. Edge-lit methods, with advanced light guide technology.
4. Lumen output: 80-100lux
5. Lux at 1.5 meters: 70-90 lux
6. Beam angle: 120°
7. Uniformity of light color: ≥ 90%
8. Color Rendering ndex (Ra): > 75

Mechanical Characteristics
1. High quality lumisheet acrylic plate (PMMA).
2. Aluminum PCB
3. Aluminum frame
4. Ambient temperature: 40 degrees Celsius ~ 50 degrees Celsius
5. Working temperature: 55 degrees Celsius at room temperature 33 degrees Celsius
6. Dimension: ∅33*14.5mm
7. Cutout size: ∅22mm

Install Method

1. Recessed mounted
Cut a hole with dimension of ∅22mm in the cabinet, then put the light in the hole, the light can be
fixed by the spring

2. Surface mounted
Take out the ring, fix the ring with two screws on the cabinet, and put the inner part back into the
ring.

Application

1. Cabinet light
2. Display case
3. Jewelry store
4. Museum
5. Walkway
6. Household, hotel, restaurant, entertainment places, etc.

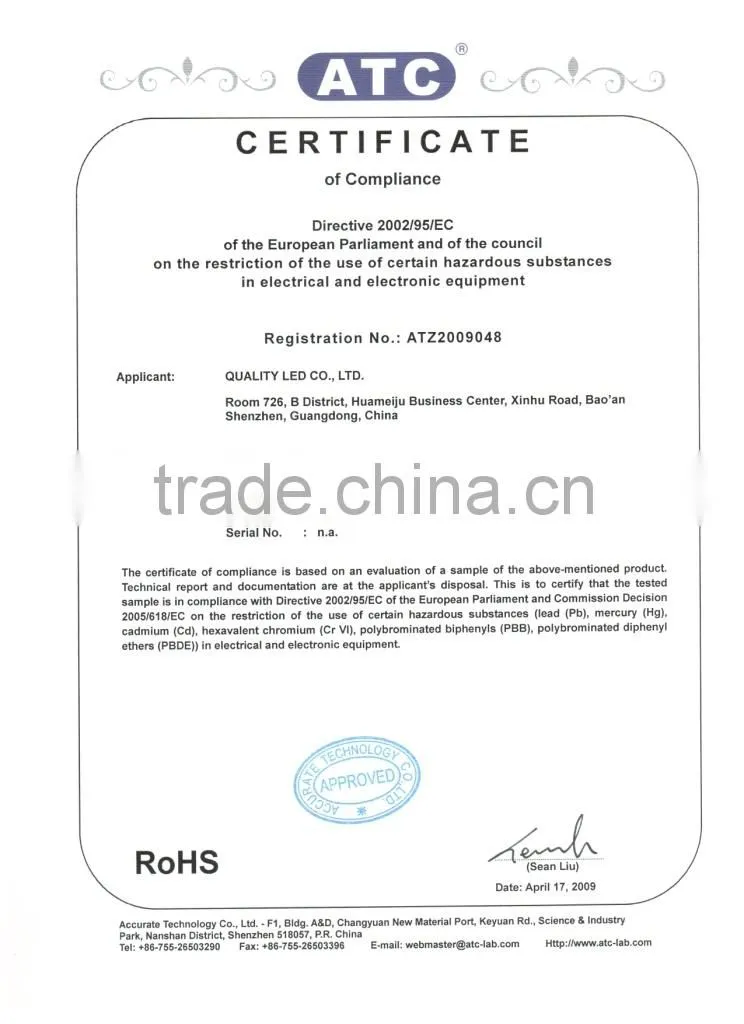

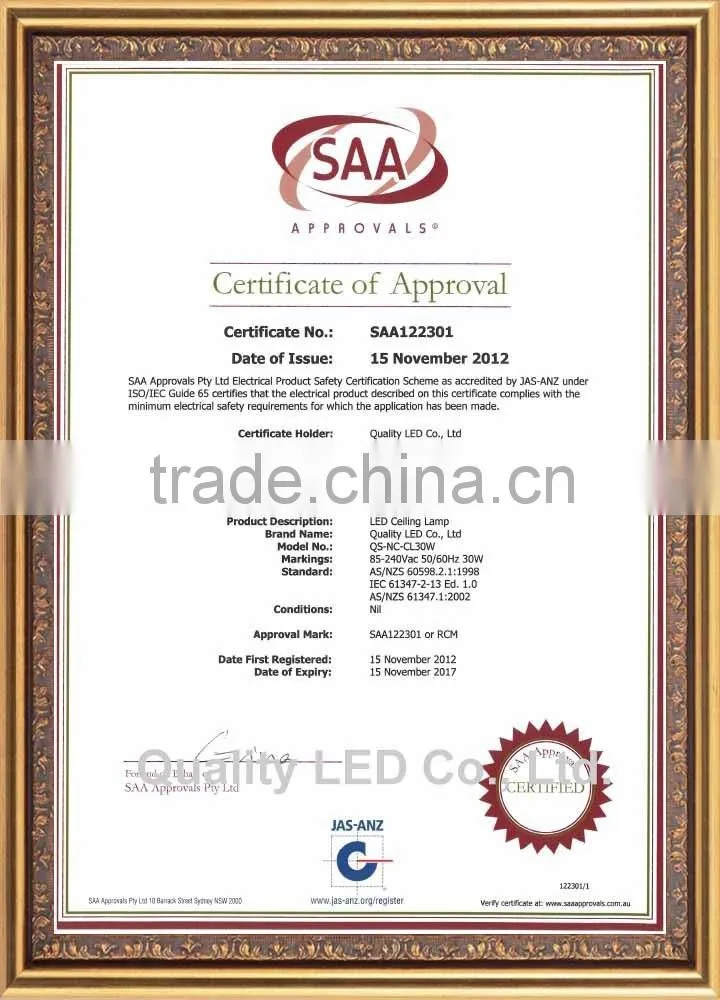

Certificate

Trade Terms

1. Payment: T/T, L/C,Paypal,Western Union
2. Production lead time for 100-500pcs: 10 days, 500-10000pcs: 15 days
3. Sample can be delivered in 3 days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. MOQ: 100pcs

Our Service

1. Your inquiry related to our products or prices will be replied in 24hrs
2. Well trained and experienced staffs to answe all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product
4. Distributoership are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information.



Application

Company profile:

Established in 2007, Quality LED is an ISO 9000:2008- certified high-tech enterprise, which integrates developing, production and sales of LED lighting solutions. At Quality LED, We offer one-stop purchasing solutions for all of your LED lighting needs– whether it’s for home or commercial applications. Carrying CE and RoHs marks, our products are well-received in Europe, North America, Australia and the Middle East. We also provide the following advantages:

Stable quality to ensure the level of quality your market demands, we only source PCBs which made of MRK board from Taiwan, as well as use Edison and Cree LEDs.

A suite of QC equipment we utilize spectrometers, integrating spheres, power meters and vibration meters to evaluate our products’ performance. In addition to conducting 48-hour aging tests, we run full inspections on our items prior to delivery for your peace of mind.

Large monthly capacity equipped with high-speed placement machines and thermostatic reflow soldering machines, our 5,000m² factory produces up to 500,000 units monthly.

OEM/ODM ability Our R&D team, led by an engineer with over 10 years experience, can work on your customization requirements, completing samples in just 5 days
