Specifications

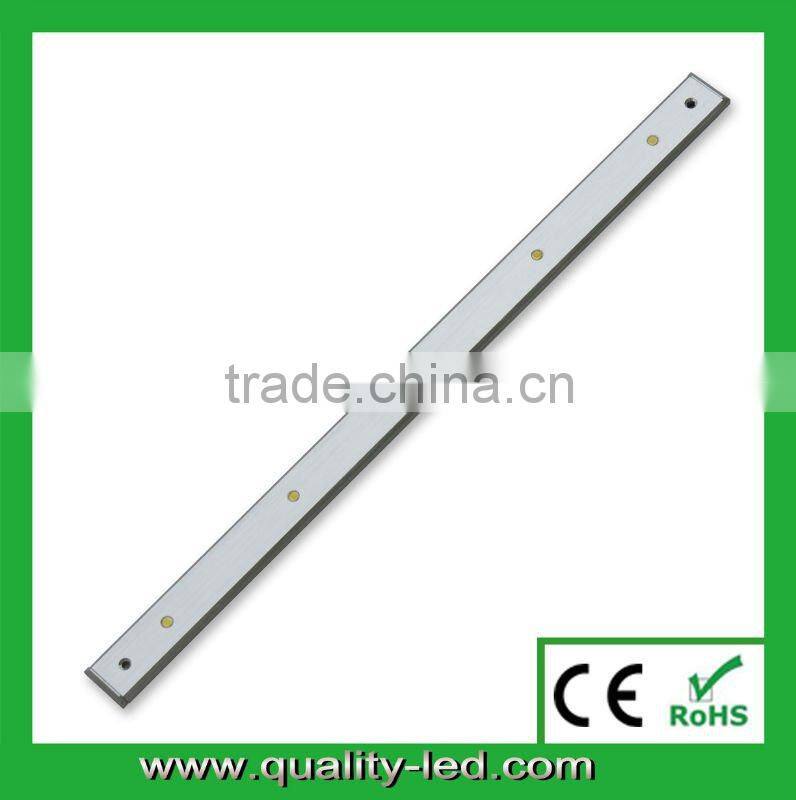

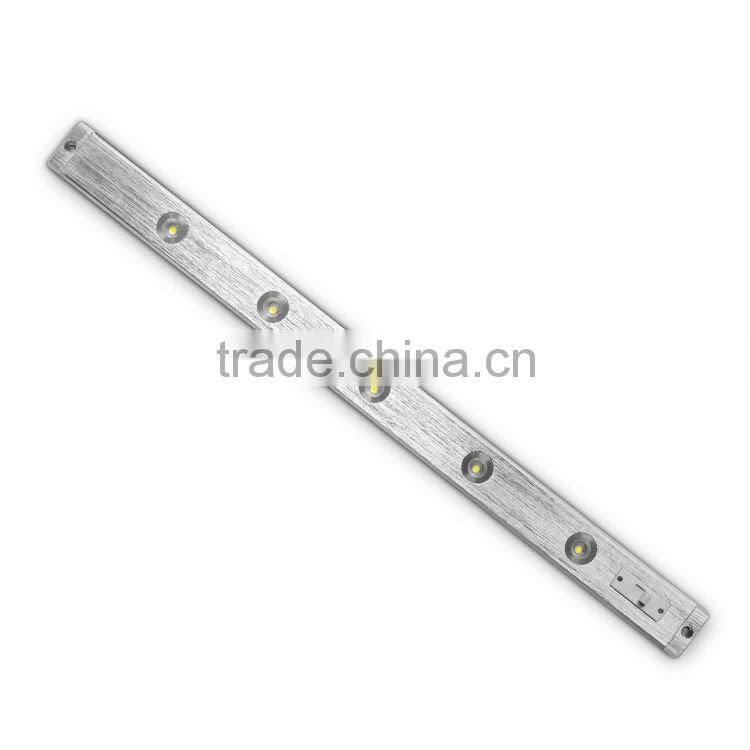

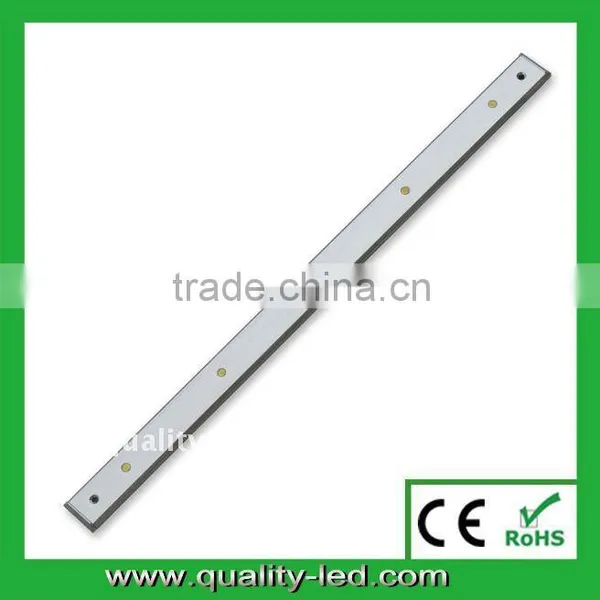

5pcs 1W CREE LED/Edison LED/LED nominated by customerSlim structure
Light is uniform
Cabinet light
Applications:
1. Cabinet light
2. Display case
3. Jewelry store
4. Museum
5. Walkway
6. Household, hotel, restaurant, entertainment places, etc.
According to the input, there are two types
1. Input constant current 350mA.
2. Input constant voltage 12V DC. (with 350mA current regulator on the PCB)
Input constant current 350mA
Electrical structure: 1 PCB+ 5 LED
Input voltage: /
Input current: constant current 350mA
Power consumption: 5W
One 350mA constant current LED driver can work with multiple QS-CB-A-5x1W-350mA/
QS-CB-A-5xC1W-350mA which are connected in series (not in parallel). But it is limited by the max
load of the constant current LED driver.

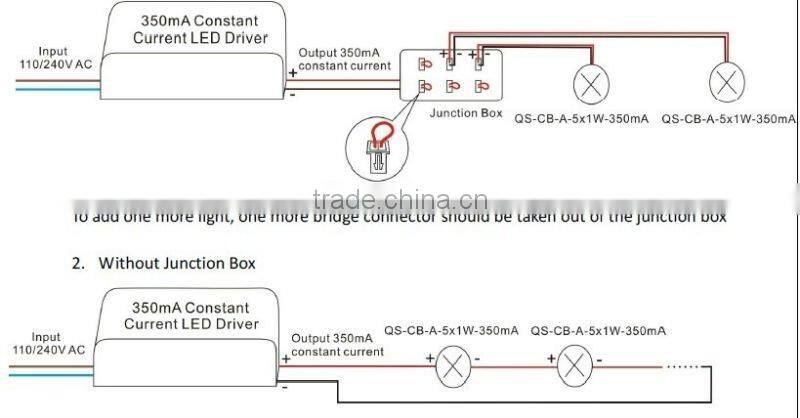

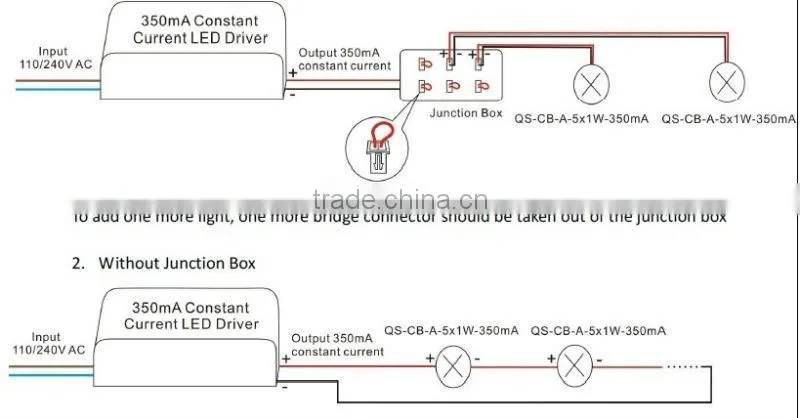

Diagram of Wiring:
1. With Junction Box
Important notice:
Before switching on the power, please make sure all the connectors and wires are
connected tightly. Any poor connection or wrong way of operation may cause the damage
of LED by instant higher voltage. Recommend to use constant current LED driver with
protective function to avoid any damage caused by poor connection or wrong way of
operation.
Input constant voltage 12V DC
Electrical structure: 1 PCB + 5 LED + 350mA current regulator on the PCB
Input voltage: 12VDC
Input current: /
Power consumption: 5W
One 12V power supply can work with multiple QS-CB-A-5x1W-12V/QS-CB-A-5xC1W-12V
which are connected in parallel(not in series), but it is limited by the max load of the 12V
power supply.

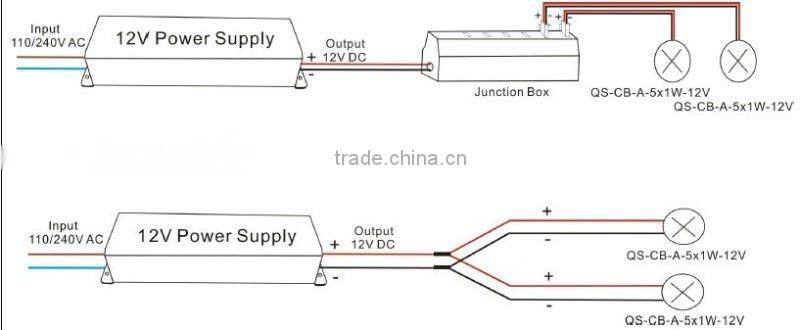

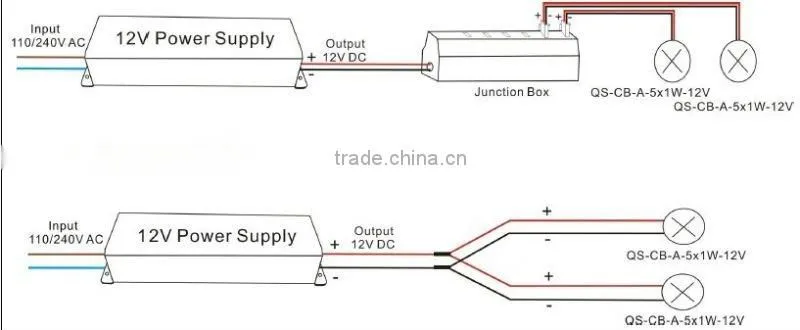

Diagram of Wiring:
1. With Junction BoxImportant notice:
The total power consumption of the lights connected should be less than 90% of the max
load of the power supply.
Important notice:
The total power consumption of the lights connected should be less than 90% of the max
load of the power supply.
Photometric Characteristics
5pcs 1W CREE LED/Edison LED/LED nominated by customer
Beam angle: 120°
Color Rendering Index: >75
Item Number Lighting Source Color Temperature Lumen Output
QS-CB-A-5x1W-W 5pcs 1W Edison LED 6000-6500K 400 lm
QS-CB-A-5x1W-WW 5pcs 1W Edison LED 2800-3300K 320 lm
QS-CB-A-5xC1W-W 5pcs 1W CREE LED 6000-6500K 450 lm
QS-CB-A-5xC1W-WW 5pcs 1W CREE LED 2800-3300K 400 lm
Mechanical Characteristics
Material: aluminum
Surface finish: silver
Working temperature: 40 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -40~50 degrees Celsius

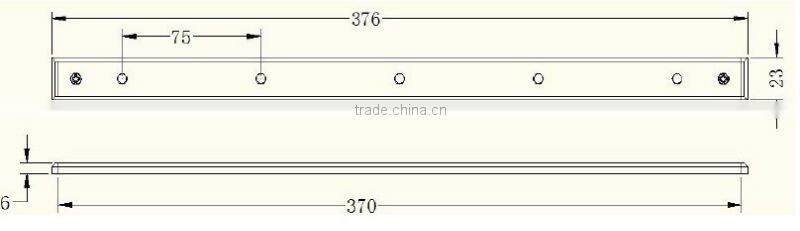

Dimension: 376x23x6mm
Method of Installation
Fix the light with two screws
