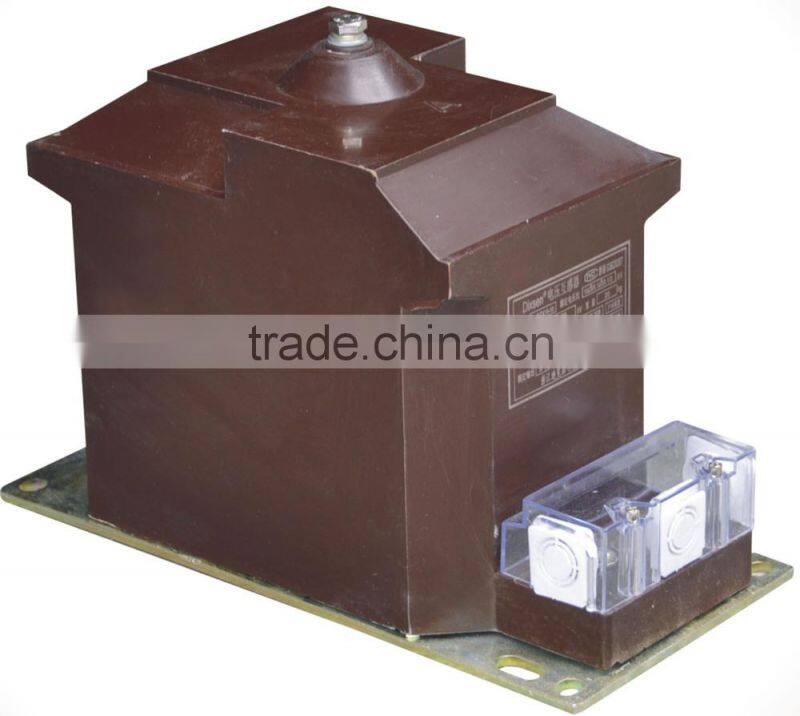

volt transformer for home type
US$ 80 - 1,000
/ Piece
1 Piece(Min. Order)
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-

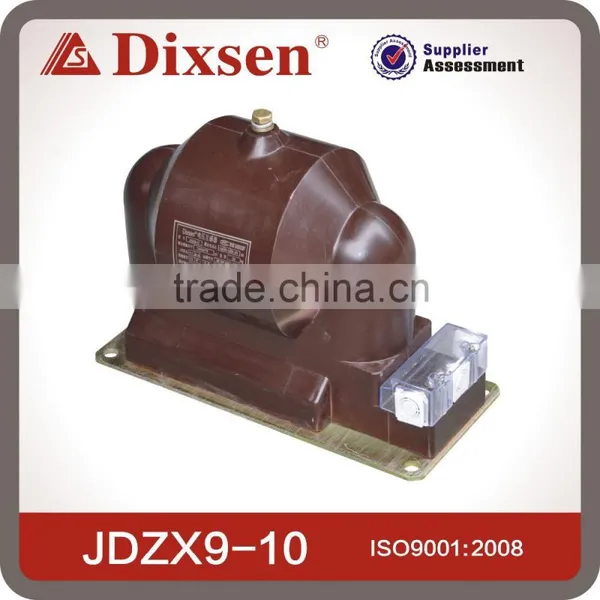

JDZX9-10 10kv 11kv 12kv indoor voltage transformer
-
JDZX11-10AG medium voltage instrument transformer
-
JDZ8-12/JDZ8-12R 12kv single phase and full enclosed casting resin indoor Voltage Transformer
-
voltage transformer with fuse for safety JDZF8-10R
-
JDZX18-10R type indoor middle voltage transformer
-
epoxy cast resin transformer JSZV1-10R
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIXSEN | |
| Model Number | JDZX10-10B | Usage | Electronic | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Product Description

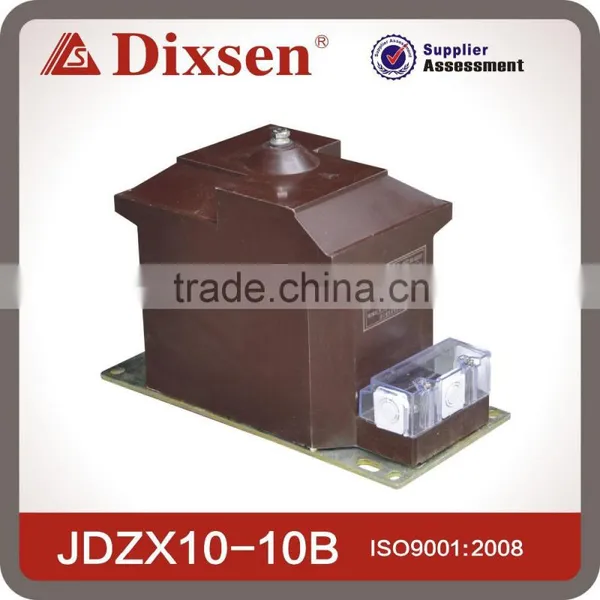

Ref | JDZX10-10B |
Um | 12kv |
| Test Voltge | 28kv/75kv |
| Rated primary Voltage - U PN | 10000/√3v 11000 /√3v |
| Rated Secondary Voltage - U SN | 100/√3v or 110/√3v |
| Rated Secondary Viltage for the Earthing Core(en) | 100/√3v or 110/√3v |
| Thermal Limiting Output | 200VA |
| Rated Burden In Accuracy Class(IEC) | 0.2: 20VA |
| 0.5: 50VA | |
| 1.0: 90VA | |
| 6P: 50VA | |
| Frequency | 50/60Hz |
| Weight | 32 kgs |
Company Information
Dixsen was born in 1992, we are a professional manufacturer focuses on low voltage components like Current and voltage Transformers, Transformers, Meters, MCCBs, MCBs, AC Contactors, Fuse and Bases, Relays and sort of things. We locate in Wenzhou city, Zhejiang province, where is quite close to Shanghai and Ningbo port. A 15000 square meter area is divided into workshop zone and office zone, 430 employees are currently making their great efforts in that area for Dixsen brand.
