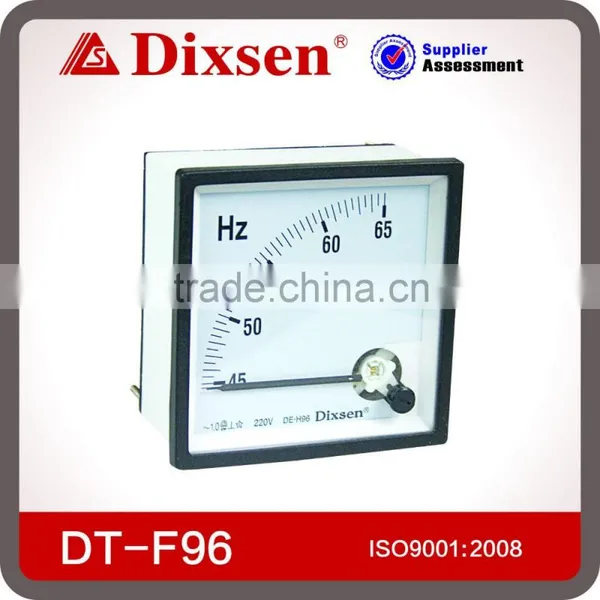

45-65Hz Frequency Meter

45-65Hz Frequency Meter thumbnail-1
45-65Hz Frequency Meter photo-1
US$ 1 - 5 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dizsen
Model Number:
DT-F96
Contact Supplier Request Quote Chat Now
Zhejiang Dixsen Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dizsen
Model Number DT-F96
Display Type Analog Only
Measuring Range 45~65Hz
Accuracy Class 1.5
Voltage 110V, 220V, 380V, 415V
Operating Temperature -25℃~40℃
Dimensions 96*96



Product Description



Frequency meter is the instrument, which measures the frequency.Frequency meter shows the number of the cycles in 1 second. Frequency meters are connected parallel to circuit which frequency will be measured like voltmeters.

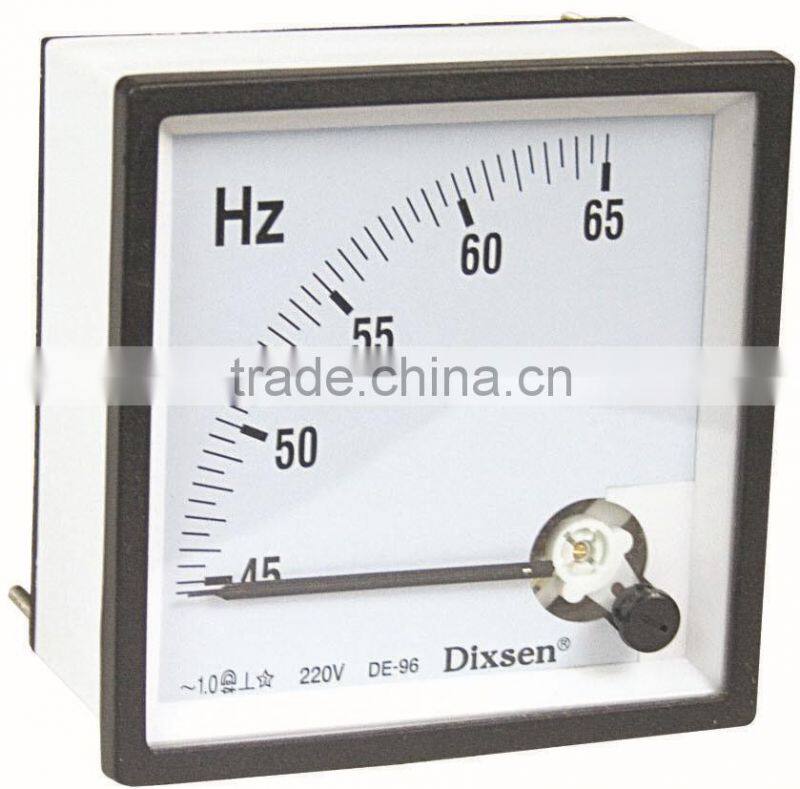

45-65Hz Frequency meter          45-65Hz Frequency meter          45-65Hz Frequency meter







Model

Frame Size

(mm)

 Measuring range Class Index Case Qty.(Pcs) Item Code
DT-F96  96x96 45~65Hz 1.5 60 2190000

Pointer Frequency Meter

Note: Please mention the voltage when ordering. Our standard voltage are 110V, 220V, 380V, 415V, special voltage upon request.





Dimension





Frame Size Dimension(mm)
A B C D E F
96x96mm 96 92 90 5.5 65 43





Detailed Images







Accessories









Company Information

Dixsen was born in 1992, we are a professional manufacturer focuses on low voltage components like Current and voltage Transformers, Transformers, Meters, MCCBs, MCBs, AC Contactors, Fuse and Bases, Relays and sort of things. We locate in Wenzhou city, Zhejiang province, where is quite close to Shanghai and Ningbo port. A 15000 square meter area is divided into workshop zone and office zone, 430 employees are currently making their great efforts in that area for Dixsen brand.
