Hospital Nurse Call System

Name: Hospital Nurse Call System
Brand: Kingbell
SKU: 114701337
Availability: InStock

Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Other, Calling System, wired and wireless

Brand Name:

Kingbell

Model Number:

KB818

Contact Supplier Request Quote Chat Now

Shanghai Kingbell Electromechinical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, Calling System, wired and wireless

Brand Name Kingbell

Model Number KB818

Place of Origin Shanghai, China

Specifications

Hospital Nurse Call System
1)wired and wireless calling system
2) could connect 96 patient calls
3) with sofeware CD

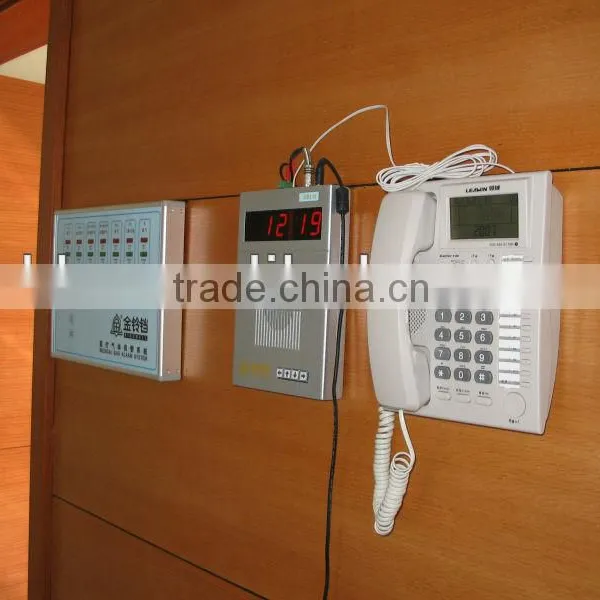

Hospital Nurse Call System:

The KB818 Nurse Call System is a newly developed addressable type system which has been specifically designed for easy operation and installation. Addressable Nurse Call System can pinpoint the location of an activated “User Machine”, because each device is associated with an address. The advantage of an addressable system is that up to 96 different addresses can be linked on the same two wires. Each bed in a ward is assigned with a unique address according to the bed numbers. After addressing the Bed Head Panel Unit (User Machine), it can be configured as “Normal Care”, “Special Care” or “Emergency Care”.

2,Functional Features

Basic Function:
The master station can call any calling button and the calling button can also call the master machine, two way speaking also available.
Capacity: Each master machine can control up to 96 user station.
User station: There is two types of user station, user station(normally, can two way speaking), waterproof urgent button ( bath room use, it not have speak function and only have the function of calling.)
Calling number change: The number of user station can be set from master station when the power is on, it is not necessary to change the chip.
Subsidiary display for nurse station: Since standard nurse station is desk type, if customer need the nurse station installed on the wall, we can provide a subsidiary display for nurse station. This subsidiary display panel can display the calling information with master station simultaneously.
Calling level: Every user station can be set from nurse station as special, urgent, normal. The response grade of the three level is different, “ urgent” is most priority, “special” is second priority, “normal” is the lowest level.
8. Alarm light: Each master station can control 48 units alarm light. Each alarm light can control 16 user stations.
Display panel: One unit master station can connect several units display panel. When the quantity of display panel is less than 2 units, extra power supply is not necessary and it can powered directly by master station.
10. Information display: When there is calling happen, master station and display panel display the numbers of bed ( 2 digit), when there is no calling happen, display current time (4 digit)
Two way speaking: the system have the function of two direction speaking, that means user station can ask talk with master station, or the master station can dial the Number of beds to talk with the user station. The voice is very clear no noise.
Multi-units display: when there are many calling happen at the same time, the master station will display the number of current speak user station, if not speak, the muster station will keep display every calling number take turns every 2 seconds, also it makes sound.
