High Quality Vibratory Pile Driver Machine Hydraulic Vibratory Post Driver For Excavator
Features
1. High efficiency: The speed of hydraulic vibratory hammer extracting piles is 4-7m/minute, even 12m/min (except muddy soil). Efficiency is higher 40%-100% than pneumatic hammer and diesel hammer.
2. Suitable environment range: Except rock, hydraulic vibratory hammer can overcome all environmental problems, easily penetrating pebble bed and other geology.
3. Multi-functions: Besides suitable for all kinds of foundation projects, it can be used for soil densifying, earth compacting and other special constructions.
4. Wide application range: suitable for driving any material piles, such as steel pipe pile, concrete pipe pile; pipe diameter from 800-2000mm; used for driving and pulling sheet piles (even underwater), suspension operation, etc.
Advantages
1. Applied to driving and pulling steel plate, cement pile, steel rail, round pipe, steel H-pile, Lasson pile
2. fast conversion between driving and pulling work
3. less tension when pulling piles
4. no damage to the bottom or top of steel plate and steel rail pile
5. No damage to the buildings even working frequently nearby
6. Silent work and short construction period, overcome environmental problems
Parameters:
Item / Model |
DLKP 08 |
DLKP 10 |
DLKP 14 |
DLKP 20 |
Weight(Kg) |
2500 |
2650 |
2800 |
3000 |
Vibration Frequency(Rpm) |
3550 |
3550 |
3550 |
3000 |
Operation Pressure(Bar) |
240 |
260 |
300 |
320 |
Vibration Force(ton) |
50 |
55 |
55 |
65 |
Hydraulic pump flow(L/min) |
180 |
200 |
240 |
280 |
Rubber quantity |
14 |
14 |
14 |
14 |
Excavator Weight(Ton) |
20-24 |
24-32 |
30-40 |
40-45 |
Pile Depth(M) |
7 |
10 |
12 |
17 |
Clip mouth clamping force(ton) |
40 |
40 |
45 |
50 |

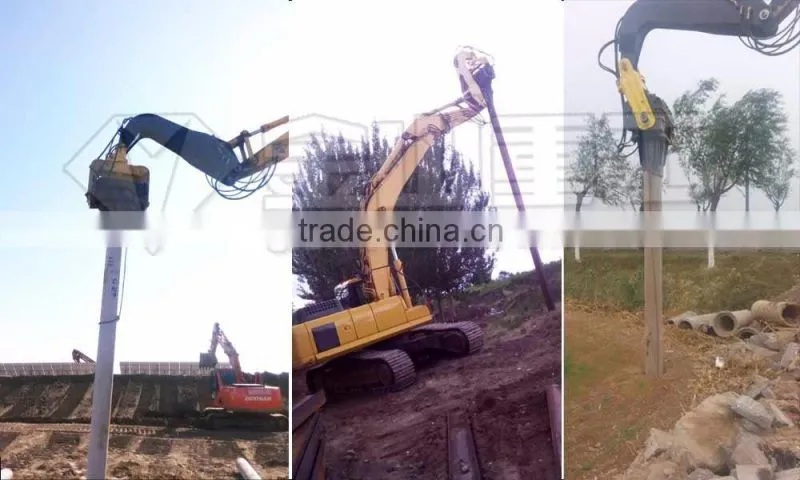

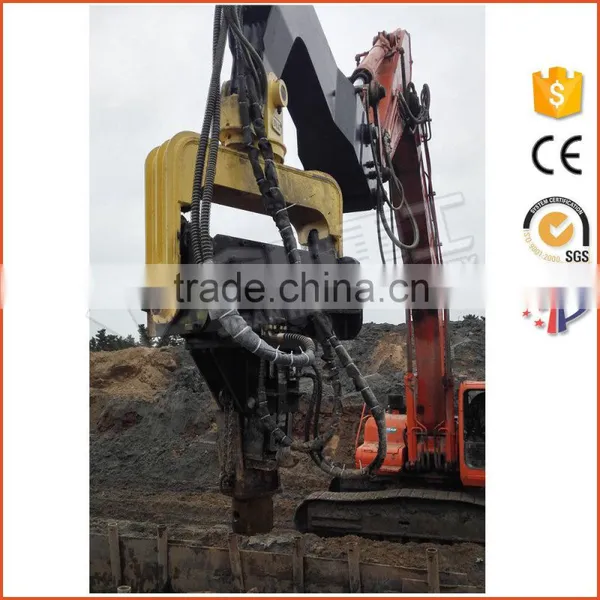

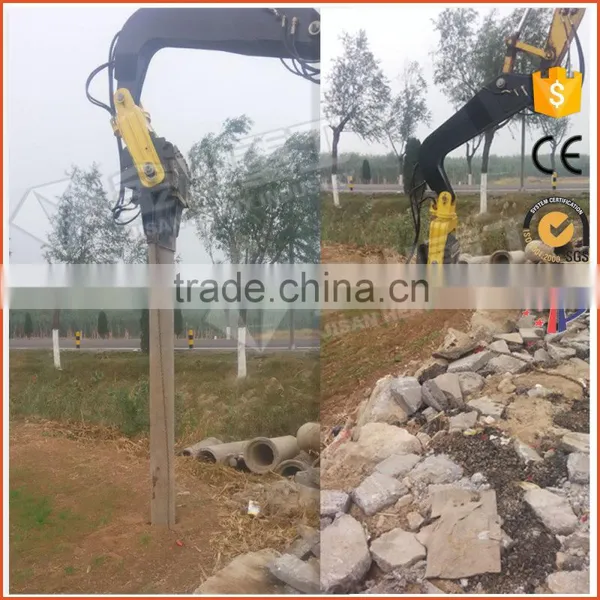

Working scene
DLK hydrauli pile hammer is using vibrating pile sinking to drive or extract piles.
It is especially suitable for municipal, bridges,cofferdam,building foundation etc.
The standard set of pile hammer include:
- The body of pile driver
- Goose neck (vice arm)
- Clamp;
- Accessories.
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
Trade Show
1. 7Days*24Hours after-sales service by email and phone
2. Your inquiry will be replied in 24 hours during workdays
3. Our customer-oriented sales and technical team are always at your service
4. OEM Service available
5. Warranty: 14 months warranty for hydraulic pile hammer, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
Please tell us your excavator or backhoe loader model, we will provide the best price and excellent service for you. Welcome to co-operate with us!
