Help CenterLow Voltage High Accuracy Current Transformers ABO-85
Related Products
-
DIXSEN Brand Mini Mould Case Instrument Transformers ABO-60US$ 3 - 8MOQ: 500 Pieces -
ABO-100 Power Meter Current Transformer/CT/Mutual InductorUS$ 2 - 8MOQ: 500 Pieces
-
ABO-125 Current Transformer/CT/Mutual InductorUS$ 2 - 8MOQ: 500 Pieces
-
Single Phase Current Transformer ABO-30C(CT ABO-30C)US$ 2 - 8MOQ: 500 Pieces
-
DIXSEN Low Voltage High Accuracy Current Transformer MR SeriesUS$ 1 - 20MOQ: 100 Pieces
Specifications
1. CE, ROHS standard2. ISO9001, ISO14001
3. Professory transformer manufacturer
4, Export to Europe, Asia, America, Africa

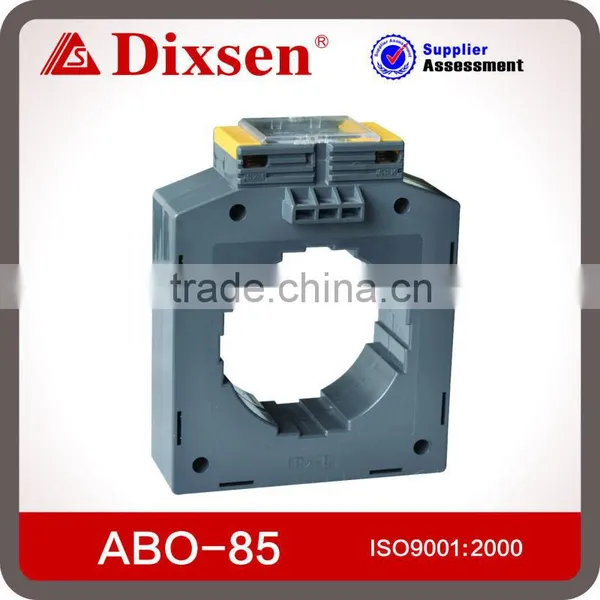

Low voltage high accuracy Current Transformers ABO-85
1.Description
A new range (8 frames) perfect designed plastic case current transformer, advanced snap on body, high accuracy (up to Class 0.2S), humanization transparent cover and lead seal hole design makes the CT very easy to indentify after long term use and perfect anti-stealing electricity.
2.Feature
Built in hinged terminal cover
Built in transparent cover for name plate
Wide range accuracy (3, 1, 0.5, 0.5S, 0.2, 0.2S) enables meet the worldwide requirement.
Primary current from 5A to 5000A.
3.Specification
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A, 1A, 0.5A, 0.25A, 0.1A
ABO series photos:

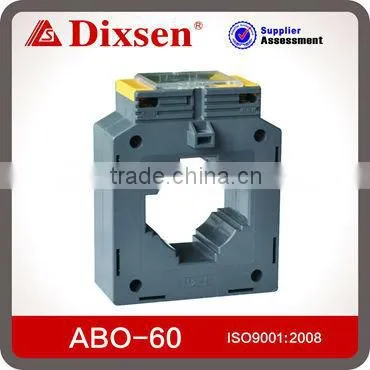

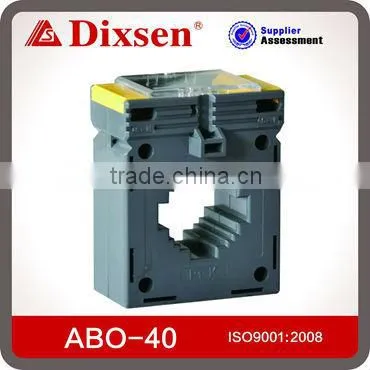

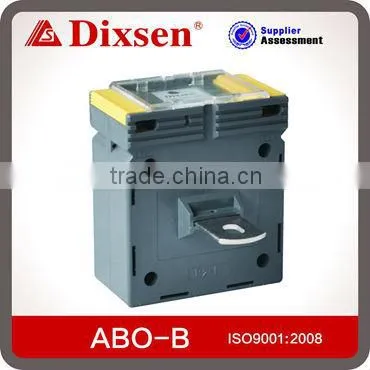

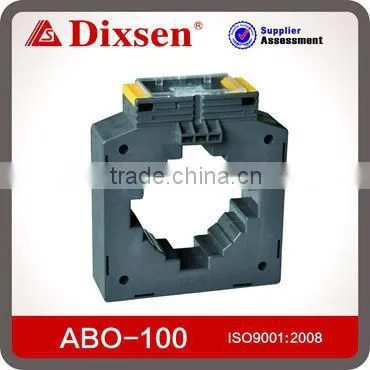

ABO-B, ABO-30T, ABO-30, ABO-30C, ABO-40, ABO-60, ABO-85, ABO-100, ABO-125
4. Packing show
5. Company show
6. Production series
....
