LC1-F115/3P Mechanical Interlocking Magnetic Contactor

LC1-F115/3P Mechanical Interlocking Magnetic Contactor thumbnail-1
LC1-F115/3P Mechanical Interlocking Magnetic Contactor photo-1
US$ 28 - 283 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dixsen
Model Number:
CJX2-F, LC1-F
Contact Supplier Request Quote Chat Now
Zhejiang Dixsen Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dixsen
Model Number CJX2-F, LC1-F
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage 380v
Main Circuit Rating Current Other, upon request.

Specifications

1. Mechanical interlocking magnetic contactor
2.LC1-F115,LC1-F150, LC1F-225, LC1-F-330,LC1-F400, LC1-F500, LC1-F630, LC1-F78

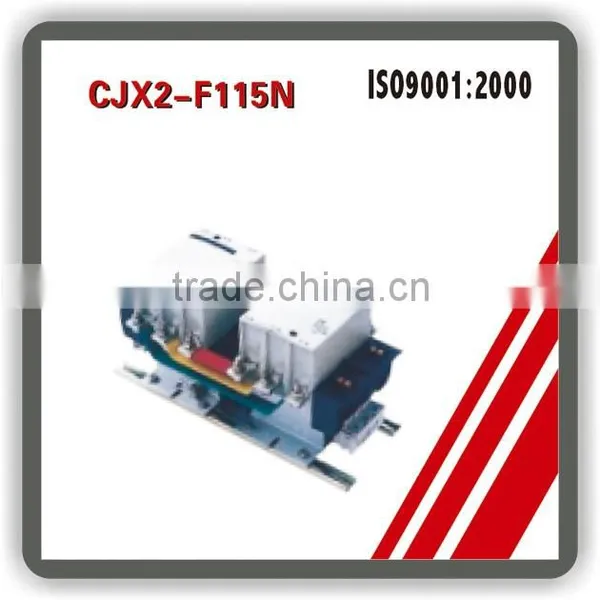

LC1-F115/3P mechanical interlocking magnetic contactor

Fulfill following Standard

IEC60947-4-1, EN60947-4-1

Contactors damages and repairs

Contactor damages and effects of these damages

There can be damages when the contactors are not used according to technical datas and then failures begin to occur at the feeding system. Reasons of probable cancellation of Contactors:

Generally, contactors are the devices, which do not damage easily. If the selection is made correctly and operating conditions are not out of order, contactor can make millions times opening and closing safely. The reasons of the cancellation and their solutions are given below.

Excessive length of cable of command circuit (coil) can cause some problems. Voltage is low during the long cables and this reason makes the closing difficultly and over big cross-sectioned cable capacitance obstruct opening. Generally advised cable cross-selection and length are mentioned in catalogues. If the command circuit is longer than the advised value, higher contactor and more lower coil voltage, resistance or inductive impedance connection should be used.

Dirt or foreign particles in the contactor, hard atmosphere conditions and corrosion can obstruct the closing operation of contactor. If we face a problem like this, contactor should be cleaned, appropriately. Then the circuit should be checked and modified for a more protective environment for the contactor. If there is a factor damaging the conduction, it should be removed.

Events that can cause the contactors, noisy operation is dust and having foreign particles in the air space etc, unsuitable voltage and frequency. Also defect of the nucleus surface because of long time operation. To obstruct all these, we should provide the clearness of the nucleus face and (if needed) coil changing should be made for voltage and frequency.

Changing the coil

New coil is put on by pulling up screws, which are taking place on both sides of the contactor, separating the upper parts and taking the coil out off its socket. Much attention should be paid to placing on its spring that at the bottom side, during re-assembling.

Type

Rated Current

No. of Pole

Control Capacity @ 380V (AC3)

Control Capacity @ 660V (AC3)

PCS./CTN.

CJX2-F115/3P

115A

3P

55KW

80KW

4

CJX2-F115/4P

4P

4

CJX2-F150/3P

150A

3P

75KW

100KW

4

CJX2-F150/4P

4P

4

CJX2-F185/3P

185A

3P

90KW

110KW

4

CJX2-F185/4P

4P

4

CJX2-F225/3P

225A

3P

110KW

129KW

2

CJX2-F225/4P

4P

2

CJX2-F265/3P

265A

3P

132KW

160KW

2

CJX2-F265/4P

4P

2

CJX2-F330/3P

330A

3P

160KW

220KW

2

CJX2-F330/4P

4P

2

CJX2-F400/3P

400A

3P

200KW

280KW

2

CJX2-F400/4P

4P

2

CJX2-F500/3P

500A

3P

250KW

335KW

2

CJX2-F500/4P

4P

2

CJX2-F630/3P

630A

3P

335KW

450KW

1

CJX2-F630/4P

4P

1

CJX2-F780/3P

780A

3P

450KW

475KW

1

CJX2-F780/4P

4P

1

Feature: This series big current type AC contactor is capacity of most of special industrial applications. it's also called LC1-F contactor or power contactor. it also can make mechanical interlocking AC contactor.
