Definite Purpose Magnetic Contactor

Definite Purpose Magnetic Contactor thumbnail-1
Definite Purpose Magnetic Contactor photo-1
US$ 2.78 - 7 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dixsen
Model Number:
DCK Series
Contact Supplier Request Quote Chat Now
Zhejiang Dixsen Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dixsen
Model Number DCK Series
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, 220V or 230V
Main Circuit Rating Current Other, None

Specifications

1.VDE,UL,KEMA,CE,RoHS
2.ISO9001,ISO14001,Found in 1992
3.DCK3, CJX2, CJX1, CJ19,CM,18001
4.Europ,USA,Asia,Middle east,Africa

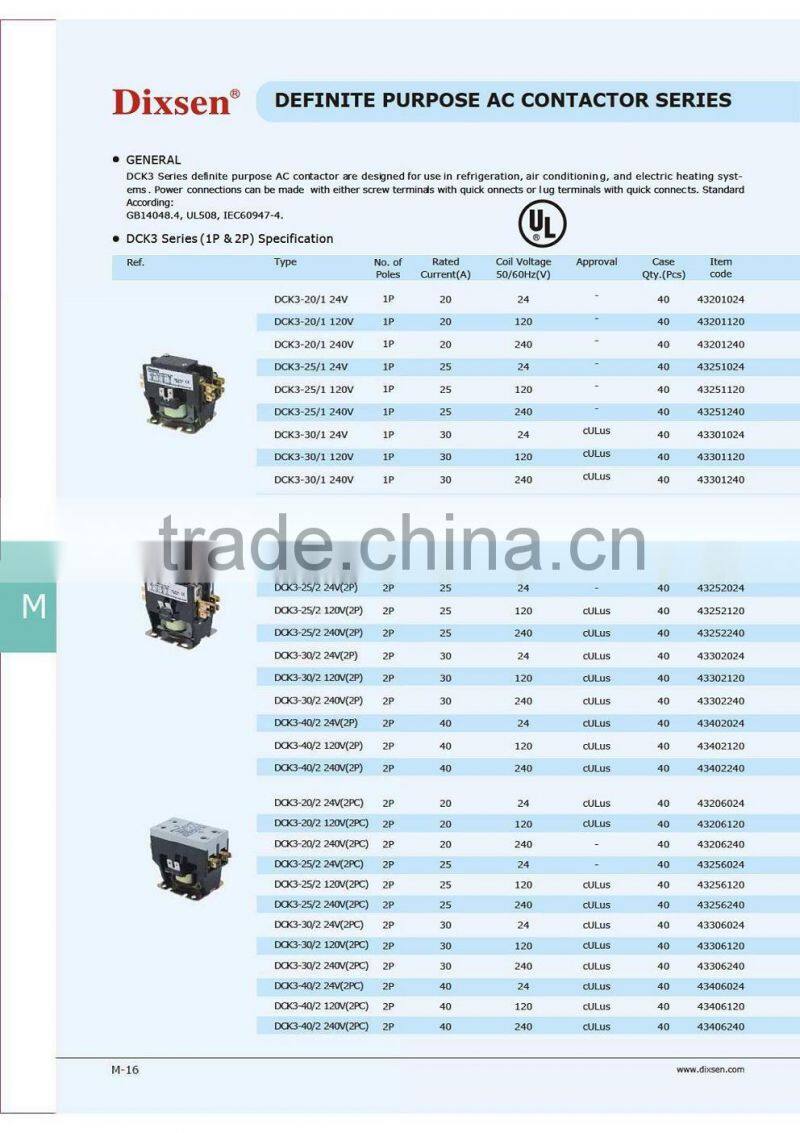

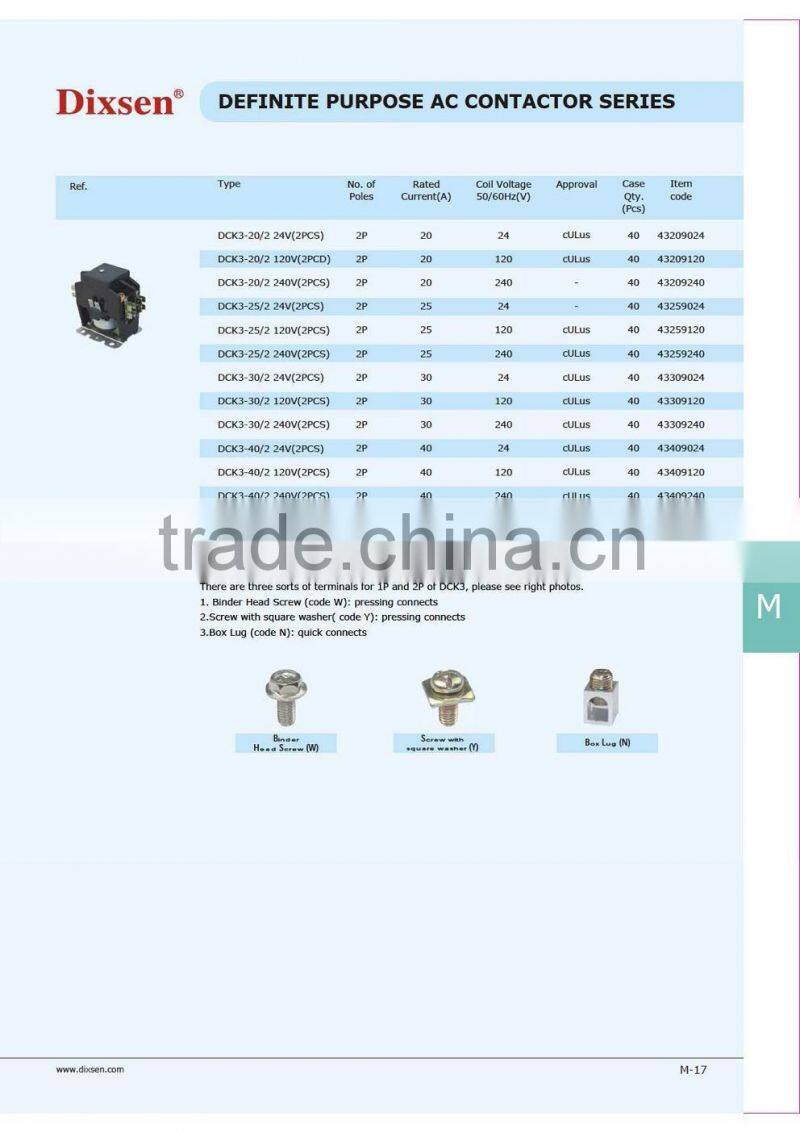

Dixsen DCK3 DP definite purpose Magnetic Contactor (UL approved)



1.Specification

DCK3 Series DP (Definite purpose) Contactors are the result of the latest advances in reliability engineering. Heat dissipation, mechanical repeatability, coil efficiency, contact material, and design have all been optimized in this series of definite purpose contactors from Dixsen. They are designed for using in refrigeration, air conditioning, and electric heating systems. Power connections can be made with either screw terminals with quick connects or lug terminals with quick connects. And this series contactors are designed to be a tougher, more compact, more versatile and quieter contactor than ever before.  Definite purpose contactors unlike general purpose contactors are non-rebuildable electronic controls designed for specific application with clearly defined operating conditions. Dixsens DP contactors are all UL listed.

Contact material: Silver cadmium oxide

Approximate mechanical life cycles:1000000

Fullfill following Standard:

UL508, IEC60947-4-1, EN60947-4-1, GB14048-4, Mees ARI-780 and CSA Standard

DCK3-30/1   24V

30

40

180

1P

24

cULus

40

DCK3-30/1 120V

30

40

180

1P

120

cULus

40

DCK3-30/1 240V

30

40

180

1P

240

cULus

40

DCK3-20/2 120V

20

25

120

2P

120

cULus

40

DCK3-20/2 240V

20

25

120

2P

240

cULus

40

















DCK3-25/2 120V

25

30

150

2P

120

cULus

40

DCK3-25/2   24V

25

30

150

2P

24

cULus

40

















DCK3-30/2   24V

30

40

180

2P

24

cULus

40

DCK3-30/2 120V

30

40

180

2P

120

cULus

40

DCK3-30/2 240V

30

40

180

2P

240

cULus

40

















DCK3-40/2   24V

40

50

240

2P

24

cULus

40

DCK3-40/2 120V

40

50

240

2P

120

cULus

40

DCK3-40/2 240V

40

50

240

2P

240

cULus

40

DCK3-25/3   24V

25

30

150

3P

24

cULus

32

DCK3-25/3 120V

25

30

150

3P

120

cULus

32

DCK3-25/3 240V

25

30

150

3P

240

cULus

32

















DCK3-30/3   24V

30

40

180

3P

24

cULus

32

DCK3-30/3 120V

30

40

180

3P

120

cULus

32

DCK3-30/3 240V

30

40

180

3P

240

cULus

32

















DCK3-40/3   24V

40

50

240

3P

24

cULus

32

DCK3-40/3 120V

40

50

240

3P

120

cULus

32

DCK3-40/3 240V

40

50

240

3P

240

cULus

32









Definite purpose magnetic contactor



  Definite purpose magnetic contactor





2. Company show

Definite purpose magnetic contactor



 Definite purpose magnetic contactor



Definite purpose magnetic contactor



Workshop

Definite purpose magnetic contactor



Exhibition

Definite purpose magnetic contactor

Certificate

Definite purpose magnetic contactor



3. Production series

Definite purpose magnetic contactor



Definite purpose magnetic contactor



4. Packing show

Definite purpose magnetic contactor

....
