Mechanical Injector and Double Spring Nozzle Tester -PQ-400
- QINGDAO
- Credit Card PayPal
You May Like
-
PQ-400 Nozzle Tester with Air supply meter,nozzle injection tester
-
PQ-400 Nozzle Tester with Air supply meter,nozzle injection tester
-
PS400A-II fuel pressure tester,pressure gauge accuracy rating 0.4
-
(Internal pressure meter) PQ400 double spring injector and nozzle tester
-
diesel test equipment ! PS400A-I nozzle injector tester
-
HY-I diesel injector nozzle tester cast iron machine
Product Details
Type | Engine Analyzer | Voltage | 220v | |
Certification | ce | Applicable Models | nozzle tester | |
Place of Origin | Shandong, China | Brand Name | HAIYU | |
Model Number | HY-PQ400 |
WOD PACKAGE 50KG
Product Description
Specifications
1.(Mechanical Injector and Double Spring Nozzle Tester -PQ-4002.perfect design
3.easy operation
4.accurate measure

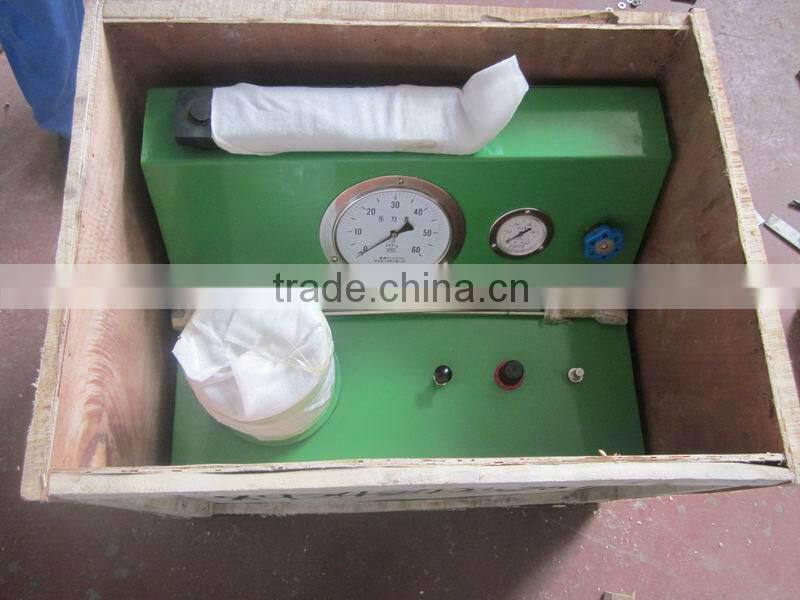

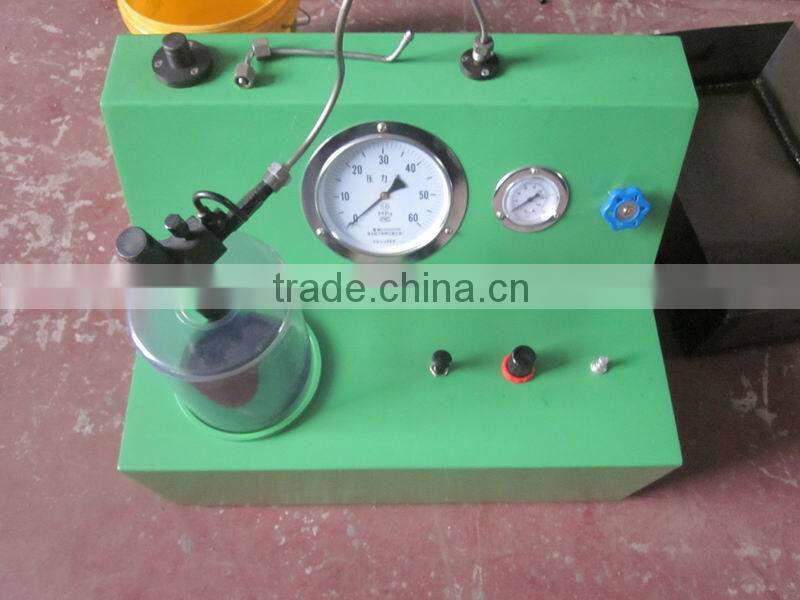

PQ-400 Double Springs Nozzle Tester
The tester allows to test and calibrate diesel double springs injectors. We are widely exporting to places like Canada, USA, Tanzania, Indonesia, South America and Middle East.
Functions:
1. Equipment with a manometric gauge for internal pressure regulation
2. Digital display permits to calibrate the injector opening pressure
3. One shot and continuous spraying test
4. Rate of oil pressure and air pressure is 50:1
5. Special equipment test DOUBLE SPRINGS INJECTORS and USUAL INJECTORS.
Opeartion:
Main Button:
A: Internal pressure meter.
B: Air supply meter.
C: Air supply throttle.
If the throttle whirls in clockwise, quantity of air input will be less, and oil input is less as well. Inverse, the input oil will increase.
D: Governor valve
If the governor valve circumgyrate to the bottom, rate of oil pressure and air pressure is 100:1. For example, when air pressure is 7kg, the oil pressure will be 700kg.
E: Air switch valve.
The air valve is opened by pulling, and closed by pushing.
