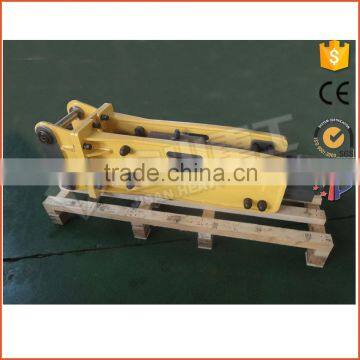

hydraulic rock breaker hammer with 85mm chisel
for 7-14 tons excavator

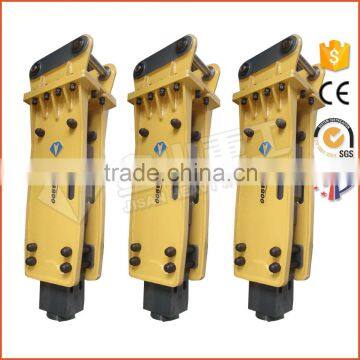

JINSAN hydraulic breakers mainly include three types:Top type, Box type and Side type.If necessary,we can also process as customer's request
Advantages:
1.apply to all kinds of excavators and working condition.
2.Longer use, easy maintenance
3.Many years of technical experience lead the fine quality to stability.
4.The latest heat treatment technology are used to main parts such as piston, pin roll and so on.
Features:
1.The structural design of enhanced impact energy increased the piston and cylinder stroke,making the hydraulic breaker reach the highest work efficiency.
2.The using of high-quality material and Precision process ensured the quality of products.
3.Powerful " hydraulic + nitrogen " impact system guaranteed the force of hammer’s movement.
4.JISAN hydraulic hammer can be able to adjust the force and frequency due to easy controlling of the flow.
Parameters
Item/model |
Unit |
JSB400T |
JSB600T |
JSB800T |
JSB900T |
JSB1600T |
JSB1900T |
Weight |
Kg |
254 |
264 |
486 |
853 |
1679 |
1898 |
Length |
Mm |
1347 |
1528 |
1920 |
2260 |
2695 |
2810 |
Pressure |
Kg/m2 |
110-140 |
110-160 |
120-170 |
150-170 |
160-180 |
160-180 |
Flow |
L/min |
25-45 |
30-45 |
45-85 |
80-120 |
120-160 |
130-170 |
Rate |
Bpm |
500-900 |
500-800 |
400-700 |
400-700 |
400-700 |
400-600 |
Hose |
Inch |
1/2 |
1/2 |
3/4 |
3/4 |
1 |
1 |
Chisel |
Mm |
68/70 |
75 |
85 |
100 |
135 |
140 |
Suit |
Ton |
3.0-5.5 |
4.0-7.0 |
7.0-14 |
11-16 |
19-26 |
19-26 |
JINSAN hydraulic breaker can be widely used to breaking rock, paving road, building demolition, mining, dismantling engineering and special engineering etc.

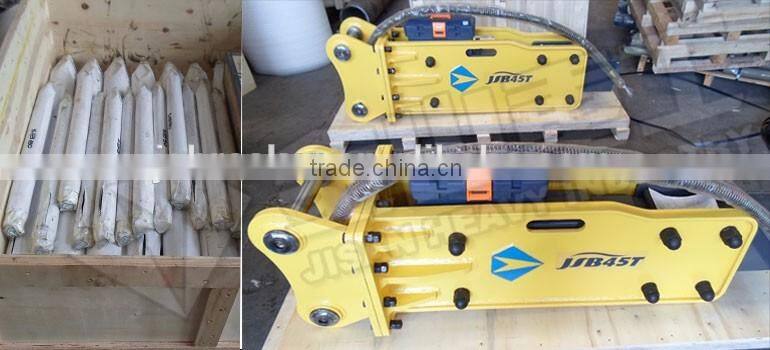

The standard free spare parts: two Chisels, two oil hoses, one Nitrogen Cylinder, one tool box, one Nitrogen pressure gauge and a pair of gloves.
Packaging & Shipping
package: export standard wooden cases or Other packaging forms according to the customer's requirements
delivery: Usually 5-7days after down payment.
1. 7Days*24Hours after-sales service by email and phone
2. Your inquiry will be replied in 24 hours during workdays
3. Our customer-oriented sales and technical team are always at your service
4. OEM Service available
5. Warranty: 14 months warranty for hydraulic rock breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
