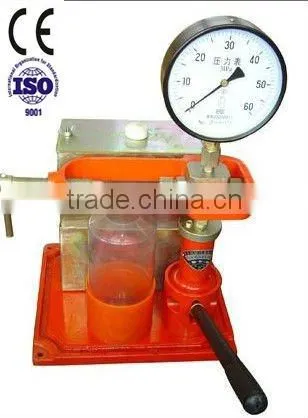

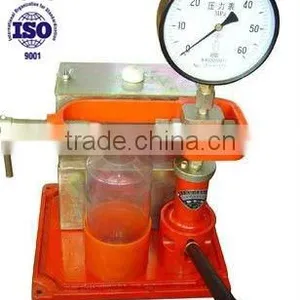

HY- Fuel Nozzle Tester
Nozzle tester is used to calibrate the injection pressure, fuel atomization, injection angle and tightness of the needle valve lf the diesel injector assembly to ensure good power performance and engine economy.
Technical Parameter
1. Diameter of pressure gauge: 150mm
2. Pressure gauge range: 0∼60MPa
3. Pressure gauge accuracy rating: 1.6
4. Largest tested pressure: 60MPa
5. Capacity of fuel tank: 3.37L
6. Overall dimension (L×W×H):315mm×285mm×490mm
7. Net weight: 30Kg
8. Fixture included
Performance of the nozzle tester
Block the joint where the nozzle is connected. Pump oil to a pressure -over 30 MPa. Then stop pump and watch the pressure descending from 30 MPa. It is less than 2 MPa. within 3 minutes.
Maintenance of the nozzle tester.
1.1 Calibrating fuel must be good quality light diesel deposited over 48 hours.
2.2 When filling fuel, filter it with silk-cloth, Do not fill the tank with unfiltered diesel.
3.3 Cover the tester with anti-dust cover after testing.
