Specifications
1.accurate test2.high reliability
3.test for EuroII injector
4.fast delivery

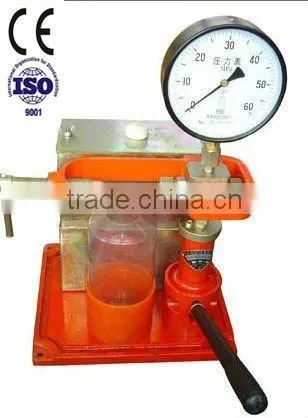

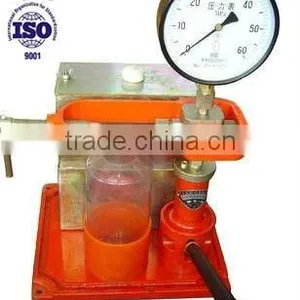

HY-1 Nozzle Tester
1.Sagety precaution
Being operated, the nozzle tester must be far away from flame or high temperature place , such as welding and so on.
2.Purpose of the nozzle tester
It is used to adjust and calibrate the injecting pressure, atomizing quality, injecting angle and needle valve seas of nozzle of diesel ingine in order to ensure cxeelent power and economic performance of diesel engine.
1. injecting pressure
2. atomizing quality
3. injecting angle
4. needle valve seals
Main technical parameters
1. diameter of pressure gauge 150mm
2. pressure gauge range 0∼60MPa
3. pressure gauge accuracy rating 0.4
4. largest tested pressure 60MPa
5. capacity of fuel tank 1.6L
Functions:
1. Test sealing of fuel injector base, fuel injection needle and fuel injection nozzle.
2. Test and calibrate opening pressure of fuel injector.
3 .Test spray pattern and distributor of fuel injector.
4. Test sound of needle valve vibration.
