Help CenterHandle to Operate :HY-PS400A-II Diesel Nozzle Tester(Bosch S60H)
Related Products
-
HY-PS400A-I Diesel Nozzle Tester With Diameter of Pressure Gauge: 150mmNegotiableMOQ: 1 Set -
ECU-Common Rail Diesel Injector Tester for Solenoid Injector and PumpNegotiableMOQ: 1 Set
-
Diesel Nozzle Tester HY-1,test Opening PressureNegotiableMOQ: 1 Unit
-
PS400A-II Diesel Injector Nozzle Tester, Plastic Tester BodyNegotiableMOQ: 1 Set
-
Fuel Injector Nozzle Tester, Cast Iron Tester Body.US$ 50 - 200MOQ: 1 Unit
Specifications
1.handle to operate2.atomizing quality
3.seal of needle
4.0-60MPa
5.high testing accuracy

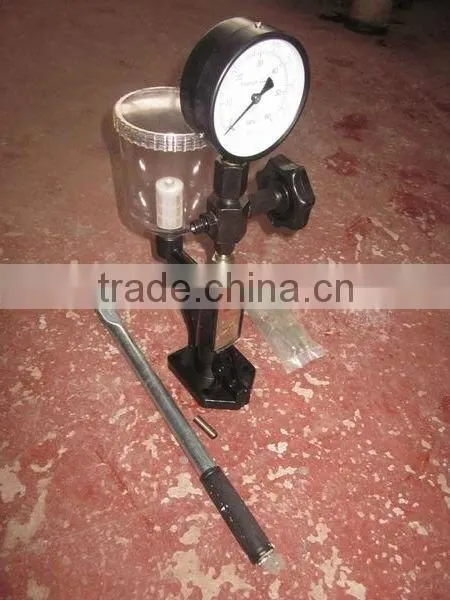

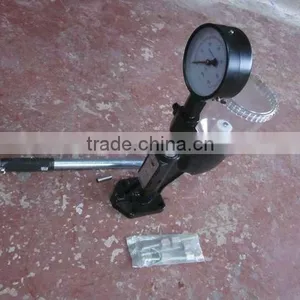

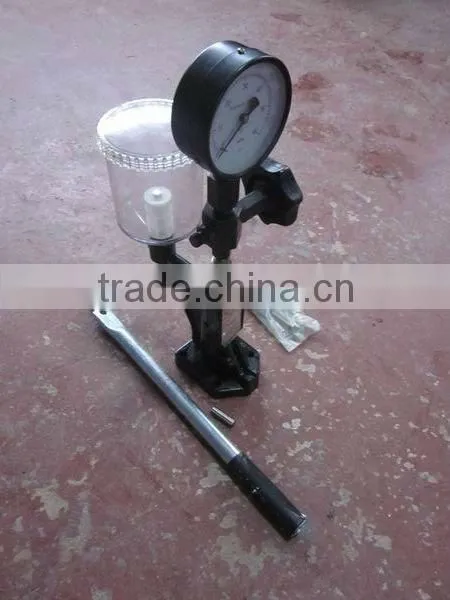

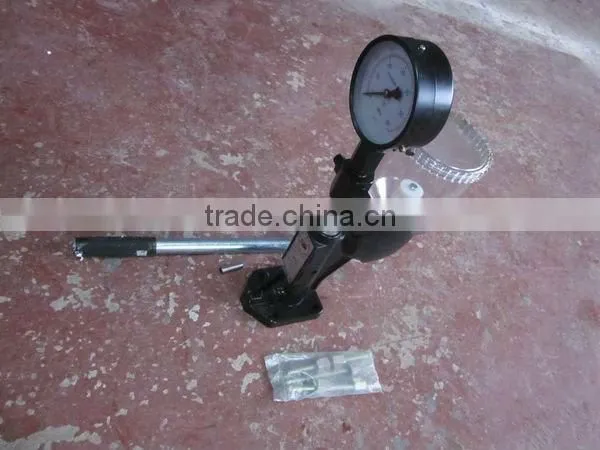

PS400A-II Nozzle Tester
Nozzle Verifier is used to adjust and check the injection pressure, atomization quality, and leakproofness of needle valve of diesel fuel injector assembly, to ensure the good power performance and economy.
Experiment of Atomizing Quality
Watch the atomizing quality of fuel injecting. The fuel grain should be tiny, well distributed. No fuel current (or drop) seen with eyes. No obvious fuel stain appears if it is injected on the oil absorbing paper. Color of fuel stain from center to outer circle should become lighter and form well distributed
circle.Pumping fuel action should be quick. There is no fuel drop or fuel dropping after pumping fuel. Atomizing should be correct. Its taper angle should be within specified range.
Main technical parameters

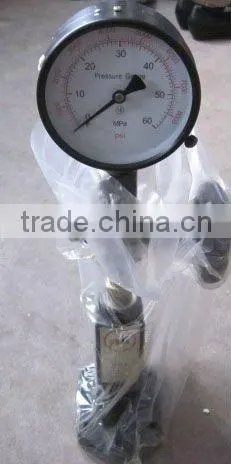

1. diameter of pressure gauge 150mm
2. pressure gauge range 0∼60MPa
3. pressure gauge accuracy rating 0.4
4. largest tested pressure 60MPa
5. capacity of fuel tank 1.6L
6. overall dimension (L×W×H ) 250mm×150mm×480mm
7. net weight 5Kg
8. High testing accuracy
