Specifications
test inline pump and distribution pumpindsutrial computer display

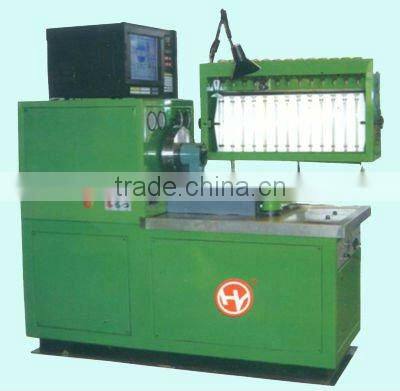

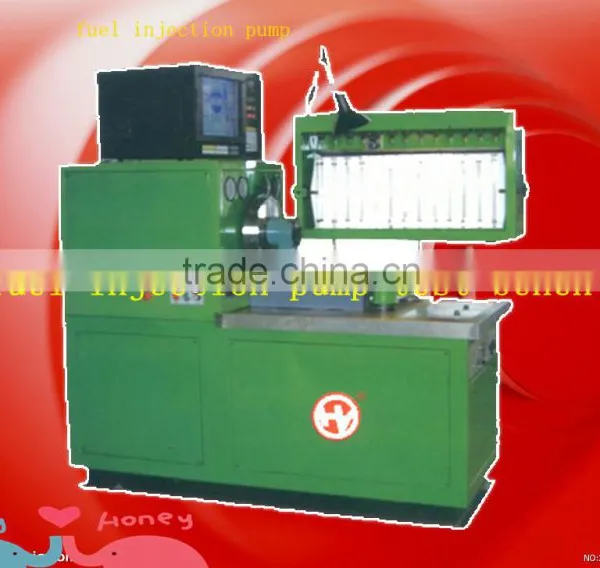

HY-NK Equivalent to Bosch EPS711 Diesel Feul Test Bench
<<<<<<<Main function:
1. Adjusting each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Adjusting the performance of different speed regulator.
4. Checking of the sealing of injection pump.
5. Testing of oil return of distributing pump.
6. Checking of the pressure compensatory device of distributing pump.
7. Measuring of the internal pressure of distributor pump.
8. Measuring of the advance angle.
9. Measuring the travel meters of gear lever
<<<<<<Parameter:
Model of test stand | HY-NK |
Rotation speed range of main shaft | 0~4000 |
Rotation direction of main shaft | Positive, negative |
Testable cylinders of pump | 12 |
Maximum output power | 5.5/7.5/11/15/18.5 |
Height from center line of main shaft to work table(mm) | 125 |
Oil supply pressure of fuel system(MPa) | Low pressure≥0.4 High pressure≥4.0 |
Supply capacity of fuel system(l/m) | ≥8 |
Oil measuring frequency | 0~1000 |
Control temperature of fuel oil(°C) | 40±2 |
D.C. power source | 12/24V |
Power of motor | 7.5/11/15kw |
Overall dimension | 1820mm×850mm×1800mm |
Weight of test stand | 750kg |
