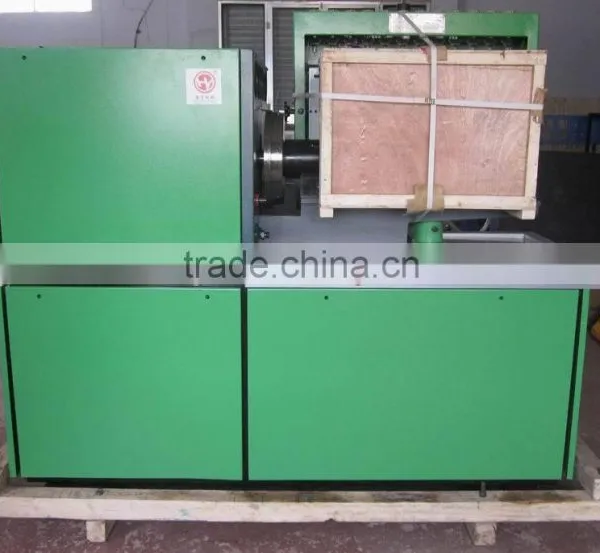

HY-WKD High Quality Diesel Fuel Pump Test Bench BOSCH ON SALE 2013

Name: HY-WKD High Quality Diesel Fuel Pump Test Bench BOSCH ON SALE 2013
Brand: Haiyu
SKU: 114683767
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Haiyu

Model Number:

HY-WKD

Taian Haiyu Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Haiyu

Model Number HY-WKD

Power Electronic

Usage Auto Testing Machine

Specifications

Pump test bench
Computer with digital tube displayed at the same time
Testing mechanical in-line diesel pump

HY-WKD Fuel Injection Pump Test Bench

Main function:

1. Debugging the uniformity and quantity of the oil supply of each cylinder in injection pump

2.Debugging the test point and interval angle of oil supply of injection pump

3.Debugging the performance of different speed governor

4.Checking the tightness of injection pump

5.Testing the quantity of oil return of distribution (dispensing)pump

6.Checking pressure compensator of distribution (dispensing)pump

7.Measuring the pressure of pump chamber

8.Measuring the advance angel

9. Measuring the travel of gear lever

Parameters:

Model of test stand	HY-WKD
Rotation speed range of main shaft	0~4000
Rotation direction of main shaft	Positive, negative
Testable cylinders of pump	12
Maximum output power	5.5/7.5/11/15/18.5
Height from center line of main shaft to work table(mm)	125
Oil supply pressure of fuel system(MPa)	Low pressure≥0.4 High pressure≥4.0
Supply capacity of fuel system(l/m)	≥8
Oil measuring frequency	0~1000
Control temperature of fuel oil(°C)	40±2
D.C. power source	12/24V
Power of motor	7.5/11/15kw
Pressure of air way(Mpa)	-0.1~1
Overall dimension	1820mm×850mm×1800mm
Weight of test stand	750kg
