yb vane pump V-Belt Drive / direct drive coupling / flexible drive coupling
USD $300 - $800
/ Piece
5 Pieces(Min.Order)
- 400 Piece / Pieces per Month
- Shang hai
- T/T Credit Card
You May Like
-
coupling CZ50-250 for power station
-
screw pump coupling HSNH280-54A for power plant
-
Customized flexible steel motor shaft coupling pump coupling
-
China manufacturer Motor side coupling DTPD30FM002 for power generation
-
Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
-
Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
Product Details
| Structure: | Universal | Flexible or Rigid: | Rigid | Standard or Nonstandard: | Standard |
| Material: | Steel | Brand Name: | Jia song | Place of Origin: | Shanghai, China |
Product Description
Specifications
vane pump / direct drive coupling / flexible drive couplingpump is with by-pass valve built-in
vane pump / direct drive coupling / flexible drive coupling
Product Details: vane pump
Main Features
YB series self-priming rotary vane pump is with by-pass valve built-in. The pump uses a rotor with sliding vanes to drive the liquid transfer. The material of construction is nodular cast iron with self-lubricating vanes. Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps. The pump has its obvious advantage in the transmission of high flow at low revolution.
Construction
Flow Rate
| Model | Size/Flow Rate/Speed | 650 RPM | 600RPM | 550 RPM | 500 RPM | 450RPM | 400 RPM | ||||||
| G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | ||
| YB-50 | 50mm/2'' | 80 | 300 | 72 | 270 | 64 | 240 | 56 | 210 | 48 | 180 | 40 | 150 |
Performance Data
| Model | YB-50 | |
| Rated Speed | 640RPM | |
| Power | HP | 3.0 |
| KW | 2.2 | |
Application
Oil tank truck
Fleet refueling.
Lube oil
Aviation refuelers
Transmission of petrochemicals, gasoline, diesel, biofuel, solvent, etc.
Installation
With cardan shaft or hydraulic motor, the pump can be installed on oil tank trucks. And also it can be installed on metal baseplates with motor or diesel engine, using for high flow fuel dispensers and floating fuel equipments which are compose of pumps and flowmeters. Equipped with Teflon seals, the pump can also transfer a wide variety of solvent in the petrochemical industry.

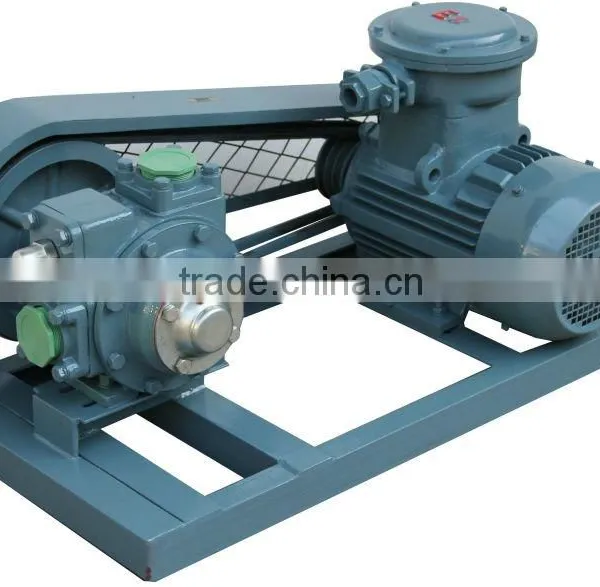

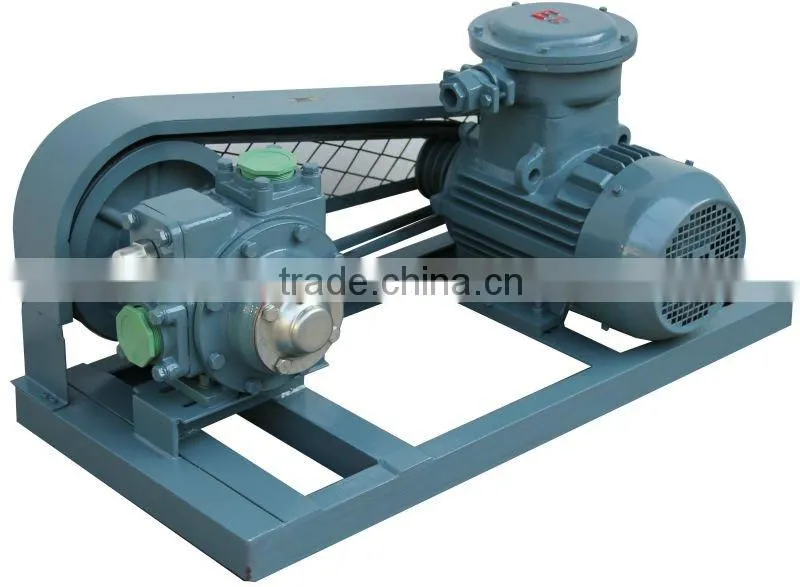

Product Images: yb coupling drive
