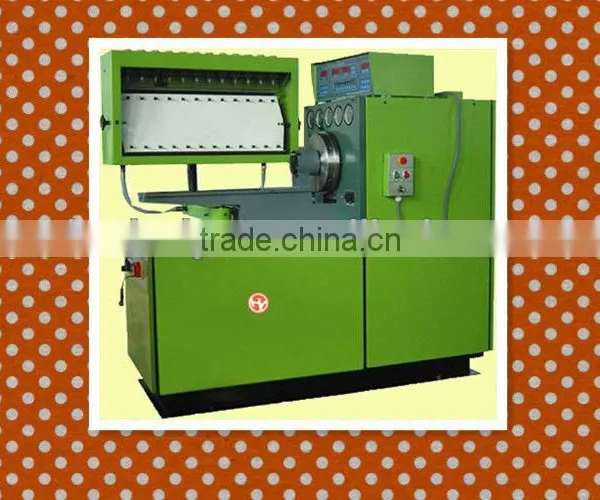

HY-WK Diesel Pump Test Bench,computer with digital tube displayed
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal

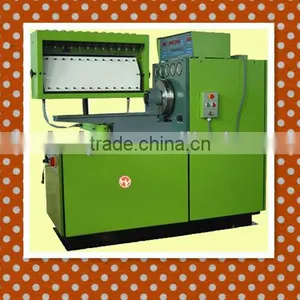

- HY-WK Diesel Pump Test Bench,computer with digital tube displayed
- HY-WK Diesel Pump Test Bench,computer with digital tube displayed
- HY-WK Diesel Pump Test Bench,computer with digital tube displayed
- WKD test inline pump test bench made in China
- WKD test inline pump test bench for inline pump
- WKD test inline pump test bench some discount
Product Details
Type: | Engine Analyzer | Voltage: | 220V/380V | Power: | 11kw |
Certification: | ISO9001:2008 | Place of Origin: | Shandong, China | Brand Name: | Haiyu |
Model Number: | HY-WK |
Packaging Details
wood package for safe delivery
Product Description
Specifications
1.fuel pump test bench2.simple operation
3.for VE pump
4.accurate measurement
5.380V,3phase
HY-WK fuel injection pump test bench( in-line pump and distributor pump test bench )
Main function:
- debugging the uniformity and quantity of the oil supply of each cylinder in injector pump
- debugging the test point and interval angle of oil supply of injector pump
- debugging the performance of different speed governor
- checking the tightness of injector pump
- Testing the quantity of oil return of distribution pump
- checking pressure compensator of distribution pump
- measuring the pressure of pump chamber
- measuring the advance angel
- measuring the travel of gear lever
Configuration:
- Power:11KW/15KW
- Speed Range: stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will
- the number of station can be debugged:12
- fuel supply:0-0.4MPa(low) 0-4MPa(high) filtration:10um
- fuel can be cooled by air and heated by heater. The temperature can be displayed in the screen and controlled automatically.
- overall dimension:length:2100 width:700 height:1470
- net weigh:1000kg
- FUNCTIONS
1. Frequency-changing and speed-regulation
2. Measurement of the delivery at various rotation speeds
3. Checking of each line's injection timing with static
4. Checking of the mechanical speed governors
5. Checking of the electromagnetic vale of distributor pump
6. Checking of the pneumatic speed governors
7. Checking of the pressure compensators
8. Measurement of the reflux delivery of distributor pump
9. Measurement of the distributor pump's body internal pressure (special order)
10. Checking of sealing of the in-line injection pump body1.Operating position can be on both sides
2.tank capacity:45L
3.temperature stabilization:40°C±2°C
4.air pressure:-0.03—0.3 MPa
5.test oil filtering unit:5u
6.DC supply: 12V/ 24V
7.Three figures show that the fuel temperature control
8.feed pressure: Low pressure 0-0.4Mpa high pressure 0-4Mpa
9.4-digit display injection advance angle
10.displayed: Pressure Vacuum
11.adjustable rotation speed range:0-4000rpm
12.3-phase power supply:220V/60Hz 380v/50hz
13.overall dimensions:2100×850×1700(mm)
weight:700kg
15. center height:125mm flywheel:0.8kgm2
16.output :7.5kw 11kw 15KW 18.5kw
digital display:
working picture:
Company Profile
Taian Haiyu Machinery Co., Ltd. is located at the foot of famous Mountain Tai in the north development zone of Taian City which is between spring town - Jinan and the hometown of Confucius - Qufu. We enjoy convenient transportation and Taian City is at the junction of Beijing-Fuzhou Highway and Beijing-Shanghai Highway.
Taian Haiyu Machinery Co., Ltd. is a modern technological company combing research, production, sale and service. We have a number of engineers working on designing and producing engine testing equipment and some sophisticated staff members specialized in computer software and hardware design. In recent years, we have cooperated with research institutions of universities. Our company succeeds in researching new series of HY injection pump test benches and injector test benches. Functions of the equipment have reached the internationally advanced level. We fully meet the needs of customers. Besides, we can also design particular testing benches according to customers' requests. In order to meet the requirements of lowering exhaust in diesel engine field and achieve European III standard, our company researches and develops common rail system test benches which have excellent functions and high accuracy. Our test benches have been widely used by internal engine industry and are exported to more than 30 countries and regions, including Asia, Africa and America.
Our company also has long-term cooperation with Guanghua Gas and imports SMC gas meter boxes, stainless steel meter boxes, cold plates and other metal products.
We adhere to the principle of "sincere cooperation" and warmly welcome customers from all over the world to visit us. We hope that you can work together with us for a beautiful future.
