MSF-20N/25N Diesel Fuel Dispenser Casting Solenoid Valve
US$ 1 - 50
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shang hai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solenoid Valve / Fuel Dispenser Solenoid Valve / Casting Two-flow Cotrol Solenoid ValveUS$ 10 - 50MOQ: 20 Pieces -
Solenoid Valve / Flameproof Two-flow Control Solenoid Valve / Fuel Dispenser Solenoid ValveUS$ 1 - 50MOQ: 20 Pieces
-
Solenoid Valve / Flameproof Solenoid Valve / Fuel Dispenser Solenoid ValveUS$ 10 - 50MOQ: 20 Pieces
-
Solenoid Valve / Magnetic Valve / Casting Solenoid ValveUS$ 10 - 50MOQ: 20 Pieces
-
Fuel Dispenser Solenoid Valve / Solenoid Valve / Magnetic ValveUS$ 10 - 50MOQ: 20 Pieces
Standard or Nonstandard
Standard
Structure
Control
Pressure
Low Pressure
Power
Solenoid
Material
Brass
Temperature of Media
Low Temperature
Media
Gas
Port Size
3/4" 1"
Place of Origin
Shanghai, China
Model Number
MSF-20N/25N
Brand Name
Jia song
Specifications
MSF-20N/25N diesel Fuel Dispenser Casting Solenoid ValveMSF-20N/25N diesel Fuel Dispenser Casting Solenoid Valve
Product Details: MSF-20N/25N Solenoid Valves
Main Features
Controlled by built-in overlapped or parallel-connected electromagnetic precursor valve, with advanced craft and reliable action;
Diaphragm of main valve adopts imported special rubber, with high anti-corrosion and resisting low temperature at -40°C;
Special stainless steel magnetic material never rust or generate remanent magnetism;
Close the main valve when the working pressure is 0.3-0.4MPa, and the small flow system will be 3-3.5L/min, which can be designed according to users' requirements.
Technical Specification
| Type | mSF-20N | mSF-25N |
| Medium | Gasoline , Kerosene , Diesel | |
| Working Pressure | 0.035MPa--0.35MPa | |
| Flow | 3--50L/min | 80-90L/min |
| Working Voltage | AC220V AC110V DC24V DC12V | |
| Diameter | 20mm 3/4'' | 25mm 1'' |

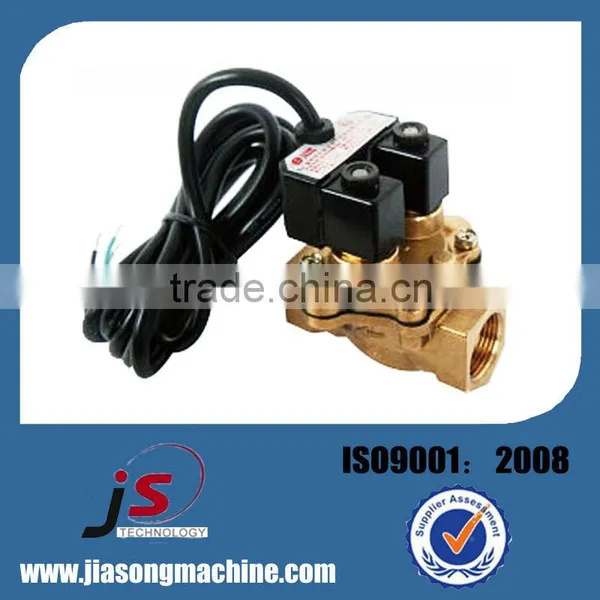

Product Images: Solenoid Valves
