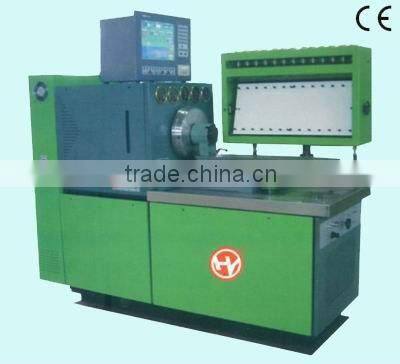

Machinery Pump Test Bench
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Haiyu | |
| Model Number | HY-WKD | Power | Electronic | |
| Usage | Auto Testing Machine |
Wooden case fit for delivery.
length:2100mm width:700mm height:1470mm
Product Description
Specifications
Machinery Pump Test Bench1.Voltage:380V/220V, 50/60HZ
2.Output Power:11kw
3.Weight: 900kg.
4 2100*700*1470mm
Mechanical Pump Test Bench
| Power | 11KW/15KW |
| Speed Range | stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will |
| Number of station can be debugged | 12 |
| Fuel supply | 0-0.4MPa(low pressure) 0-4MPa(high pressure) |
| Overall dimension | length:2100mm width:700mm height:1470mm |
| Net weight | 1000kg |
| Function | debugging the uniformity and quantity of the oil supply of each cylinder in injector pump |
| debugging the test point and interval angle of oil supply of injector pump | |
| debugging the performance of different speed governor | |
| checking the tightness of injector pump | |
| Testing the quantity of oil return of distribution pump | |
| checking pressure compensator of distribution pump | |
| measuring the pressure of pump chamber | |
| measuring the advance angel | |
| measuring the travel of gear lever |
FUNCTION
1. Adjusting each cylinder delivery at any speed.
2. Adjusting point and interval angle of oil supply of injection pump.
3. Adjusting the performance of different mechanical governor.
4. Checking of the sealing of injection pump.
5. Testing of oil return of distributing pump.
6. Checking of the pressure compensatory device of distributor pump.
7. Measuring of the internal pressure of distributor pump.
8. Measurimg of the advance angle.
9. Measuring the travel meters of gear lever.

Company Profile

                    Taian Haiyu Machinery Co., Ltd. is located at the foot of famous Mountain Tai in the north development zone of Taian City which is between spring town - Jinan and the hometown of Confucius - Qufu. We enjoy convenient transportation and Taian City is at the junction of Beijing-Fuzhou Highway and Beijing-Shanghai Highway. Taian Haiyu Machinery Co., Ltd. is a modern technological company combing research, production, sale and service. We have a number of engineers working on designing and producing engine testing equipment and some sophisticated staff members specialized in computer software and hardware design. In recent years, we have cooperated with research institutions of universities. Our company succeeds in researching new series of HY injection pump test benches and injector test benches. Functions of the equipment have reached the internationally advanced level. We fully meet the needs of customers. Besides, we can also design particular testing benches according to customers' requests. In order to meet the requirements of lowering exhaust in diesel engine field and achieve European III standard, our company researches and develops common rail system test benches which have excellent functions and high accuracy. Our test benches have been widely used by internal engine industry and are exported to more than 30 countries and regions, including Asia, Africa and America. Our company also has long-term cooperation with Guanghua Gas and imports SMC gas meter boxes, stainless steel meter boxes, cold plates and other metal products. We adhere to the principle of "sincere cooperation" and warmly welcome customers from all over the world to visit us. We hope that you can work together with us for a beautiful future.
