Specifications
380V,three phrase four wireStable rail pressure
simple operation
speed range:0-4000rpm

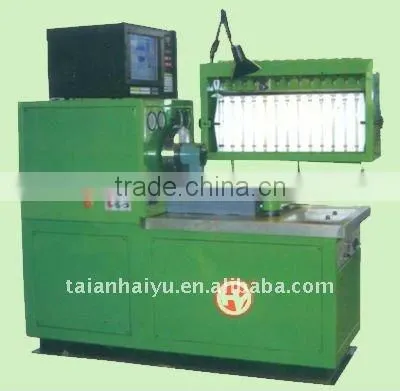

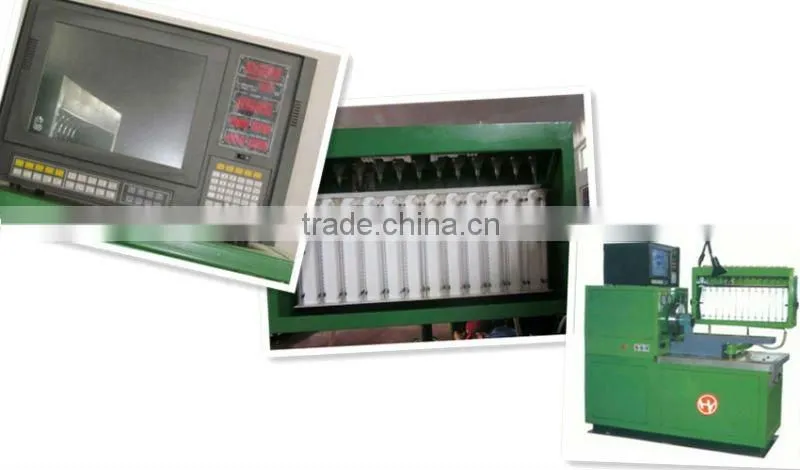

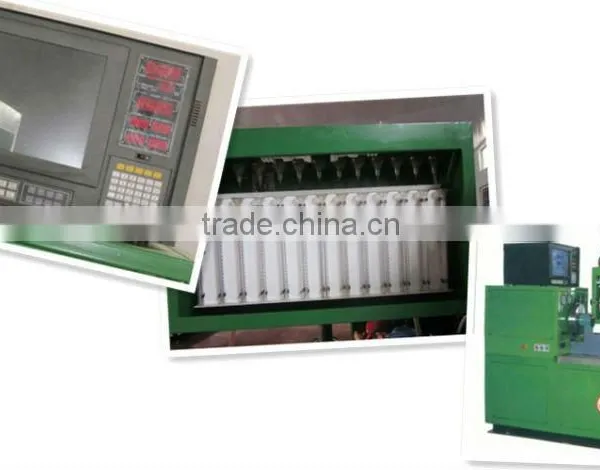

HY-NK Diesel Fuel Injection Pump Test Equipment
Function>>:
1. Adjusting each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Adjusting the performance of different speed regulator.
4. Checking of the sealing of injection pump.
5. Testing of oil return of distributing pump.
6. Checking of the pressure compensatory device of distributing pump.
7. Measuring of the internal pressure of distributor pump.
Paramter>>>:
Oil supply pressure of fuel system(MPa) |
Low pressure≥0.4 High pressure≥4.0 |
Supply capacity of fuel system(l/m) |
≥8 |
Oil measuring frequency |
0~1000 |
Control temperature of fuel oil(°C) |
40±2 |
D.C. power source |
12/24V |
Power of motor |
7.5/11/15kw |
Speed range |
stepless frequency conversion, multi-gear speed overhead |
speed |
50-400 rpm or at will |
adjustable workstation |
12 cylinders |
fuel supply |
0-0.4MPa(low pressure) 0-4MPa(high pressure) |
Filtering precision |
10um
|
Fuel system |
using radiator, air temperature display and automatic control |
