Specifications
1.Pump Test Machine2.simple operation
3.Alpha frequency converter
4.test EuroII pump
5.three phrase four wire

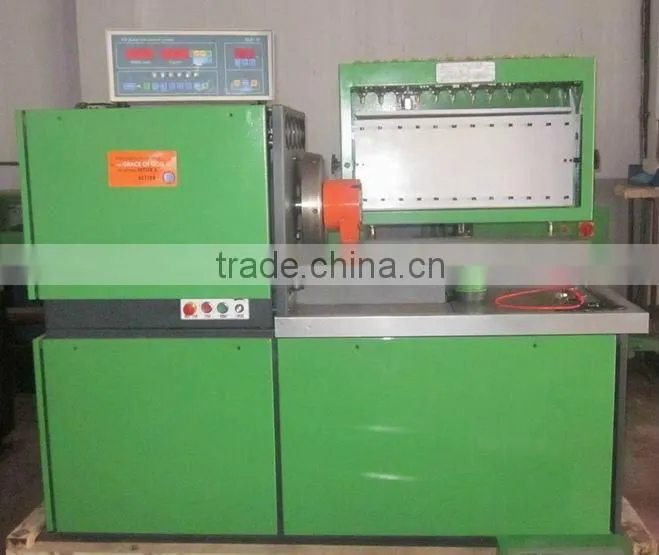

HY-WK Fuel Injector Pump Test Machine
Usage:
When testing different pumps, the test bench use proper attachments, and carry out the following debugging.
1 Test different cylinder oil supply condition quantity and oil supply evenness under different revolution
2 Test oil supply starting point and interval angle
3 Test working performance
4 Test pressure compensation performances
5 Test cold starting device and solenoid valve performance
6Test distribution pump oil return under different revolution (optional)
7 Test distribution pump inner pressure under different revolution
8 Test injection pump seal performance
9 Test oil transfer pump self priming performance
10 Save, amend oil injection pump debugging date and form database
11 Check commons diesel injection pump debugging data quick
1 Output power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw(Optional)
2 Power supply: 3-Phase, 380V/50HZ, 220V/60HZ(Optional)
3 DC.Supply:12/24V
4 Test pump cylinders: 12 pieces
5 Range of speed:+/-4000RPM
6Fuel pressure: 0-0.6Mpa, 0-6Mpa, 0-0.16Mpa, 0-1.6Mpa
7 Height of spindle centers:125mm
8Principle axis revolution: ±1r/min
9 Fuel supply drive motor power: 1.1KW
Checking of each cylinder's injection timing with static.
Checking of the LDA.
Checking of the mechanical governor.
Checking of the pneumatic governor.
Checking of the vacuum capacity of governor.
Measurement of the internal pressure of distributor pump body.
Measurement of the reflux delivery of distributor pump.
Testing of the electro-magnetic valve of distributor pump.
Checking of the transfer pump.
Checking of the sealing of injection pump body.
Configuration:
- Power:11KW/15KW
- Speed Range: stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will
- the number of station can be debugged:12
- fuel supply:0-0.4MPa(low) 0-4MPa(high) filtration:10um
- fuel can be cooled by air and heated by heater. The temperature can be displayed in the screen and controlled automatically.
- overall dimension:length:2100 width:700 height:1470
- net weigh:1000kg
Technical specification:
1. Directly driven by motor, variable frequency stepless speed regulation.
2. Fuel temperature controlled automatically
3. Random speed can be pre-set
4. Complete function , good reliability
5. Air supplier and vacuum supplied
