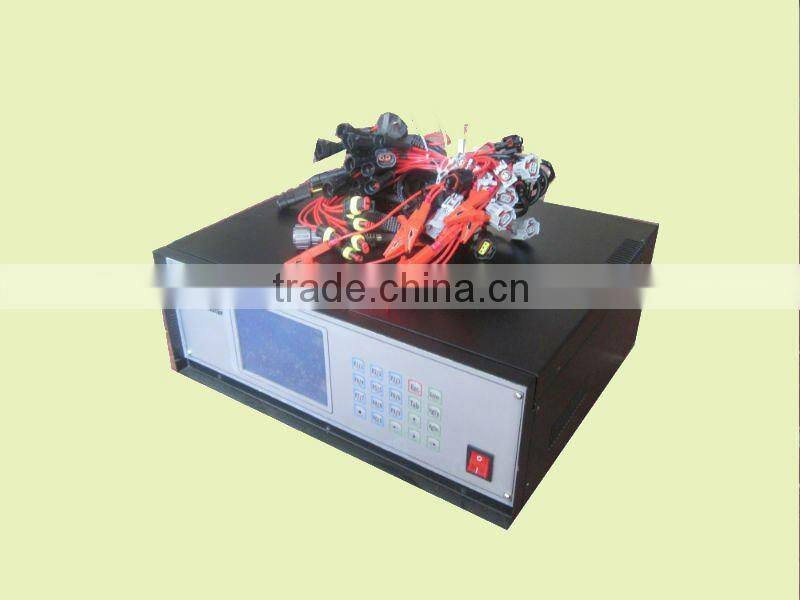

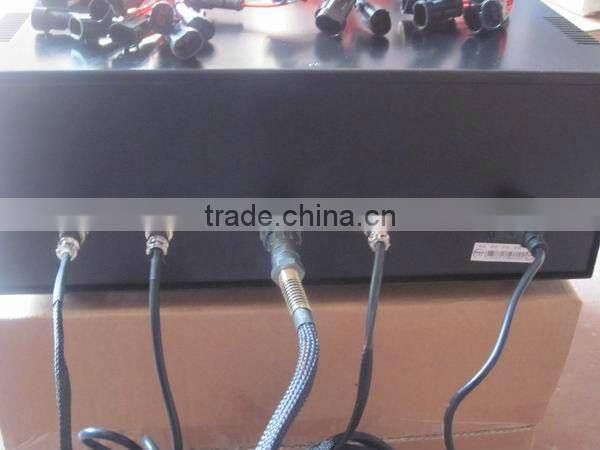

CRS3 CR Injector and Pump Tester Wooden Case, Tester
- qingdao
- T/T Credit Card
You May Like
-
ECU CRS3 Common Rail Injector and Pump Ttest Tool, Tester
-
CRS3 Common Injector and Pump Tester
-
CRI700 Tester(piezo Injector Tester) Good Tester
-
HY-CRI700 Common Injector Tester ( CE Certificate )
-
Tester, CR Injector Tester (HY-CRI700 ) Tester
-
(support English )HY-CRS3 Common Injector and Pump Tester
Product Details
| Place of Origin | Shandong, China | Brand Name | haiyu | |
| Model Number | CRS3 | Power | Electronic | |
| Usage | Auto Testing Machine |
standard package fit for delivery
Product Description
Specifications
1.tester CRS3 injector and pump tester2.CE certificate and ISO9001:2008
3.carton
4.accurate measurement
5.easy operation
CRS3 common injector and pump tester
Certificate: CE certificate and ISO9001 certificate
CRS-3 is a common rail system tester that can simulate the engine electronic control unit (ECU) to issue driving signal to drive Bosch, Denso, Delphi and Siemens high pressure common rail pump and solenoid valve common rail injector. Combining with traditional high pressure pump test bench, CRS-3 adopts high pressure common rail pump as its high pressure fuel source to test injector and finishes the testing of injecting delivery, return-fuel delivery and injector atomization under different common rail pressure and injecting frequency. By testing high pressure fuel delivery under different speed and different pressure, it can test the situation of high pressure pump.
- 1. Functions:
1.1 To integrate fuel pump control module and an injector control module.
1.2 Fuel pump control module includes 2 sets independent controlling PWM output, common rail pressure sensor signal input, and add a new function of driving 3 DRV valves at the same time.
1.3 Injector control module includes 1 set electromagnetic coils driving output, 1.4 Display by 5.7 inch screen. Operation convenient and direct.
- 2. Applications:
Fuel injection frequency and fuel injection pulse width are adjustable. Driving signal has short-circuited protection. This tester is provided with complete connectors.
2.1 Fuel Pump Testing
Bosch pump: CP1, CP2, CP3
Delphi pump: CRSP
Denso pump: HP3, HP4
Siemens pump: DCP
2.2 Fuel Injector Testing
2.2.1 Electromagnetic coils control
High voltage driving: Bosch, Denso
Low voltage driving: Delphi
Company Profile
Taian Haiyu Machinery Co., Ltd. is located at the foot of famous Mountain Tai in the north development zone of Taian City which is between spring town - Jinan and the hometown of Confucius - Qufu. We enjoy convenient transportation and Taian City is at the junction of Beijing-Fuzhou Highway and Beijing-Shanghai Highway. Taian Haiyu Machinery Co., Ltd. is a modern technological company combing research, production, sale and service. We have a number of engineers working on designing and producing engine testing equipment and some sophisticated staff members specialized in computer software and hardware design. In recent years, we have cooperated with research institutions of universities. Our company succeeds in researching new series of HY injection pump test benches and injector test benches. Functions of the equipment have reached the internationally advanced level. We fully meet the needs of customers. Besides, we can also design particular testing benches according to customers' requests. In order to meet the requirements of lowering exhaust in diesel engine field and achieve European III standard, our company researches and develops common rail system test benches which have excellent functions and high accuracy. Our test benches have been widely used by internal engine industry and are exported to more than 30 countries and regions, including Asia, Africa and America. Our company also has long-term cooperation with Guanghua Gas and imports SMC gas meter boxes, stainless steel meter boxes, cold plates and other metal products. We adhere to the principle of "sincere cooperation" and warmly welcome customers from all over the world to visit us. We hope that you can work together with us for a beautiful future.
