1.Custom products.2.OEM service.
3.Small order accepted.
4.Excellent quality control.
5.Reasonable rotary tiller price.
product presentation:
This machine not only has the basic functions of tilling,ditching,ridging and transporting,but also can be used to pump water,irrigate,spray insecticide,reap,generate electricity,fertilize,sow seeds,thresh,cut climber and to grind after equiped with the relevant devices.With the advantages of simple structure,maintenance-free and small fuel consumption,it is an ideal mini agriculture machine.
If you are interested in our priducts,please do not hesitate to contact us.
We provide the detailed technical parameter as follows:

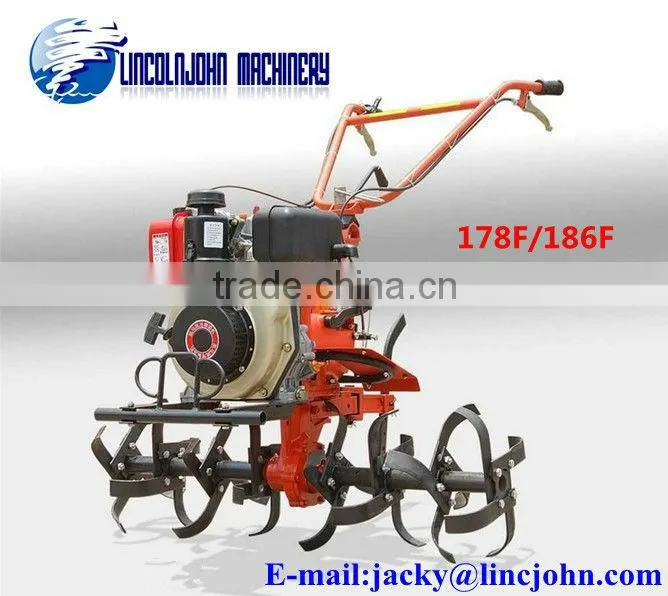

| Diesel tiller | 178F/186F diesel engine power mini rotary tiller | |
| MODEL | 1WG-6Q1050 | 1WG-6Q1350 |
| Engine model | 178F | 186F |
| Engine type | Air-cooled, 4-stroke,Vertical,Single-cylinder, Direct injection combustion. | |
| Bore×stroke(mm) | 78×62 | 86×72 |
| Displacement(cc) | 296 | 418 |
| Compression ratio | 20:1 | 19:1 |
| Starting system | Recoil Start | Recoil Start |
| Fuel oil tank volume (L) | 3.5 | 5.5 |
| Lubrication oil capacity(L) | 1.1 | 1.65 |
| Rated output power Hp/rpm | 6.0/3600 | 10.0/3600 |
| Tilling width (mm) | 750~1050 | 800~1350 |
| Tilling depth (mm) | ≥100 | ≥100 |
| Gear shifting | Reverse,0,1,2 | Reverse,0,1,2 |
| Driving mode | Triangle belt | Triangle belt |
| Weight(kg) | 122 | 131 |
| L×W×H(mm) | 1075×610×840 | 1075×610×840 |
tilling work
NOTES FOR SAFETY
1, Not allow any one stand front tiller and close to when it works.
2, Never close to fire.
3, Pay attention to the readings of instruments at any time.
4, Disassemble, assemble and adjust machine according to the manual.
5, Before it works,pls check whether there is oil in the tank or not.
6, Often add lubricating oil to the gear box.
7, Stay away from rotating parts, prevent the wound.
8, The feet of the operator should away from the rotary tillage blade.
9, Engine starting, gearshift should be placed in the neutral position.
10, Must first disconnect the clutch when shifting.
11, Remove the earth on the blade after work, to prevent rust and lengthen life.
TRADE NOTES:
1; Take custom fees and freight cost into consideration
we suggested MOQ is 5 sets.
2; FOB or C&F as your wishes.
3; Delivery within 20 working days after receiving 30%
payment in advance.
4; TT,30% deposit paid after signing the PI within 7 days
70% payment in balance paid within 3 days at the
sight of the B/L scan copy.
