Specifications

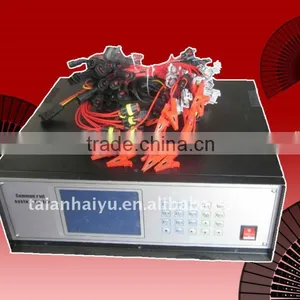

CRS3 common rail injector testertest regulator in pump
big screen to display
voltage:220V
Monitoring fuel rail pressure
ECU CRS3 common injector and pump tester for solenoid valve common rail injector
High quality with competitive price
Easy to operate and maintain
Work reliably
Small size for easy delivery
Taian Haiyu Machinery.,Ltd is a modern technological company company combining with study ,producing ,marketing and service.We have a number of engineers working on producing and designing engine testing equipments and also have some sophisticated staff specialized in the computer soft and hard wear design.This product is one of our new products .
The function of the CRS3 common rail tester is to simulate Engine Control Unit ( ECU ) and provide the control signal of BOSCH, DELPHI and SIEMENS to drive high pressure common rail fuel pump and injector to work. User can set the drive signal parameter according to their condition and then save in group, so that the worker to adjust and repair the high pressure common rail system.
Test common rail pump: BOSCH CP1, CP2, CP3, DENSO HP2 and HP3, DELPHI.
1.Simulate signals to drive a CR pump and one CR injector
2.Pump control
Two user adjustable output signals to control two pressure regulators independently, especially for Siemens DCP pumps
Monitoring fuel rail pressure
3.Injector control
Dual drive outputs
Piezo injector made by Siemens
Solenoid injector
High voltage drive for Bosch/Denso injectors
Low voltage drive for Delphi injectors
Adjustable frequency and pulse width
Software based over-pressure protection
Short circuit protection for solenoid driving signals
4.Rich accessories, ready to test Bosch, Denso, Delphi and Siemens injectors and pumps
5.Combine with test bench or nozzle tester
6. To test if the CR injector is still function

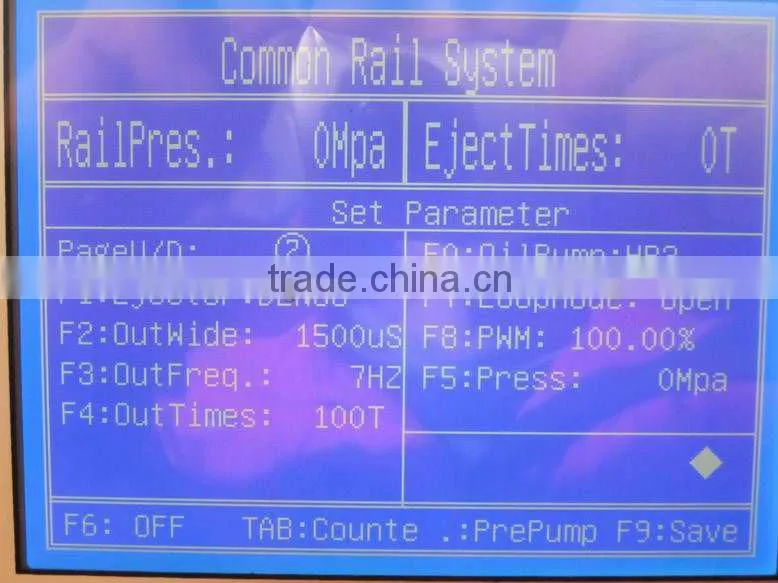

display information:

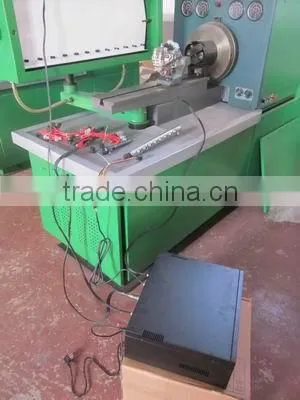

used with diesel fuel pump test bench
connect picture
