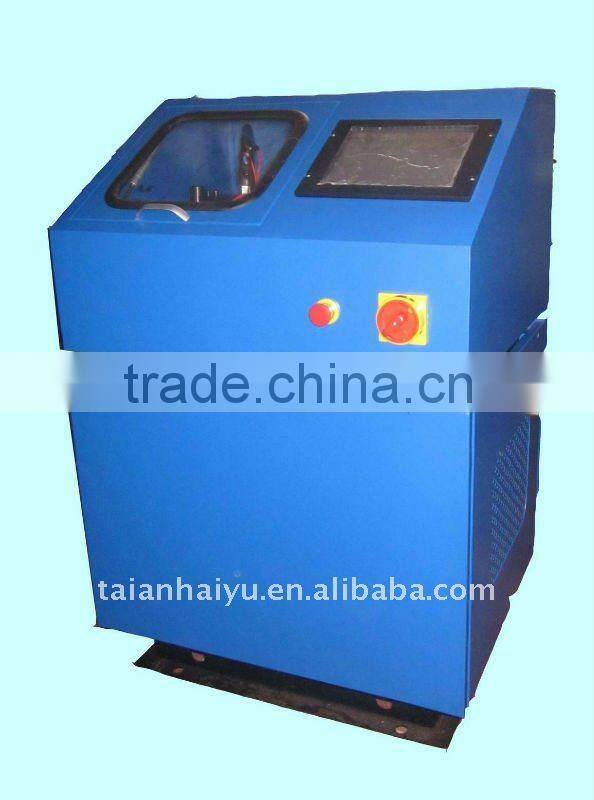

HY-CRI200A Test Bench for CR Injector Touch Screen

Specifications

HY-CRI200A Common Rail Injector Test Bench

Certificate: ISO9001:2008 Certificate. CE certificate

Configuration:

1. Power: 2.2kw

2. Alpha Frequency Converter 2.2KW

3. Voltage: Three phase four wire, 380V

4. Electric System: DELIXI or CHINT.

5. Rail pipe: Bosch

6. High pressure pump: Bosch CP1

7. Tertiary filter, filtering precision: 5um.

8. Revolving speed: 0~1000r/min.

Function and characteristics:

1. Variable frequency drive common rail pump BOSCH to produce maximum pressure 200Mpa.
2. Automatic closed-loop control rail press accuracy displayed is± 0.1Mpa.
3. Built-in standard database of common rail injector, data can be updated and added freely by users.
4. The standard database contains the waveform control data of all types of injector, and it can output the standard waveform control signal to the injector.
5. It can check BOSCH, DENSO, and DELPHI AND SIEMENS.
6. Industrial computer motherboard and embedded operating system windows XP. Its screen displays basic status such as the rail pressure, temperature, motor operation, speed, heating, cooling, also has some windows for fuel injection pump test, common rail test, fuel measurement, parameter setting, injection waveform, problem analysis and data reports.
7. Touch screen operation, easy to learn and use.
