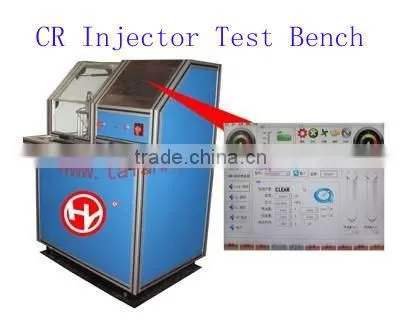

common rail injector test bench for auto repair workshop
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
- Professional Diesel Engine auto diagnostic Test Bench for common rail injection pump
- CRI200 Siemens Piezo Injector Test Bench
- CRI200 Common Rail Injector Diagnostic Tool
- CRI200 Common Rail Injector Test Bench, electronic injection pump bosch
- CRI200 Bosch, Denso, Delphi and Siemens Common Rail Test Bench
- Variable frequently drive pump,High Pressure Electronic Injector Test Bench(CRI200)
Product Details
Place of Origin: | Shandong, China | Brand Name: | Haiyu | Model Number: | HY-CRI200 |
Power: | Electronic | Usage: | Auto Testing Machine |
Packaging Details
wood package
Product Description
Specifications
Common rail test benchHigh pressure pump:CP3.3
Alpha frequency converter
Computer control
Test Bosch,Denso,Delphi injector
Name and Model | System | Specification Details | Remarks |

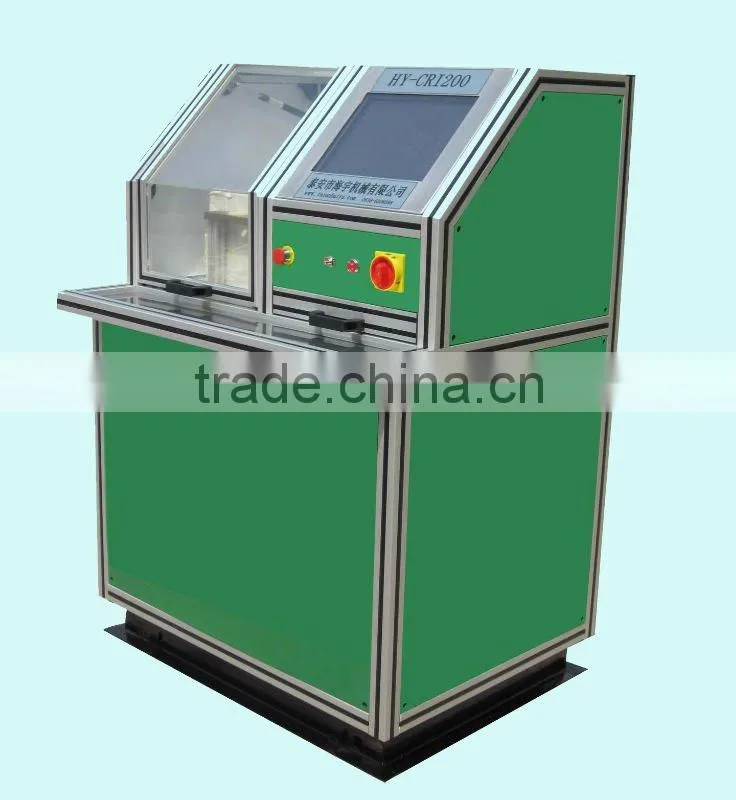

HY-CRI200 High Pressure Common Rail Injector Test Bench | Main Engine System | 1. Tianqi quadrupole electric motor (380V): 5.5KW. Alpha frequency converter: 7.5KW 2. The main frame is aviation aluminum structure and cast iron operating platform. 3. Its control type is automatically computer control and display by screen. 4. The accuracy of weighing oil digital readout (weighing transducer) is 0.1ml. 5. Its revolving speed range is 0~1500r/min (adjustable) (digital readout). | Fixture Included |
Oil Circuit System | 1. The high pressure pump is BOSCH, CP3.3, max 200Mpa. 2. Rail pipe is BOSCH. 3. The rail pipe is controlled by automatically closed cycle, and pressure display (accuracy±0.1Mpa) with overpressure protection. 4. Oil temperature (adjustable) is controlled automatically heated by heating pipe and radiated though radiator. 5. Its filtering type is secondary filter. | ||
Electrical equipment | 1. It has built-in electrical box and convert box. 2. Short-circuit protection. | ||
Data base | It has more than 400 kinds of standard build-in data, which can be upgraded. | ||
Testing fuel injector | 1. It can test 1 fuel injector every time. 2. It can test 6 fuel injectors at most in the same time (Price is extra). 3. The types it can test are BOSCH, DENSO, DELPHI, and SIEMENS. | ||
1, Main motor speed: 0-4000 r / min can be adjustable.
2, Fuel Injector open voltage
Control range: 12V, 80V, 150V
Control accuracy: phase adjustment
3, Injector opening frequency
Control: 0-1000HZ
Control accuracy: 1HZ
4, Fuel Injector Hold Time
Control: 0-65535us
5 Delivery Oil Count
Control: 0-1000 times
Control accuracy: 1 times
6, Fuel pressure control
Control: 0-2000bar
Control accuracy: 1bar
Specification
Injection pressure: 0-1600bar
Pressure stability: ±10bar
Test oil type: ISO4113 or equivalent
Two levels of test oil filtration
Course filter 10µm
Fine filter 3µm
