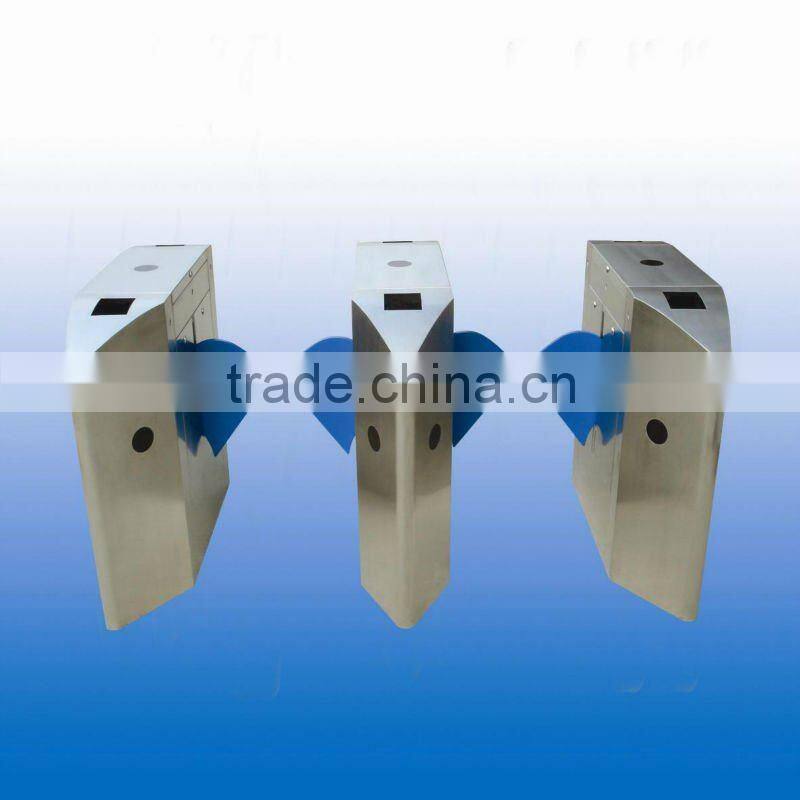

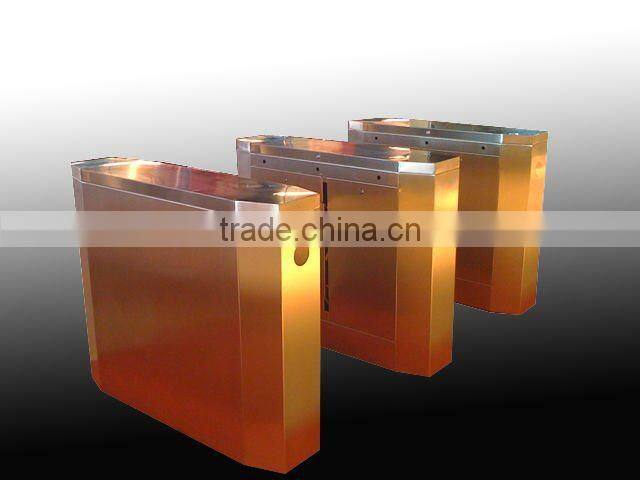

Tripod Turnstile gate 1.5mm thickness

Specifications

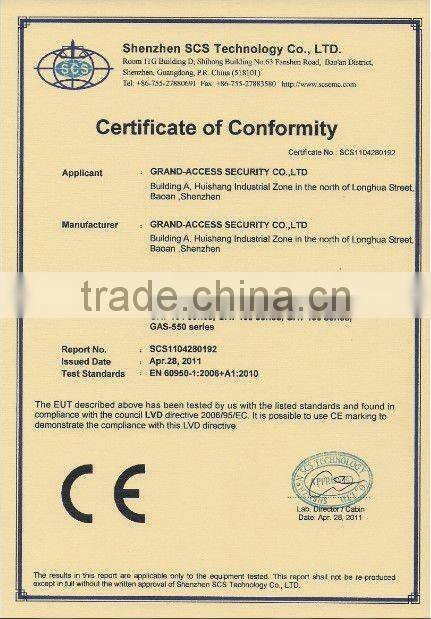

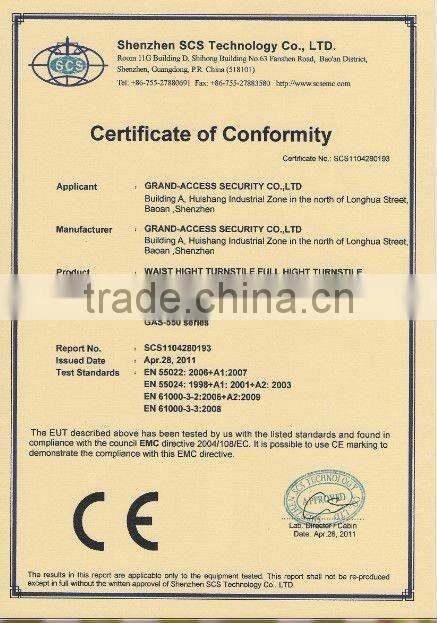

*Passage/Swing Turnstile with CE certification
*304 Stainless Steel
*Interface:RS485
*Power:AC220V,50HZ
*1200*1040*280mm

1.Swing Turstile Specifications:



1	Power supply Voltage	AC220±10%V,50HZ
2	Operating Temperature	-10°C-50°C
3	Relative Humidity	<90%, No codensation
4	Access Width	≤600mm
5	Passing Speed	30-40persons/min
6	Material of case	Domestic standard SUS(304#)
7	Drive Motor	DC brushed motors(24V)
8	Nomal service life:	3 million times
9	Communication interface	RS485
10	LED indicating lights:	Two
11	Card-reading Windows	Two
12	Inspection and repairing ports:	Five
13	Closing and opening time of stick:	1second
14	Working environment:	Indoor, Outdoor(shelter)
15	Length of stick:	300mm
16	Optional Range:	250-500MM
17	Weight:	90KG
18	Size of framework:	Length12000,height:1000MM
19	When Electricity turns on	3 Seconds needed for it to enter into passing status.
20	When there is breakdown	10seconds needed for its antomatic return/reset

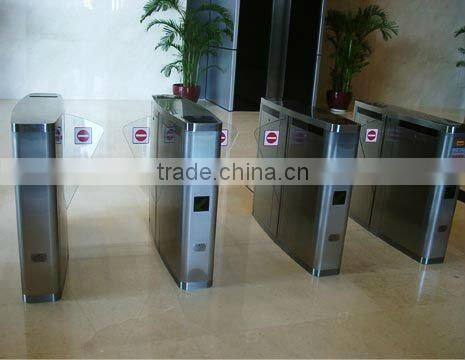

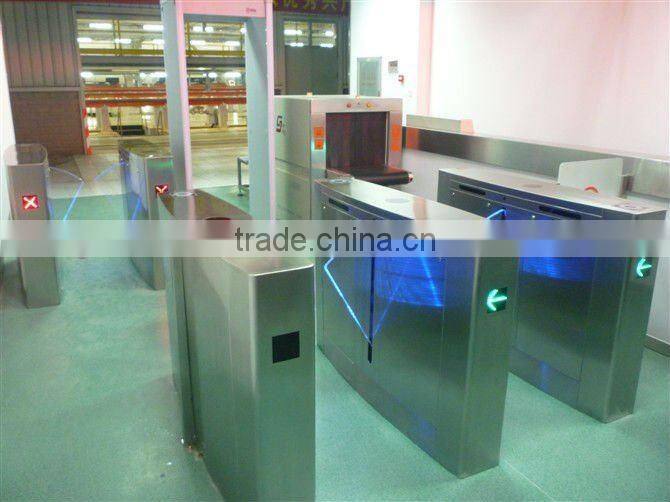

21	Operation place	Subway station;Tourism sports;exhibition;School; Enterprise entrance and attendace;

















2. Main functions and features

2.1 Functions and features of standard product.

1). functions of breakdown self-checking and alarm warning, very convenient for customers’ maintenance and use.



2). program operation mode of equipments through the little button inside the main board.



3). double Anti-Pinch function from both machine structure and induction. Stops automatically if there is something in the way during the return/reset of the stick, or electronic engine stops working in the default time. Will have its second return/reset (till it comes back to where it should be), and the force is very weak(less or equal to 2kg)



4). sound and light alarming function: including break-in and tag alone alarming.



5): Anti-rushing function: without having received the signal of opening barrier (stick), the sticks lock automatically.



6): synchronizing function of sticks



7): automatic returning/resetting function: when the sticks open up, if people do not pass by within the time allowed, system will cancel the right of pass for this time. As for the standards, sticks reset/return five seconds after its opening.



8): when the electricity is cut off, the access opens automatically, and closes automatically when the electricity is linked.



9): can be linked to many kinds of card reading equipments, and work with receiving electricity relay signal.



10). One-way and two-way in and out control of passer



11). Carry out distant control and management by directly operating computer.
