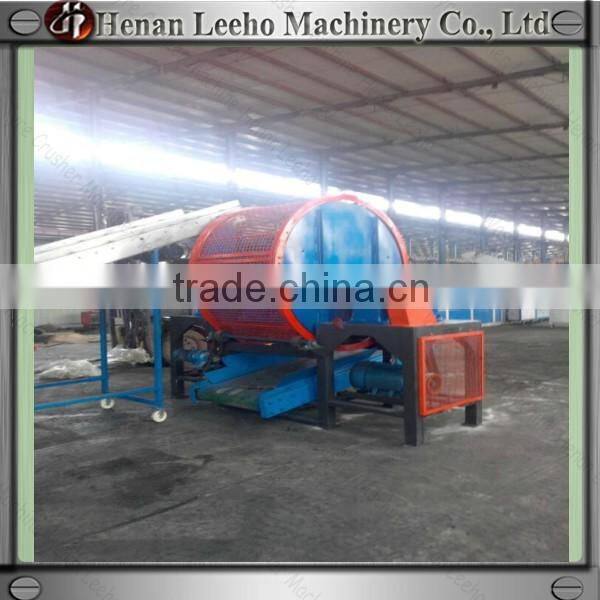

Help CenterWaste Tyre Crushing Machine in Rubber Raw Material Machinery Quality Choice
Related Products
-
Waste Tyre/tire Crush Processing Machine With Cheap PriceUS$ 15,000 - 80,000MOQ: 1 Set -
Used Tyre Crusher Pellet EquipmentUS$ 15,000 - 80,000MOQ: 1 Set
-
Old Tire Recycling Production LineUS$ 15,000 - 80,000MOQ: 1 Set
-
No Pollution Used Tire Recycle Production LineUS$ 15,000 - 80,000MOQ: 1 Set
-
No Pollution Automatic Rubber Powder Making MachineUS$ 15,000 - 80,000MOQ: 1 Set
Specifications
Waste Tire Powder Machine1.10-30mesh rubber powder
2. 30% energy saving
3.High Production,low consumption
4.>20 years life
Used Tire Recycle Production Line
Description of used tire recycle prouction line
Wire tire rubber powder machine mainly crusher the waste tire into powder, it have great market for environment.
Work Flows of used tire recycle production line
Waste Tire-- Tire Circle Cutting Machine-- Tire Strip Cutting Machine-- Tire Slice Cutting Machine-- Steel Wire Separating Machine--Conveyor Equipment-- Tire Crushing Machine--Vibrating Screen--Conveyor Equipment--Magnetic Separator Machine--Vibrating Screen Machine-- Fiber Separator Machine-- Waste Tire Powder Mahine
Tire Circle Cutting Machine
It used for Cut the sideall of wire tire, so that it is easy operation in the next process.
| Power | Range for Tire | Quantity of Tire | Dimension(mm) | Weight(KG) |
| 4KW | 750-1200mm | 25-30 | 1150*850*1200 | 500 |
Tire Stri Cutting Machine
It mainly used for cut the tire into Slice, it is adjustabled about the width.
| Power | Capacity | Diameter of Tire(mm) | Discharge Size(mm) | Dimension(mm) | Weight(kg) |
| 5.5kw | 10 | >1200 | 35-55 | 1230*650*1580 | 800 |
Tire Slice Cutting Machine
it can cut the slice tire into block tire
| Power(kw) | Capacity(kg/h) | Feed Size(mm) | Dimension(mm) | Weight(kg) |
| 7.5 | 800-1000 | 35*35*35 | 780*550*1210 | 600 |
Steel Wire Separating Machine
It is used for separate the steel wire on waste tire, so that can keep the physical characteristics of wire.
| Power(kw) | Capacity | Discharge Size(mm) | Dimension(mm) | Weight(kg) |
| 15 | 1200*500*20 | 1500*1100*1200 | 1800 |
Rubber Crusher Machine
It is main produce to crusher the tire pieces into small mesh powder with vibrator screen.
| Model | Drum Diameter | Drum Length | Front Roll Linear | Max Roller Spacing | Motor Power | Roll Speed Ratio | Remark |
| LHO-300 | 300mm | 500mm | 26.2m/min | 8mm | 30kw | 1:2.5 | Antifriction bearing |
| LHO-400 | 400mm | 600mm | 34.5m/min | 8mm | 45kw | 1:2.5 | Antifriction bearing |
| LHO-450 | 450mm | 760mm | 38.0m/min | 8mm | 55kw | 1:2.5 | Antifriction bearing |
| LHO-560 | 560mm | 800mm | 38.6m/min | 8mm | 75kw | 1:2.5 | Antifriction Bearing |
| LHO-560D | 560mm | 800mm | 42.5m/min | 8mm | 132kw | 1:2.5 | Antifriction Bearing |
Magnetic Separator Machine
It can separator the wire glass etc by magnetic.
| Name | Power(KW) | Weight(400kg) | |
| Magnetic Separator | 1.5 | 400 |
Application used tire recycle production line
- Sports venues
- Rubber runway / Recreation ground /Bowling alley
- School stadium /Tennis and basketball courts / Sidewalks ……
- Traffic
- Modifying asphalt /Tire / Speed-down zone / Raft ……
- Elastic / Rubber shoes / Raincoat……
- Stationery and sporting goods
- Eraser / Ping-Pong / Basketball football……
- Construction,building materials
- Rubber tiles /Carpet pad / Floor / Roof liner and cover
- Waterproof materials / Roof and wall waterproofing membrane……
- Industrial products
- Reclaimed rubber / Triangular belt / Gasket ring
Our Advantage of tire recycle production line
1. Iron/steel removing ratio>99.5%, fiber removing ratio>98%
2. Adopt semi-automatic control system for whole line, reduce labor cost
3. No sewage and waste gas discharge, environment protection
4. Dealing with 0.65-1.2m tires
5. 3-4 workers for operation
6. The machine can make the powder into 10 -30 mesh
7. 40 feet container should be used.
Delivery& Contact used tire recycle production line
