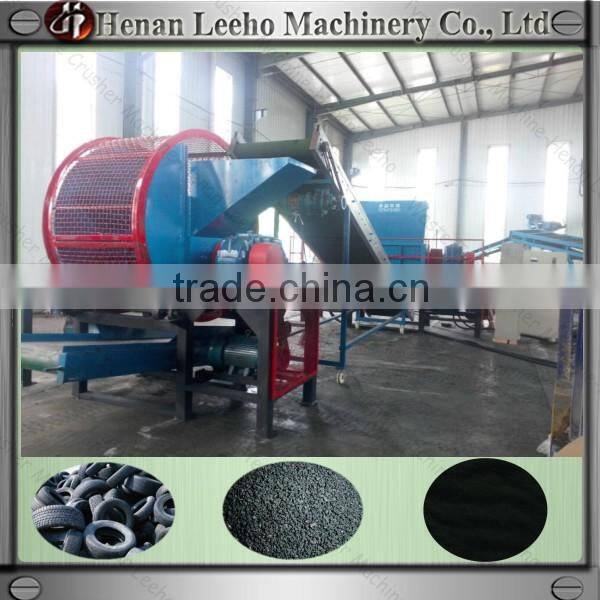

Waste Tire Shredder Machine

Specifications

Waste Tire Powder Machine
1.10-30mesh rubber powder
2. 30% energy saving
3.High Production,low consumption
4.>20 years life

Used Tire Crusher Production Line

 Description of used tire recycle prouction line

Wire tire rubber powder machine mainly crusher the waste tire into powder, it have great market for environment.

Work Flows of used tire recycle production line

Waste Tire-- Tire Circle Cutting Machine-- Tire Strip Cutting Machine-- Tire Slice Cutting Machine-- Steel Wire Separating Machine--Conveyor Equipment-- Tire Crushing Machine--Vibrating Screen--Conveyor Equipment--Magnetic Separator Machine--Vibrating Screen Machine-- Fiber Separator Machine-- Waste Tire Powder Mahine

Tire Circle Cutting Machine

It used for Cut the sideall of wire tire, so that it is easy operation in the next process.

Power	Range for Tire	Quantity of Tire	Dimension(mm)	Weight(KG)
4KW	750-1200mm	25-30	1150*850*1200	500

Tire Stri Cutting Machine

It mainly used for cut the tire into Slice, it is adjustabled about the width.

Power	Capacity	Diameter of Tire(mm)	Discharge Size(mm)	Dimension(mm)	Weight(kg)
5.5kw	10	>1200	35-55	1230*650*1580	800

Tire Slice Cutting Machine

it can cut the slice tire into block tire



Power(kw)	Capacity(kg/h)	Feed Size(mm)	Dimension(mm)	Weight(kg)
7.5	800-1000	35*35*35	780*550*1210	600

Steel Wire Separating Machine

It is used for separate the steel wire on waste tire, so that can keep the physical characteristics of wire.



Power(kw)	Capacity	Discharge Size(mm)	Dimension(mm)	Weight(kg)
15		1200*500*20	1500*1100*1200	1800

Rubber Crusher Machine

It is main produce to crusher the tire pieces into small mesh powder with vibrator screen.



Model	Drum Diameter	Drum Length	Front Roll Linear	Max Roller Spacing	Motor Power	Roll Speed Ratio	Remark
LHO-300	300mm	500mm	26.2m/min	8mm	30kw	1:2.5	Antifriction bearing
LHO-400	400mm	600mm	34.5m/min	8mm	45kw	1:2.5	Antifriction bearing
LHO-450	450mm	760mm	38.0m/min	8mm	55kw	1:2.5	Antifriction bearing
LHO-560	560mm	800mm	38.6m/min	8mm	75kw	1:2.5	Antifriction Bearing
LHO-560D	560mm	800mm	42.5m/min	8mm	132kw	1:2.5	Antifriction Bearing

Magnetic Separator Machine

It can separator the wire glass etc  by magnetic.

Name	Power(KW)	Weight(400kg)
Magnetic Separator	1.5	400

Application used tire recycle production line



• Sports venues
• Rubber runway / Recreation ground /Bowling alley
• School stadium /Tennis and basketball courts / Sidewalks ……
• Traffic
• Modifying asphalt /Tire / Speed-down zone / Raft ……
• Elastic / Rubber shoes / Raincoat……
• Stationery and sporting goods
• Eraser / Ping-Pong / Basketball football……
• Construction,building materials
• Rubber tiles /Carpet pad / Floor / Roof liner and cover
• Waterproof materials / Roof and wall waterproofing membrane……
• Industrial products
• Reclaimed rubber / Triangular belt / Gasket ring

Our Advantage of tire recycle production line

1. Iron/steel removing ratio>99.5%, fiber removing ratio>98%

2. Adopt semi-automatic control system for whole line, reduce labor cost
3. No sewage and waste gas discharge, environment protection

4. Dealing with 0.65-1.2m tires

5. 3-4 workers for operation

6. The machine can make the powder into 10 -30 mesh

7. 40 feet container should be used.
