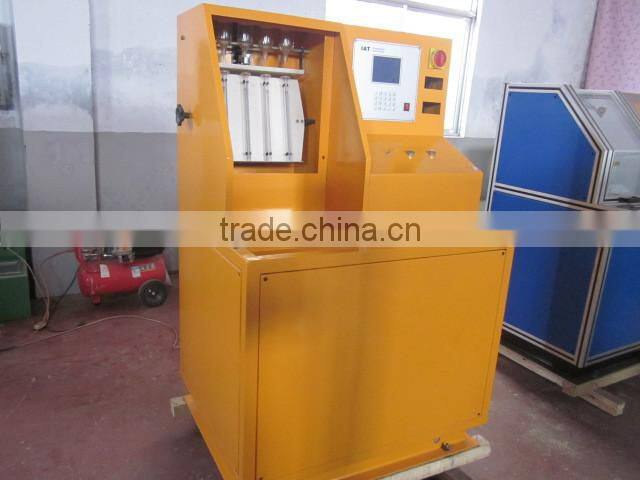

Help CenterCRI200C Common Rail Test Bench, Bosch Pump, Denso Test Bench
Related Products
-
EUI /EUP Cam Box ManufacturerNegotiableMOQ: 1 Set -
CRI200B-I High Pressure Common Rail Injector and Pump Test BenchNegotiableMOQ: 1 Set
-
CRI200C High Pressure Common Rail( Bosch Test Bench),CE CertificateNegotiableMOQ: 1 Set
-
HY-CRI200B-I High Pressure Test Bench,convenient InstallationNegotiableMOQ: 1 Set
-
HY-CRI200 High Pressure Common Rail Test BenchNegotiableMOQ: 1 Set
Specifications
1.Common Rail Test Bench,Test Denso HP3,HP4,HP02.cast iron operation platform
3.stable rail pressure
HY-CRI200C Common Rail Injector Test Bench
CE certificate and ISO9001:2008 certificate
1. Functions:
1.1 To integrate fuel pump control module and an injector control module.
1.2 Fuel pump control module includes 2 sets independent controlling PWM output, common rail pressure sensor signal input , and add a new function of driving 3 DRV valves at the same time.
1.3 Injector control module includes 1 set electromagnetic coils driving output, and 1 set piezo electric crystal driving output.
1.4 Display by 5.7 inch screen. Operation convenient and direct.
2. Applications:
Fuel injection frequency and fuel injection pulse width are adjustable. Driving signal has short-circuited protection. This tester is provided with complete connectors.
2.1 Fuel pump testing
Bosch pump: CP1, CP2, CP3.
Delphi pump: CRSP
Denso pump: HP3, HP4.
Siemens pump: DCP
2.2 Fuel injector testing
2.2.1 Electromagnetic coils control
High voltage driving: Bosch, Denso.
Low voltage driving: Delphi
2.2.2 Piezo electric crystal control
Siemens Piezo injectors.
