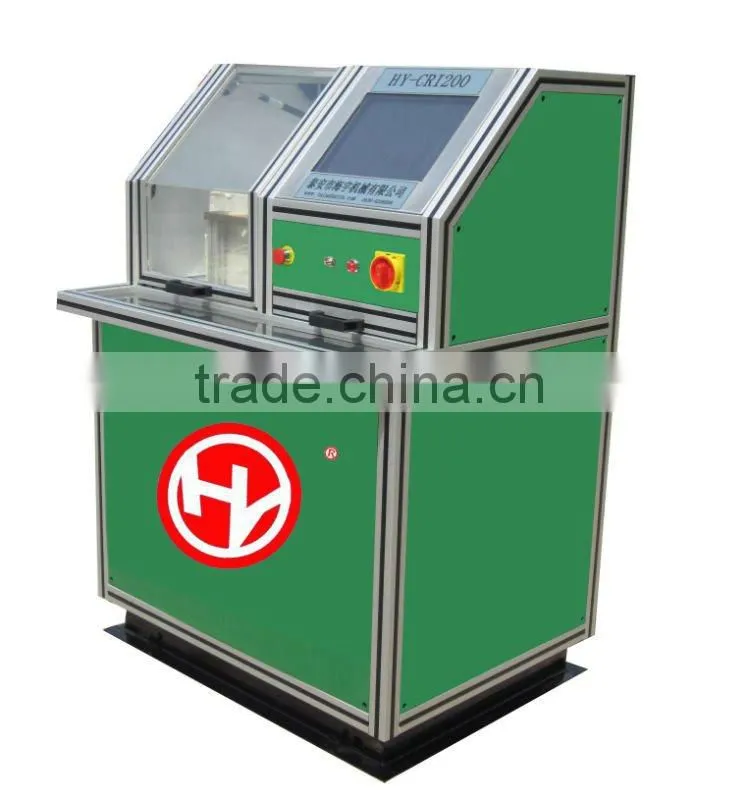

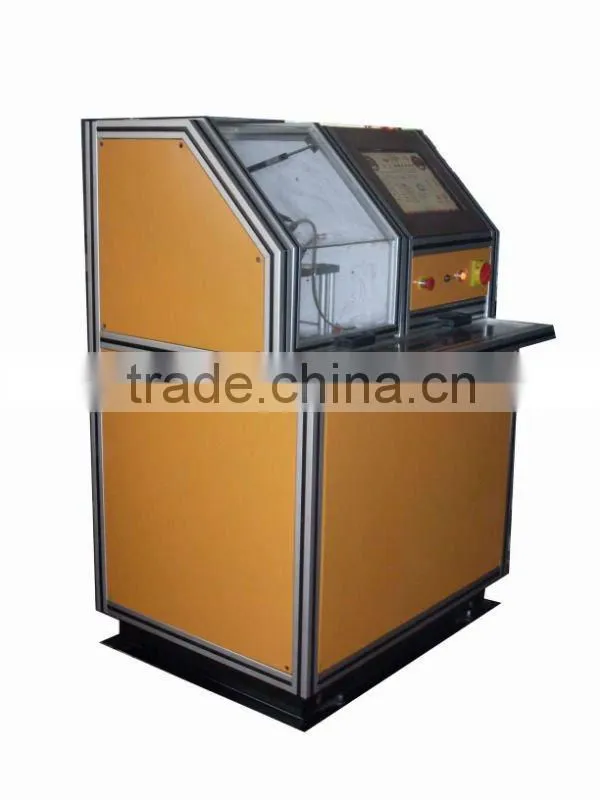

High Pressure Common Rail Injector Test Machine With Rail Pipe is BOSCH,
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Engine Analyzer
Voltage:
220V/380V
Power:
5.5kw
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Plunger,forced Cooling System,Common Rail Injector and Pump Test BenchNegotiableMOQ: 1 Set -
Forced Cooling System,Common Rail Injector and Pump Test BenchNegotiableMOQ: 1 Set
-
Three Phase Four Wire,CE,common Rail Test Rig(CRI200B-I),High QualityNegotiableMOQ: 1 Set
-
(mouse Operation)common Rail Test Bench(test Bosh Denso Delphi Siemens)NegotiableMOQ: 1 Set
-
HY-CRI200B-I High Pressure Common Rail Test Rig(mouse Operation)(test Bosh Denso Delphi Siemens)NegotiableMOQ: 1 Set
Type
Engine Analyzer
Voltage
220V/380V
Power
5.5kw
Certification
CE/ISO9001
Applicable Models
AUTO TESTING MACHINE
Place of Origin
Shandong, China
Brand Name
HAIYU
Model Number
HY-CRI200
Specifications
Common Rail Injector Test Machine1.Perfect design
2.Power:electronic
3.Voltage:380V
4.accurate measurement
High Pressure Common Rail Injector Test Machine
1. Main Engine System
- Quadrupole electric motor (380V) 5.5KW
Alpha frequency converter 7.5KW
- The main frame is aviation aluminum structure and cast iron operating platform.
- Its control type is automatically computer control and display by screen.
- The accuracy of weighing oil digital readout (weighing transducer) is 0.1ml.
- Its revolving speed range is 0~1500r/min (adjustable) (digital readout).
2. Oil Circuit System
- The high pressure pump is BOSCH CP3.3, max 200Mpa.
- Rail pipe is BOSCH.
- The rail pipe is controlled by automatically closed cycle, and pressure display (accuracy±0.1Mpa) with overpressure protection.
- Oil temperature (adjustable) is controlled automatically, heated by heating pipe and radiated though radiator.
- Its filtering type is secondary filter.
3. Electrical equipment
- It has built-in electrical box and converter box.
- Short-circuit protection.
4. Data base
- It has more than 400 kinds of standard build-in data, which can be upgraded.
5. Testing fuel injector
- It can test 1 fuel injector every time.
- It can test 6 fuel injectors at most in the same time (Price is extra).
- The types it can test are BOSCH, DENSO, DELPHI, and SIEMENS.
6. Overall dimension
Length: 1000mm, Width: 850mm, Height: 1430mm
7. Weight
Net weigh: 400kg.
