Al Conductor PVC Insulated and Sheathed Flat Electrical Wiring by China Supplier
- Shanghai Qingdao Chengdu
- T/T Money Gram Credit Card
You May Like
-
BLVVB al Wire Pvc Flat Electric Wire PVC Insulated and Coated Wire
-
RVV-300/500V Copper Core PVC Insulated and Sheathed Flexible Electric Wiring
-
RVS/Cu Conductor PVC Insulated Twisted Pair Connecting Flexible Cable/Wire
-
RVS -300/500V /copper Core Twisted Pair Connecting Flexible Electrical Wires
-
RVS -300/500V /cu Core Flexible Electrical Wiring Wholesale/Twisted Pair Connecting Flexible Wires
-
Copper PVC Insulated and Sheathed Copper Braid Shielded Flexible Wires
Product Details
| Place of Origin | Sichuan, China | Brand Name | Motian | |
| Model Number | BVVB 300/500V | Type | Other, Insulated, Flat electrical wiring by China supplier | |
| Application | Other, Constraction, underground,etc. | Conductor Material | Copper | |
| Conductor Type | Stranded | Insulation Material | PVC |
Product Description

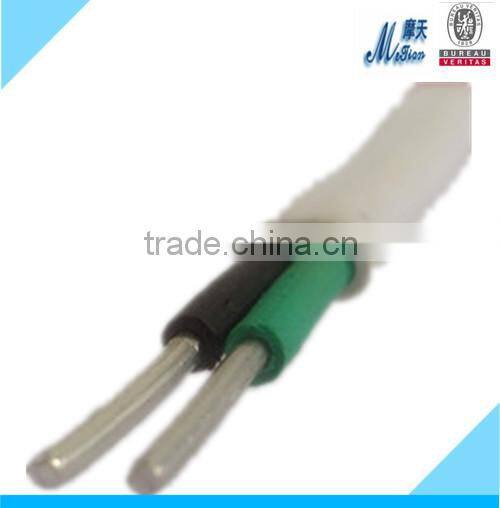

Al Conductor PVC Insulated and Sheathed Flat electrical wiring by China supplier
1. Long-term allowable operating temperature of cable conductor ≤70°C;
2. In AC system, system voltage should lower than rated voltage of cable;
3. In DC system, system voltage should no more than 1.5 times of rated voltage of cable;
4. Ambient temperature of installation not lower than 0℃, allowable bending radius: for cables with outer diameter(D) less than 25mm, should be not less than 4D; for cables with outer diameter(D) 25mm and above, should not be less than 6D.
5. The products are suitable for fixed laying or laid in pipes, overhead.

Al Conductor PVC Insulated and Sheathed Flat electrical wiring by China supplier

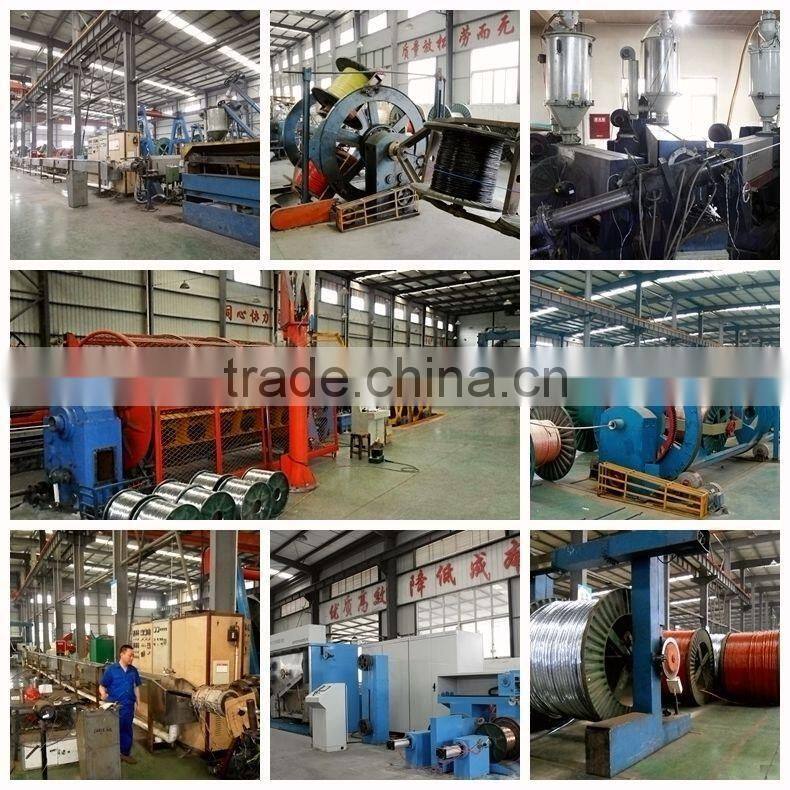

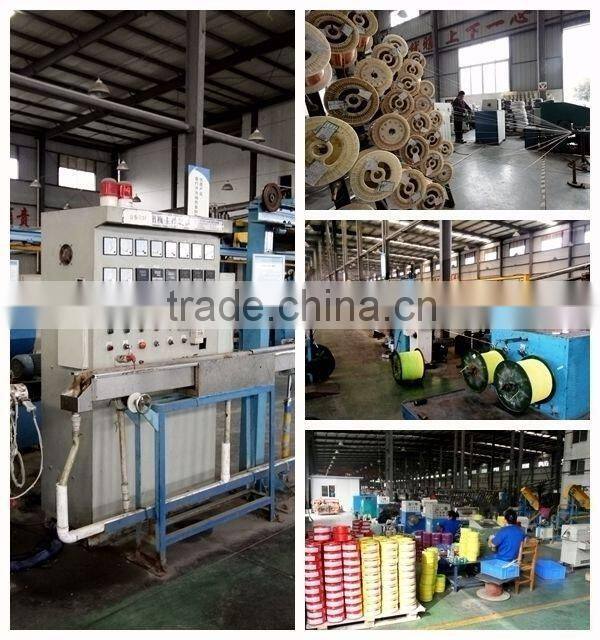

Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial Zone, Chengdu. The company has obtained ISO9001: 2008, CCC certificates and also “Sichuan Famous Brand”, “Famous and Excellent Products in Sichuan” and so on.
Our company is specialized in various cables and wires with low, medium and high voltage up to35KV, mainly including: XLPE insulated power cable, Rare earth high speed rail aluminum conductor power cable,
Aerial insulated cable, Mining cable, Control Cable, Rubber sheathed cable, Special cables as flame retardant cable, fire resistant cable, LSZH cable and Sheathed or non-sheathed wires. The products can be widely applied in the areas of power station, metallurgy, mines, petrochemical, machinery, building, communication etc.
We have professional R & D department and have obtained patents for various of our products.
Cables & Wires Up to 35kV
Cables & Wires for Electric Equipments

Al Conductor PVC Insulated and Sheathed Flat electrical wiring by China supplier

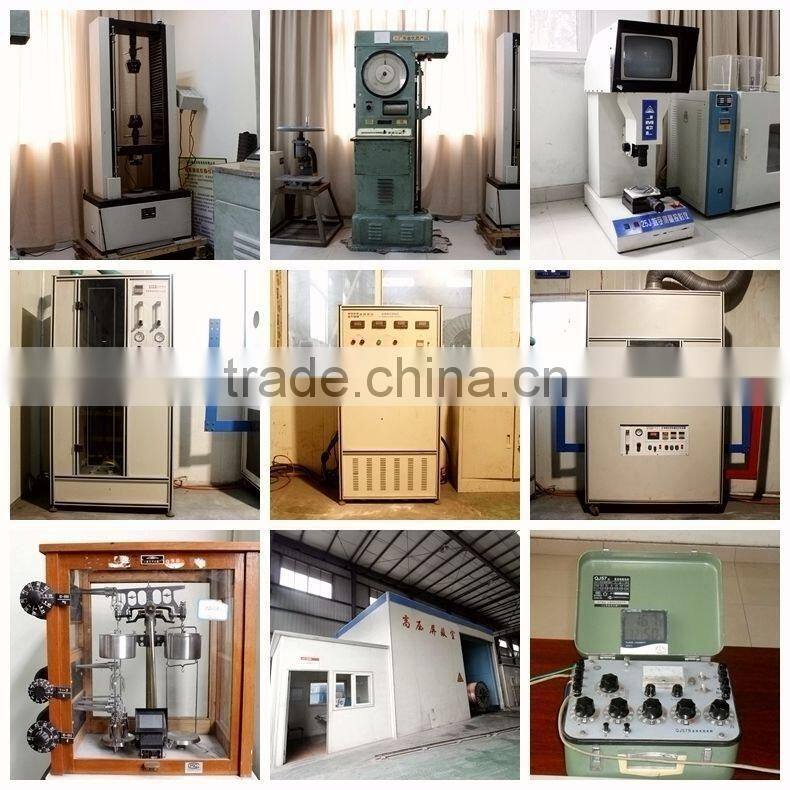

Testing Equipment

Package with High Quality
Professional & Safe Shipping
