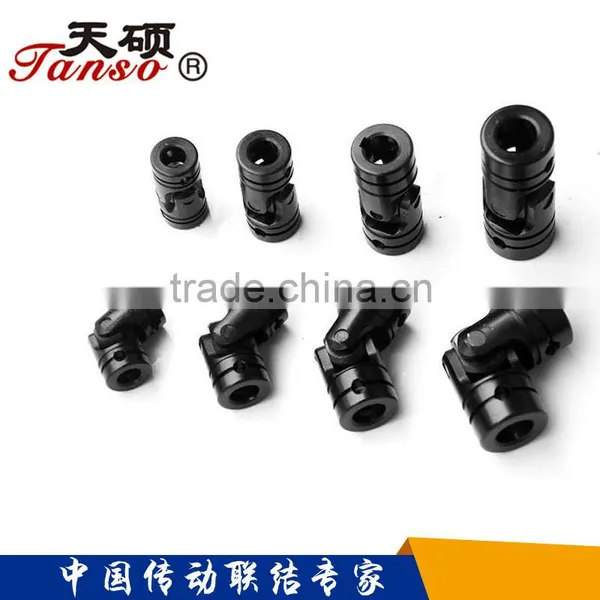

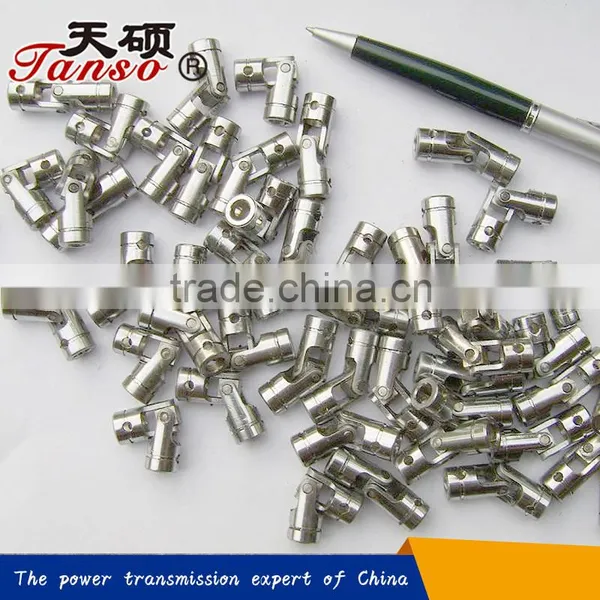

Universal Joint Supllier Tanso
US$ 7 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Structure:
Universal
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Structure
Universal
Flexible or Rigid
Flexible
Standard or Nonstandard
Standard
Material
Steel
Brand Name
Tanso
Place of Origin
Hebei, China
Model Number
WS/WSD

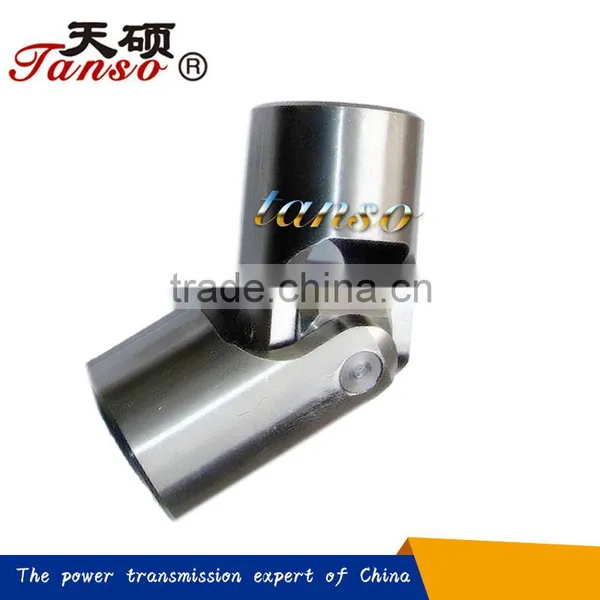

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.
WS universal coupling is suitable for retating system which the two axis angle <45,nominal torque 11.2~1120N*m.
Features of WS universal coupling:
1.Available in your choice of round, hex, splined, or keyway bore
2.Lubrication is required for optimal wear – boots and lubricant extend universal joint life
3.Max angular mislegnment:45o
Model |
Torque(TN N.m) | d(H7) | Outer diameter | Total length | Weight (m/kg) | moment of inertiakg. | |||

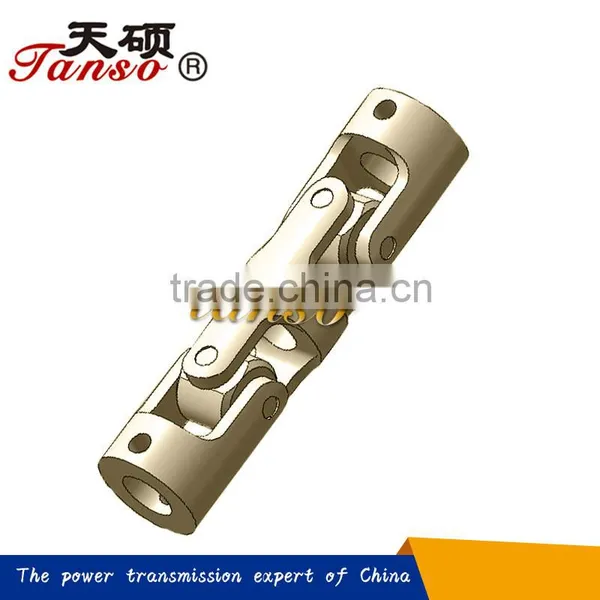

| WSD | WS | ||||||||
| Y type | J1 type | Y type | J1 type | ||||||
| WS1 | 11.2 | 8 | 16 | 60 | 60 | 80 | 80 | 0.32 | 0.08 |
| WSD1 | 9 | 66 | 60 | 86 | 80 | 0.23 | 0.06 | ||
| 10 | |||||||||
| WS2 | 22.4 | 10 | 20 | 70 | 64 | 96 | 90 | 0.64 | 0.15 |
| WSD2 | 11 | 84 | 74 | 110 | 100 | 0.93 | 0.1 | ||
| 12 | |||||||||
| WS3 | 45 | 12 | 25 | 90 | 80 | 122 | 112 | 2.1 | 0.24 |
| WSD3 | 14 | 1.45 | 0.17 | ||||||
| WS4 | 71 | 16 | 32 | 116 | 82 | 154 | 130 | 8.56 | 0.56 |
| WSD4 | 18 | 5.92 | 0.32 | ||||||
| WS5 | 140 | 19 | 40 | 144 | 116 | 192 | 164 | 20.6 | 1.04 |
| WSD5 | 20 | 16.3 | 0.72 | ||||||
| 22 | |||||||||
| WS6 | 280 | 24 | 50 | 152 | 124 | 210 | 182 | 68.9 | 1.89 |
| WSD6 | 25 | 172 | 136 | 330 | 194 | 58 | 1.28 | ||
| 28 | |||||||||
| WS7 | 560 | 30 | 60 | 226 | 182 | 296 | 252 | 207 | 3.9 |
| WSD7 | 32 | 148 | 2.82 | ||||||
| 35 | |||||||||
| WS8 | 1120 | 38 | 75 | 240 | 196 | 332 | 288 | 396 | 7.25 |
| WSD8 | 40 | 300 | 224 | 392 | 336 | 585 | 5.03 | ||
| 42 | |||||||||
cardan joint
