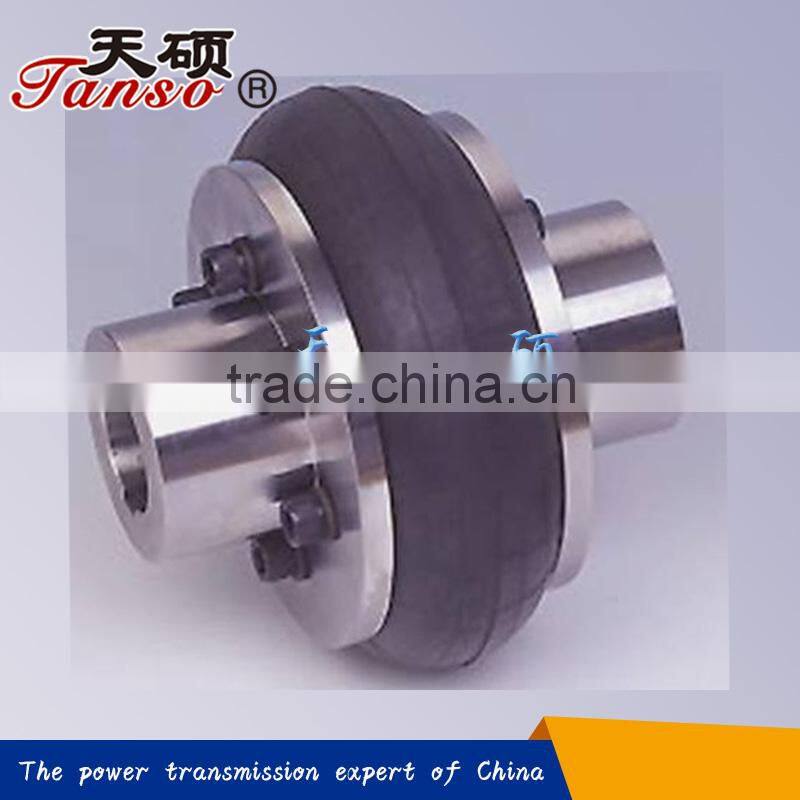

Help CenterUL Type Complete Flexible Tyre Coupling
Related Products
Features:
1. Acts as Self-Aligning Agent
2. Avoids Metal Contact
3. Smoothness Vibration
4. Gives Life to Bearings
5. Removes Unpleasant Sound
6. Takes End Level Shock Load
7. Makes Easy Replacement
8. Suits to Vertical Drive
9. Avoids Cost Against Breakdown
10.Decreases Temperature Rise
Cushion Shock Loads
It cushions Shock Loads and absorbs Torsional and Lateral Vibration real enemies of valuable machines. Vibrations that could produce undesirable sounds are also isolated. Transmission of gear noise and motor hum between shafts is reduced. Tanso tyre coupling provides just a steady constant dampening effect regardless of the direction of rotation and protects system components from fatigue failure.
No Lubrication or Maintenance
Tanso tyre couplings requires no lubrication prompting cleanliness that is especially desirable in such fields as food processing and textiles hence requiring no periodic maintenance as a result.
Simplified Design
No gears • No seals • No bearings • No wearing parts • No backlash clearance. Tanso tyre coupling forms one combined assembly, there is no relative movement inside of any part.
Easy Installation
Quick and Easy to install • No need for precise Shaft Alignment
Initial assembly of the Tanso tyre coupling is a simple operation. Alignment may be roughly checked by placing accurate measuring equipment, since small errors in misalignment are easily, accommodated by the Resilient Member. To replace the Flexible Member, simply loosen the Bolts, remove the Tyre and replace with a new one. It is not necessary to move either the driving or driven machines during the entire operation. The split Flexible Member is placed so that bearing on both sides is held between the Flanges and the Clamping Rings. The bolts are then tightened into place to grip the Resilient Member fully.
Safety
No metal to metal contact between two shafts, therefore. the cushion coupling insulates against flow of current from one shaft to the other No sharp edges, metal surfaces are finished all over.
