Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

Features of TS3 mini disc coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Stainless steel discs absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Clamp type

6.For servomotor,stepmotor connection

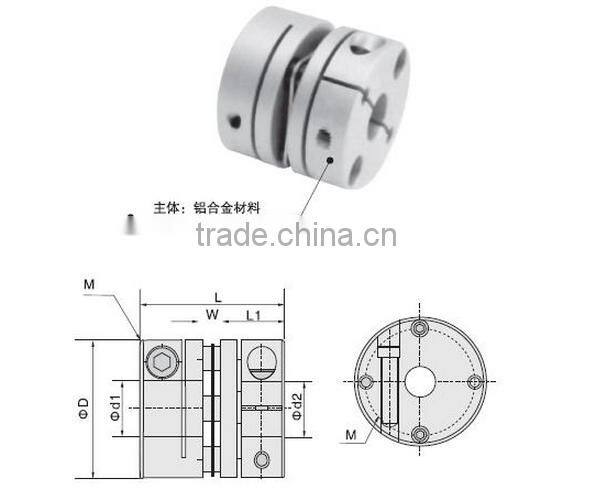

Fundamental dimensions

Model	Φ d1Φd2 Bore diameter	ΦD	L	F
Model	Φ d1Φd2 Bore diameter	ΦD	L	F	L1	M	Wrench Torque N·m
TS3-26	5 6 8 9.525 10	26	25.5	2.5	11.5	M3	1.5
TS3-34	8 9.525 10 11 12 14	34	31	3.1	14.1	M4	1.5
TS3-39	10 11 12 14 15 16	39	34.1	4.1	15.0	M4	2.5
TS3-44	11 12 14 15 16 19	44	34.5	4.5	15.0	M4	2.5
TS3-56	14 15 16 19 20 22 24	56	45.0	5.0	20.0	M5	7.0
TS3-68	19 20 22 24 30 35	68	54.0	6.0	24.0	M6	12
TS3-82	24 28 30 35 38 40	82	68.0	8.0	30.0	M8	16

Parameters

Model	Rated Torque (N·m)	Max Torque (N·m)	Max Rotational Frequency (rpm)	Moment of inertia kg·m²	Static Torsioral Stiffness N m/rad	Parallel misalignment mm	Angular misalignment	Mass g
TS3-26	1.4	2.8	10000	1.8×10^-6	690	1	±0.2	24
TS3-34	2.8	5.6	10000	7.2×10^-6	1650	1	±0.2	46
TS3-39	5.8	11.6	10000	1.8×10^-5	2500	1	±0.2	78
TS3-44	8.7	17.4	10000	2.5×10^-5	2900	1	±0.2	96
TS3-56	25	50	10000	1.0×10^-5	8400	1	±0.2	206
TS3-68	55	110	10000	1.9×10^-4	11500	1	±0.2	366
TS3-82	80	160	10000	7.0×10^-4	14550	1	±0.2	710
