Precision Bellows Coupling

Precision Bellows Coupling thumbnail-1
Precision Bellows Coupling photo-1
US$ 1 - 100 MOQ: 10 Sets
Key Specifications
Get Latest Price
Material:
Stainless Steel
Brand Name:
Tanso
Place of Origin:
Hebei, China
Contact Supplier Request Quote Chat Now
Cangzhou Tanso Coupling Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Stainless Steel
Brand Name Tanso
Place of Origin Hebei, China
Model Number TS1C

A bellows coupling is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other. This design utilizes a single piece of material and becomes flexible by removal of material along a spiral path resulting in a curved flexible beam of helical shape.

Features of TS1C bellows coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Spring action bellows configuration absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Clamp type

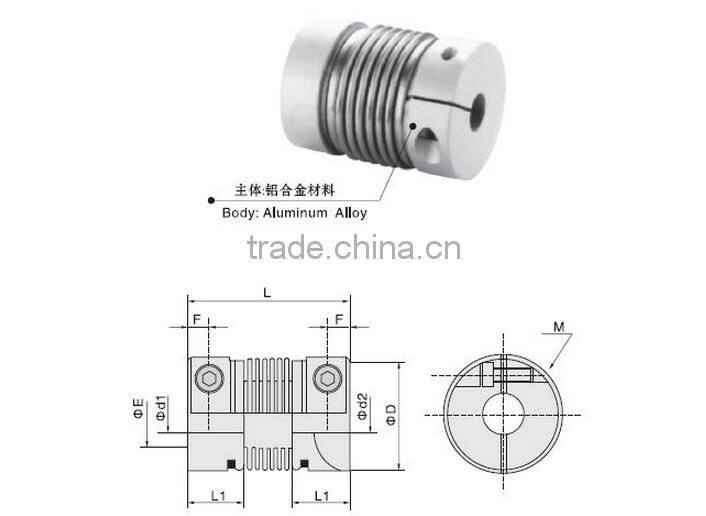

Model

Φ d1Φd2
Bore diameter

ΦD

L

L1

F

E

M

Wrench Torque
(N·m)

TS1C-16

4 5 6
6.35 8

16

30

10.5

4.0

9.5

M3

0.7

TS1C-20

6 6.35 8
9.525 10 12

20

33

10.5

4.0

12.5

M3

0.7

TS1C-25

6 6.35 8
9.525 10 12

25

38

12.5

5.0

15

M4

1.7

TS1C-32

8 9.525
10 12 14

32

43

14.0

6.0

21

M4

1.7

TS1C-32L

8 9.525
10 12 14

32

54

14.0

6.0

21

M4

1.7

TS1C-40

10 11 12
14 15 16

40

62

21.5

6.5

27

M5

4

TS1C-55

12 14 15
16 19

55

72

23.0

7.0

40

M6

8

TS1C-65

18 19 20 24 25
28 30 32 35 38

65

81

25.5

9.0

45

M8

15

TS1C-82

20 24 25 28 30
32 35 38 40 42

80

103

34.5

11.0

56

M10

28



Model

Rated Torque
(N·m)

Max.Torque
(N·m)

Max.Rotational Frequency
(rpm)

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Axial misalignment
mm

Mass
g

TS1C-16

0.8

1.6

18000

3.4×10-7

100

0.10

1.5

+0.3
-1.0

8

TS1C-20

1.5

3.0

13000

8.9×10-7

160

0.10

1.5

+0.3
-1.0

14

TS1C-25

2.0

4.0

11000

2.8×10-6

220

0.10

1.5

+0.5
-1.3

32

TS1C-32

2.5

5.0

10000

8.8×10-6

310

0.15

2.0

+0.5
-1.3

52

TS1C-32L

2.5

5.0

10000

8.9×10-6

310

0.20

2.0

+0.5
-1.3

58

TS1C-40

10.0

20.0

8000

1.5×10-5

520

0.20

2.0

+0.7
-1.5

98

TS1C-55

25.0

50.0

6000

2.8×10-5

850

0.20

2.0

+0.7
-1.5

200

TS1C-65

60.0

120.0

4500

2.3×10-5

960

0.20

2.0

+0.7
-1.5

350

TS1C-82

80.0

160.0

4000

6.0×10-5

1290

0.20

2.0

+0.7
-1.5

750
