Home > Industrial Equipment & Components > Power Transmission Parts > Shaft Coupling > TS6 Setscrew Type Oldham Coupling

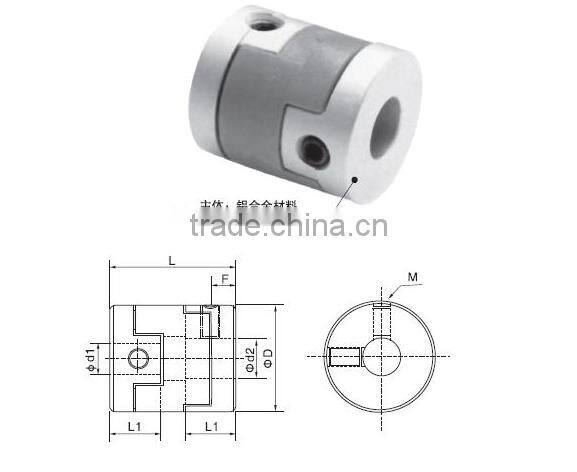

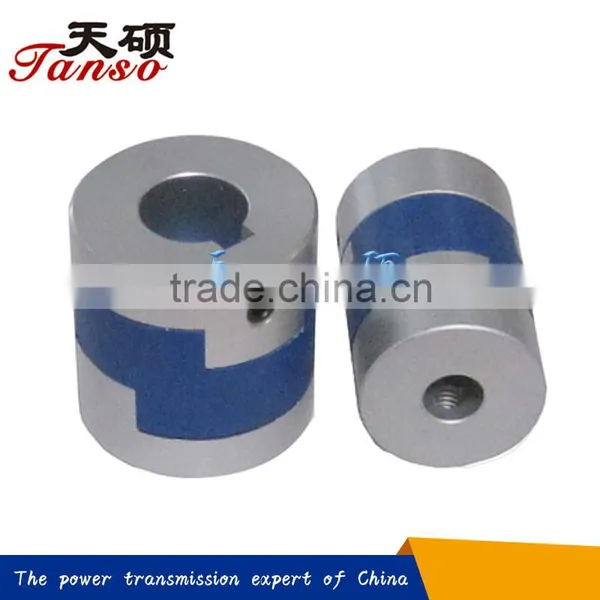

TS6 Setscrew Type Oldham Coupling

Name: TS6 Setscrew Type Oldham Coupling
Brand: Tanso
SKU: 114577017
Availability: InStock

TS6 Setscrew Type Oldham Coupling thumbnail-1

TS6 Setscrew Type Oldham Coupling photo-1

US$ 10 - 200 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Structure:

Oldham

Flexible or Rigid:

Flexible

Standard or Nonstandard:

Standard

Contact Supplier Request Quote Chat Now

Cangzhou Tanso Coupling Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Structure Oldham

Flexible or Rigid Flexible

Standard or Nonstandard Standard

Material Steel

Brand Name Tanso

Place of Origin Hebei, China

Model Number TS6

An Oldham coupling has three discs, one coupled to the input, one coupled to the output, and a middle disc that is joined to the first two by tongue and groove. The tongue and groove on one side is perpendicular to the tongue and groove on the other. The middle disc rotates around its center at the same speed as the input and output shafts. Its center traces a circular orbit, twice per rotation, around the midpoint between input and output shafts. Often springs are used to reduce backlash of the mechanism. An advantage to this type of coupling, as compared to two universal joints, is its compact size. The coupler is named for John Oldham who invented it in Ireland, in 1821, to solve a paddle placement problem in a paddle steamer design.

Features of TS6 oldham coupling:

1.Allows high parallel and angular misalignments

2.Zero backlash

3.High torsional stiffness and response

4.Simple configuration enable ease of assembly

5.Setscrew type
