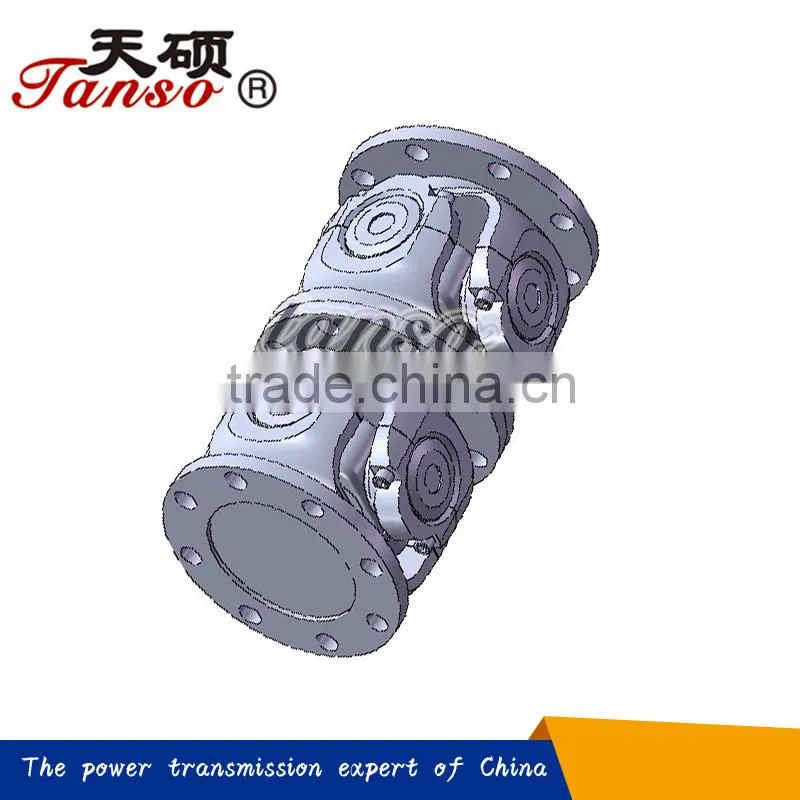

Help CenterSWP-C Ttpe Welding Cardan Shaft
Related Products
Selection and use of cardan shafts
Cardan shafts being used for various applications. So it is impossible to select their size and predict their lifetime with reliable accuracy with just one general rule. The familiar failure probabilities for roller bearings apply to cardan shafts as well.
The size of the cardan shaft should be chosen so that its maximum momentary torque rating, is not smaller than the maximum torque to be transmitted in your application. Additionally parameters like deflection angle, speed, length, operating conditions (kind of drive, temperature, dust etc.) should be considered. Therefore please refer to our technical questionnaire. Our experts will evaluate your information given in this questionnaire, to find the best choice for your application. If you need more detailed calculations like determining lifetime, stability etc. please contact us.
Installation instructions
All anti- corrosion paint should be removed carefully from the cardan shaft flanges before the shaft is installed. Anti- corrosion agent on the cardan mounting flanges reduces frictional adhesion (not with flange yokes with staggered tooth arrangement).
Cardan shaft maintenance
It is necessary to grease the moving parts of a cardan shaft at certain intervals to remove used lubricant and foreign matter, if any, and replenishing the lubricant.
Lubrication is required after cleaning with high pressure or a steam jet.

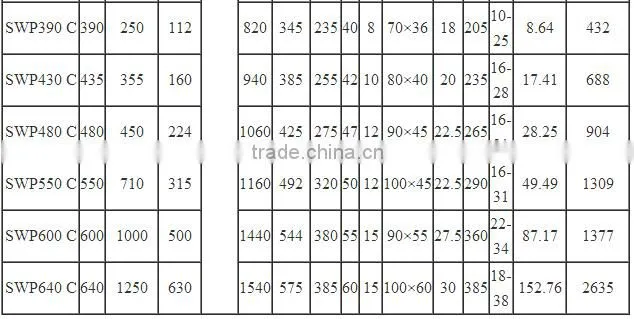

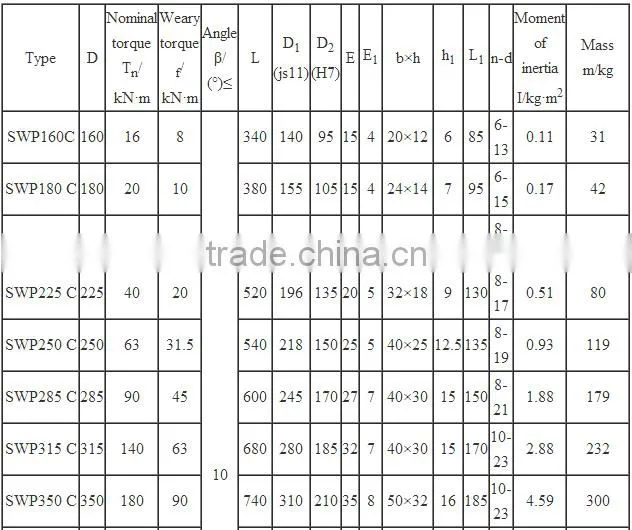

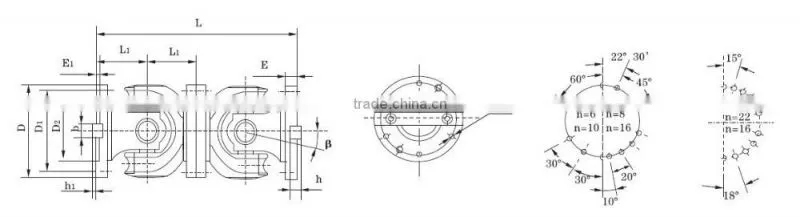

Features of SWP series cardan shaft:
1.Gyration diameter:160~640mm
2.Nominal torque:16~1250KN*m
3.Max angular misalignment: 10o
4.Reasonable configuration,high safety and long service life
5.High transmission efficiecy:98.6%
