Help CenterTapered Grid Coupling
Related Products
Specifications

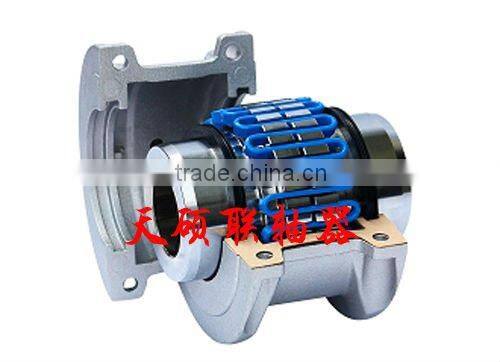

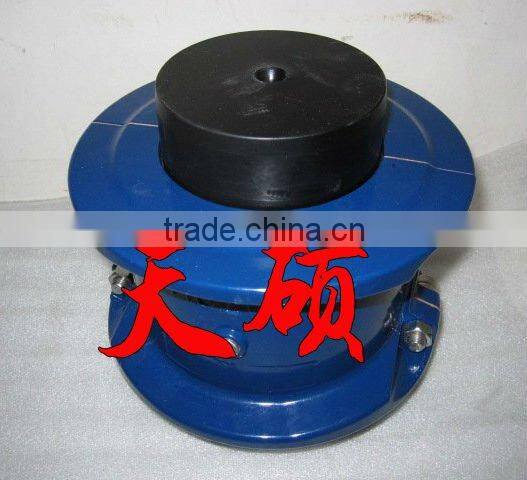

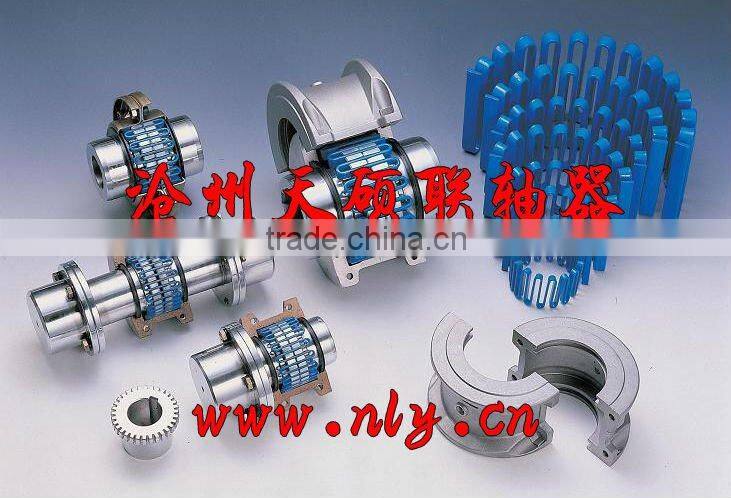

he steel tapered grid coupling is similar in nature to a steel gear couplingGrid couplings use two slotted hubs with a steel grid running between them to transmit torque. The coupling flexes by allowing the grid to slide along the slots in the hubs. Grid couplings can only accommodate 1/3° misalignment and transmit torque from 422 in-lbs to 2,700,000 in-lb (3,656,555 Nm).

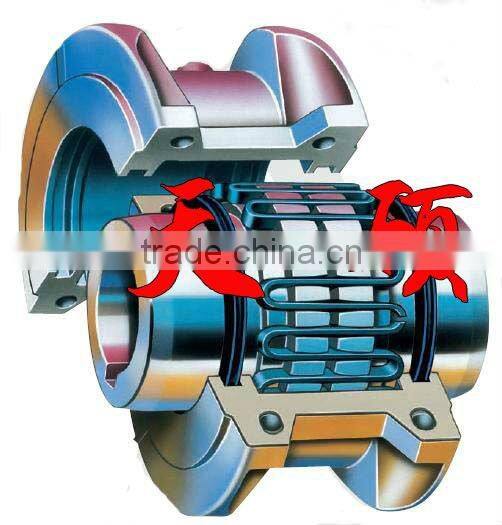

The steel tapered grid coupling is similar in nature to a steel gear coupling, except the connecting sleeve is replaced by a flexible chrome-vanadium alloy leaf spring grid. The steel hubs are cut with profiled slots, allowing the grid to engage circumferentially. The grid "springs" deflect under torque, distributing the peak torque load over a large angle of rotation. The inherent property of torsional softness allows the coupling to absorb shock loads.
