Specifications

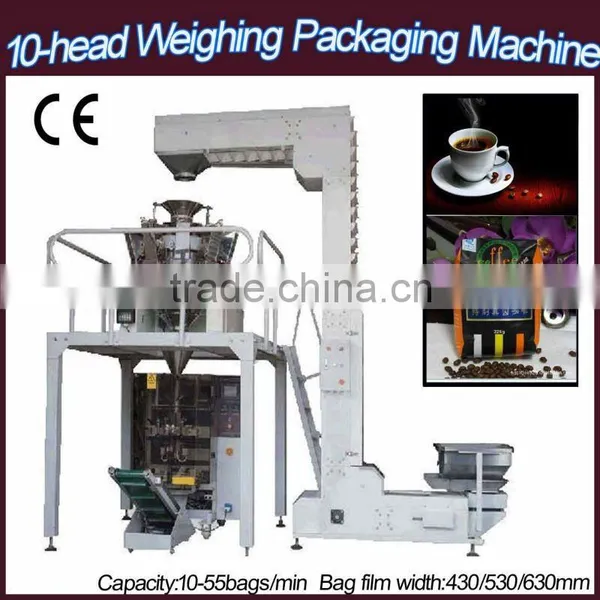

weighing packing machineIt has an extensive range of package, suitable for packing of each kind of item such as grains, blocks
GRANULE PACKAGING MACHINE

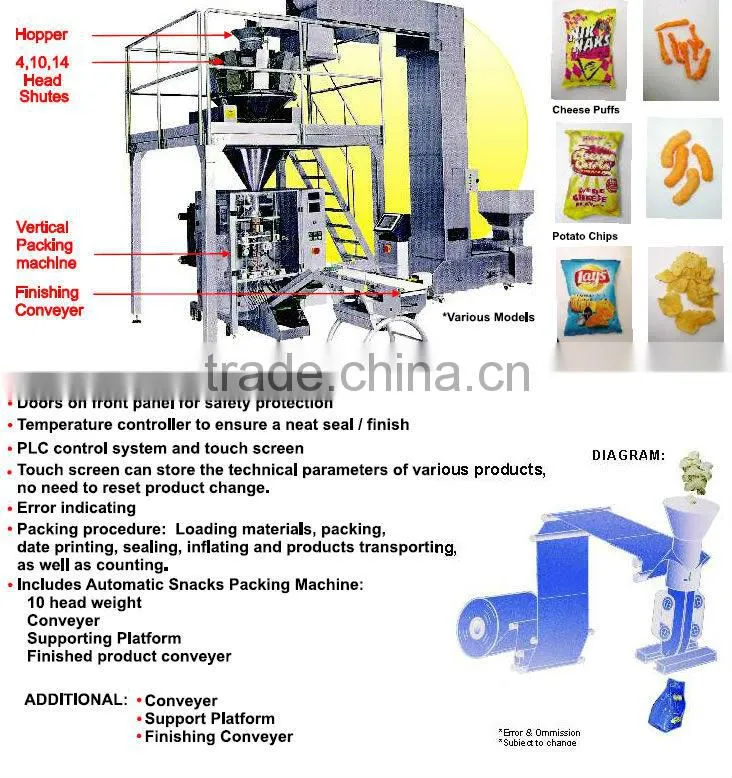

1. The whole system including:
DXD-5000 main packaging machine
Four-head weighing machine
Z type material conveyer/loader
Vibration feeder
Supporting platform
Finished products conveyer
2. Specification:
Capacity: 15-30 bags/min
Power: 8 KW
Pressure air consumption: 0.6-0.8Mpa, not less than 1 cbm/min.
3. Introduction of each part:
3.1.DXD-5000
l Features
*Advanced design for complete machine, reasonable structure, convenient adjusting operation and maintenance;
* standard positioning with servo film transporting system; stable for transporting film with two synchronous belts;
* high automatization with auto correction function;* minimize the consumption with multiple kinds of auto warning protection functio
* supported by metric device, the machine can automatically complete all packing processes from measuring, feeding, filling,
l Range of configuration
* The machine can be supported by auto weighing machine, meter glass dosing machine, manual batch conveyor and spiral dosing machine. It has an extensive range of package, suitable for packing of each kind of item such as grains, blocks, bars and powder, etc.
l Technical parameter
Items Content
Packing speed 10-50 bag/min
Bag size (L)100-450mm (W)100-350mm
Bag making mode Pillow-type bag, standing bag, punching device
Range of measuring 5000ml(max)
The maximum width of packing film 400mm(diameter)
Air consumption 0.6Mpa300L/min
Main power/voltage 4KW/220V
Dimension (L)1430×(W)1300×(H)1800mm
The weight of switchboard 680kg
