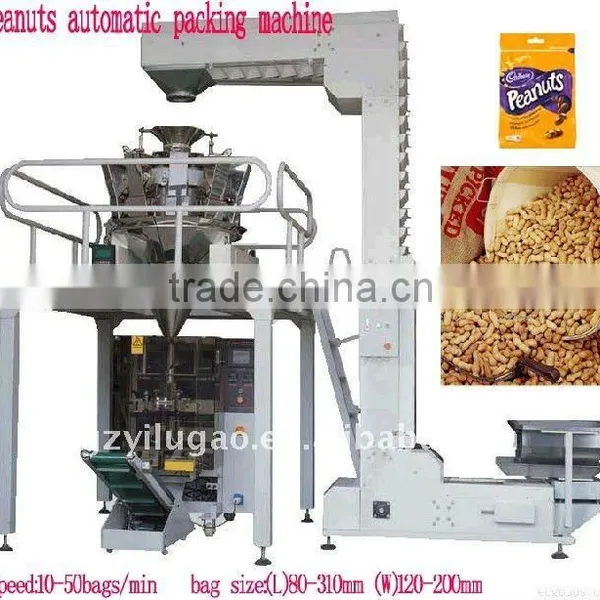

Help CenterLagrge Dosage Granule Packing Machine / Peanuts Packing Machine
Related Products
-
Granules Packing MachineUS$ 16,000 - 20,000MOQ: 1 Set -
Chili Powder Packing Machine, Powder Filling MachineUS$ 15,000 - 25,000MOQ: 1 Set
-
Beans Packing Machine, Nuts Pouch Packaging MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Multi-head Granule Packing MachineNegotiableMOQ: 1 Set
-
Large Dosage Granule Packing MachineNegotiableMOQ: 1 Piece
Specification
Capacity: 15-30 bags/min
Power: 8 KW
Pressure air consumption: 0.6-0.8Mpa, not less than 1 cbm/min.

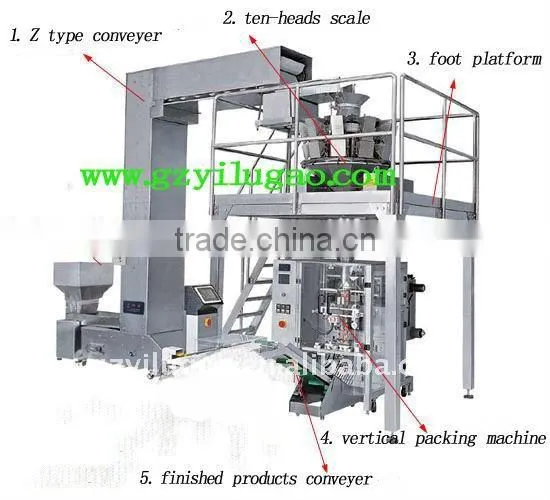

3. Introduction of each part
3.1.DXD-1080
l Features
*Advanced design for complete machine, reasonable structure, convenient adjusting operation and maintenance;
* standard positioning with servo film transporting system; stable for transporting film with two synchronous belts;
* high automatization with auto correction function;* minimize the consumption with multiple kinds of auto warning protection functio
* supported by metric device, the machine can automatically complete all packing processes from measuring, feeding, filling,
l Range of configuration
* The machine can be supported by auto weighing machine, meter glass dosing machine, manual batch conveyor and spiral dosing machine. It has an extensive range of package, suitable for packing of each kind of item such as grains, blocks, bars and powder, etc.
l Technical parameter
Items Content
Packing speed 10-50 bag/min
Bag size (L)100-450mm (W)100-350mm
Bag making mode Pillow-type bag, standing bag, punching device
Range of measuring 5000ml(max)
The maximum width of packing film 400mm(diameter)
Air consumption 0.6Mpa300L/min
Main power/voltage 4KW/220V
Dimension (L)1430×(W)1300×(H)1800mm
The weight of switchboard 680kg
3.2 Features of ten-heads scale
l Features
* Suitable range: dosing and weighing of grain, chip, bar or irregular shaped material such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.
* Select the best combination immediately from diversified weight combinations through computer with perfect combination of high precision and high speed.
* High precision data-type weighing sensor realizes precise weighing.
* Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.
* IP65 grade water-proof and dust-proof design. It's clean and sanitary with all stainless steel parts. Full sealed design prevents accumulation of material and facilitates cleaning.
* It can fine the opening and closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.
* With powerful digital automatic counting function, it can record the index for each batch of product such as total bag number, pass rate and difference of single bag, etc.
* Optional devices: triglyph balance ball, suction hopper, printing device, tolerance sorting device.
* Strong compatibility and more compact structure with it directly installed on the upper part of packing machine.
* Fast return for investment by largely saving large quantity of raw material and labour cost.
* Net weight: 300kg; Gross weight: 370kg
* Voltage: 220V; Power: 1500W; Frequency: 50/60HZ; Rated current: 9A.
* Out package dimension(mm) 1400(L)×1130(W)×1120(H):
Specification:
Capacity: 15-30 bags/min
Power: 8 KW
Pressure air consumption: 0.6-0.8Mpa, not less than 1 cbm/min.
