Nylon Ring Gear Coupling

Nylon Ring Gear Coupling thumbnail-1
Nylon Ring Gear Coupling photo-1
US$ 7 - 20 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Structure:
Gear
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Cangzhou Tanso Coupling Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Gear
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Steel
Brand Name Tanso
Place of Origin Hebei, China
Model Number NL/TGL

nylon ring gear couplingNylon gear flexible coupling is the latest product,it has been using by abroad,and it is designed by mechanical committee of Jinan Casting forging machinery institute.

Features of NL gear coupling:

1.Absorb parallel,angular and axial misalignments

2.Simple assembly and disassembly

3.Easy maintenance and low noise

4.High tansmission efficiency

5.Long service life

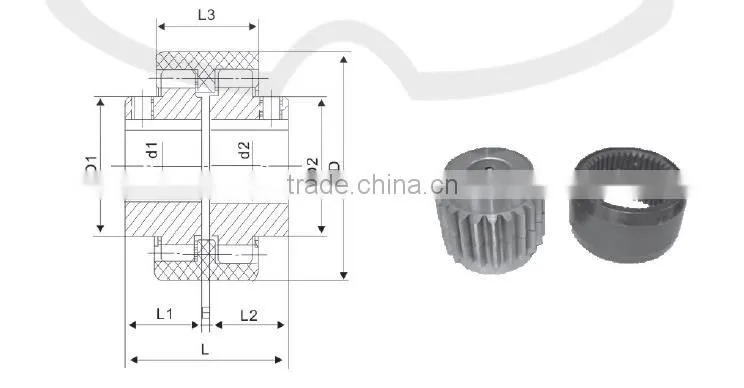

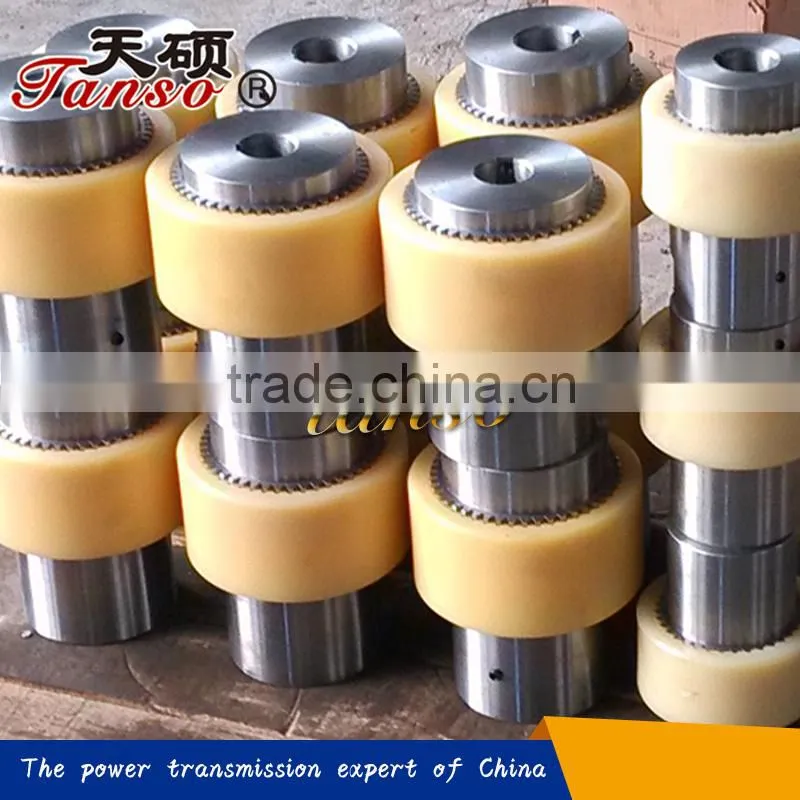

This is nylon ring gear  coupling (nylon sleeve coupling).

nylon ring gear coupling





Tn (N.M)

n (r/min)

 (mm)



(KgC m 2 )



(Kg )

d1 d2


L 1 L 2

 L D

D1

D2

 E L3 (mm) (mm) α°
NL1 40 6000 6 8 10

16 20

25 32

37 45

55 69

40

 26 4 34 2 ±0.3 1° 0.25 0.85
12 14
NL2 100 6000 10 12 14 22

25 32

42 52

57 71

91 111

42

 36 4 40 2 ±0.4 1° 0.92 1.7
16 18 20 24
NL3 160 6000 20 22 24 52 62

113

133

66

 44 4 46 2 ±0.4 1° 3.10 2.6
25 28
NL4 250 6000 28 30 32 62 82

129

169

83

 58 4 48 2 ±0.4 1° 8.69 3.6
35 38
NL5 315 5000 32 35 38 82 112

169

229

93

 68 4 50 3 ±0.4 2° 14.28 5.5
40 42
NL6 400 5000 40 42 45 82 112

230

100

 68 4 52 3 ±0.4 2° 18.34 6.8
48
NL7 630 3600 45 48 50 82 112

229

115

 80 4 60 3 ±0.6 2° 56.5 9.8
55
NL8 1250 3600 48 50 55 112 142

229

289

140

 96 4 72 3 ±0.6 2° 98.55 26.5
60 63 65
NL9 2000 2000 60 63 65 142 172

295

351

175

 124 6 93 4 ±0.7 2° 370.5 37.6
70 71 75 80
NL10 3150 1800 70 71 75 80

142 172

212

292 352

432

220

 157 8 110 4 ±0.7 2° 1156.8 55

.
