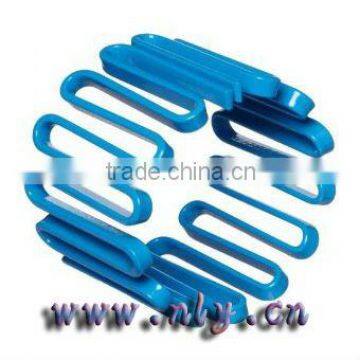

Falk SteelFlex Coupling Grid
- xingang
You May Like
Product Details
| Structure | Universal | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Nonstandard | Material | Steel | |
| Brand Name | Tanso | Place of Origin | Zhejiang, China | |
| Model Number | JS |
Product Description
Specifications
grid coupling use two slotted hubs with a steel grid running between them
Tapered Grid Coupling
The steel tapered grid coupling is similar in nature to a steel gear coupling, except the connecting sleeve is replaced by a flexible chrome-vanadium alloy leaf spring grid. The steel hubs are cut with profiled slots, allowing the grid to engage circumferentially. The grid "springs" deflect under torque, distributing the peak torque load over a large angle of rotation. The inherent property of torsional softness allows the coupling to absorb shock loads.
grid coupling,it is a kind of metal elastic rigidity coupling with advanced structure
,composed by 2 half coupling,2 half outer casing housing,2 sea; rings and snake springs.
Snake spring are embedded on axial into 2 half coupling a lveolus,so that connection between drive and drive shaft comes true.The axial power from drive end working on tooth flanks drive the driven end,so torques can be transferred,at the same time,reasonance phenomenon avoided on large degree.At the same time,the machinery system can get well vibration reduction by elastic deformation of springs when torquue is being transferred;vibration reduction can reach to 36% on average.
This kind coupling useful life is longer than other no-metal elastic part couplings.
High transfer efficiency and safety starting.
Available coupling:
1)Chain coupling
2)Gird coupling
3)HRC coupling
4)Jaw coupling
5)Rigid coupling
6)FCL coupling/pin push coupling
7)Tyre coupling
8)Gear coupling
9)Nylon sleeve coupling
10)Disc coupling
11)universal coupling
12)Rotex type coupling
13)Bowex type coupling
14)Flexible coupling
Kindly contact us if you need our help.
